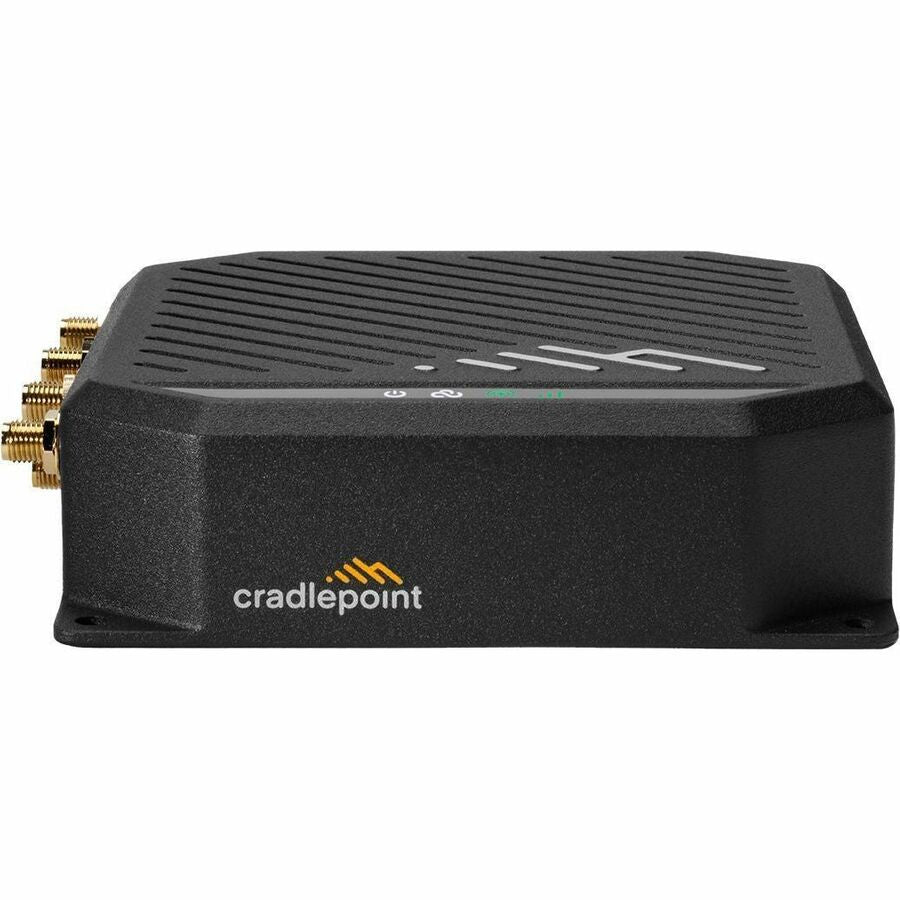

Cradlepoint S700 Semi-Ruggedized 4G LTE IoT Router, TB03-0700C4D-NN

CradlePoint Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet, Cellular Modem/Wireless Router

The Cradlepoint S700 Series semi-ruggedized IoT router, part number TB03-0700C4D-NN, provides secure, cloud-managed 4G LTE connectivity for light industrial, portable, embedded, and fixed applications. Designed for deployments such as surveillance cameras, digital signage, oil and gas monitoring, and parallel networking, the S700 combines cellular, wired Ethernet, Wi-Fi, and USB connectivity in a compact aluminum housing. Its DIN rail-mountable design supports flexible installation in field, building, and embedded environments.

When paired with Cradlepoint NetCloud Service for IoT, the S700 delivers centralized management, visibility, security, and control for networks ranging from hundreds to thousands of connected routers. Administrators can apply policies, monitor device status, review analytics, troubleshoot remotely, and manage firmware and software updates through cloud-based dashboards. Support for in-band and out-of-band management helps simplify deployment and maintenance, while integrations such as Microsoft Azure IoT Central extend operational visibility and automation.

The S700 supports encrypted routing services for demanding network applications, including DMVPN, IPsec, GRE, and other VPN tunneling technologies. Cradlepoint NetCloud Exchange Secure Connect and zero trust network access capabilities help protect routers and connected IoT devices with encrypted micro-networks and policy-based access controls. Authorized users and third parties can securely access approved devices for monitoring and maintenance without exposing unnecessary network resources.

This Cradlepoint S700 package includes the router, GPIO and power cable, 12 VDC power supply, two cellular antennas, and two Wi-Fi antennas. The aluminum enclosure and IP30-rated design support reliable operation in light industrial environments, while the portable form factor enables fast wireless connectivity where wired infrastructure is limited. The router is backed by a lifetime limited warranty when used with eligible active NetCloud IoT service coverage.

Features:

• Cloud-managed 4G LTE IoT router for light industrial, portable, embedded, and fixed deployments
• Semi-ruggedized aluminum housing with IP30 protection and DIN rail mounting support
• Gigabit Ethernet port for high-speed wired networking
• Dual-band Wi-Fi connectivity for wireless devices and local network access
• Built-in USB port for connecting compatible USB-enabled devices
• VPN tunneling support including DMVPN, IPsec, and GRE
• NetCloud management with policies, analytics, diagnostics, reporting, and firmware updates
• Zero trust security capabilities with encrypted tunnels and controlled remote access
• Includes GPIO and power cable, 12 VDC power supply, cellular antennas, and Wi-Fi antennas
• Lifetime limited warranty with eligible active NetCloud IoT service coverage
