D-Link DSS-200G Ethernet Switch with PoE and Surveillance Support

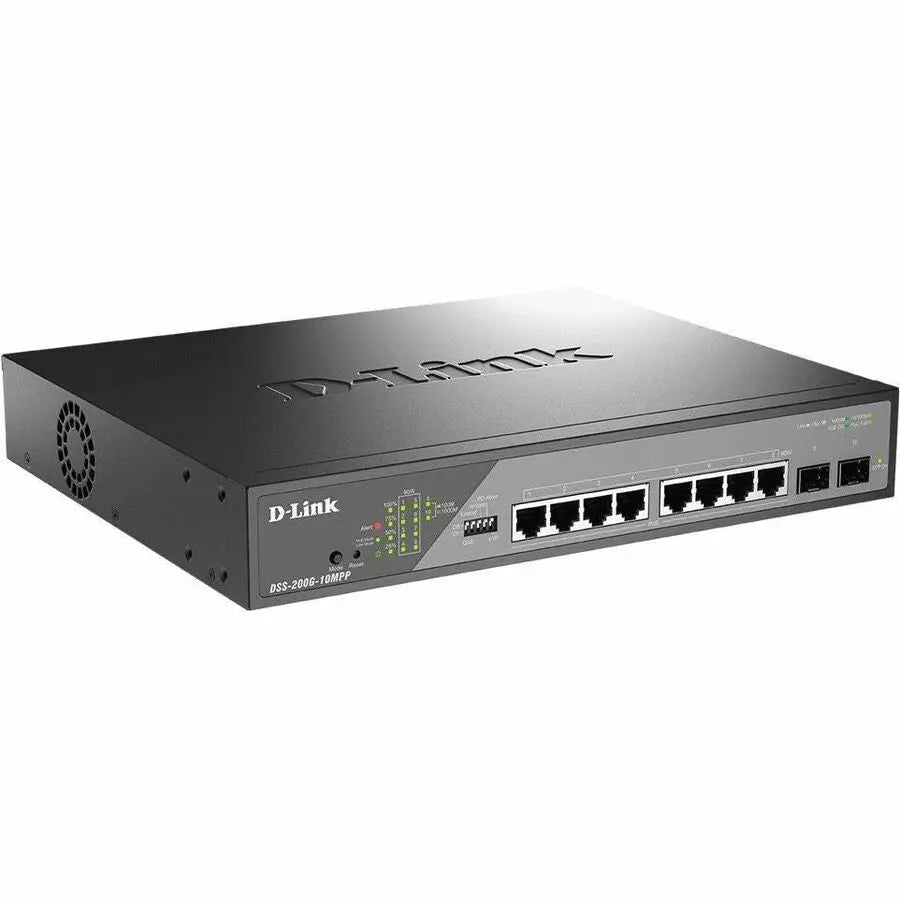

The D-Link DSS-200G Ethernet Switch is a versatile networking solution designed to meet the demanding surveillance and data networking needs of small to enterprise-level businesses. It features high PoE budgets supporting IEEE 802.3bt 90 W PoE, enabling the powering of multiple high-powered IP cameras and devices without the need for additional power sources. Built with 6 kV surge protection on all PoE ports, this switch ensures reliable operation even in environments prone to electrical disturbances, making it ideal for critical surveillance deployments. The fiber uplink ports facilitate seamless connection to Network Video Recorders (NVRs) or Central Management Systems (CMS), providing a robust backbone for your surveillance infrastructure. The inclusion of an alarm port and four-stage PoE usage indicator lights helps with monitoring and troubleshooting, while the fanless design ensures silent operation suitable for various installation environments.

Deploying the DSS-200G is straightforward thanks to its automatic configuration features and intuitive web interface. During setup, users can select between standard and surveillance modes, customize IP address allocation via DHCP or static settings, and enable essential network security features such as DHCP Snooping and Loop Detection. The switch's surveillance traffic optimization feature automatically detects ONVIF-compatible devices and segments their traffic into a dedicated Surveillance VLAN, prioritizing video data and reducing latency or video freezing issues during live streams. This capability streamlines network management by consolidating surveillance and data traffic on a single switch, reducing hardware costs and maintenance overhead.

The redesigned web interface combines monitoring, management, and troubleshooting tools into a single, user-friendly platform. It provides a comprehensive network overview, device detection, and detailed health diagnostics, allowing administrators to monitor network performance proactively. Support for G.8032 ERPS ensures network resiliency and redundancy, critical for maintaining continuous surveillance coverage. The switch also offers a client-based utility or web-based GUI for flexible management options and includes a built-in SNMP MIB for integration with network management systems. Its rack-mountable form factor makes it suitable for standard 1U rack installations, with included brackets for easy setup. Overall, the D-Link DSS-200G Ethernet Switch delivers a reliable, energy-efficient, and scalable platform for advanced IP surveillance networks and high-performance data connectivity.

Features:

• High PoE budgets and support for IEEE 802.3bt 90 W PoE (DSS-200G-MPP Series)

• 6 kV surge protection on all PoE ports

• Fiber uplink ports for connection to a NVR or CMS center

• Alarm Port and four-stage PoE usage indicator light

• Fanless design (DSS-200G-10MP) for silent operation

• Easy deployment with automatic configuration and setup wizard

• Surveillance traffic optimization with auto-detect ONVIF devices

• Intuitive web interface for monitoring and management

• Descriptive health diagnostics for network troubleshooting

• Support for Surveillance VLAN for traffic segmentation

• G.8032 ERPS for network redundancy and resiliency

• Client-based utility or web-based GUI for management flexibility

• Built-in SNMP MIB for network management integration

• Status Dashboard for real-time network insights

• Working Mode selection via DIP Switch for flexible operation
