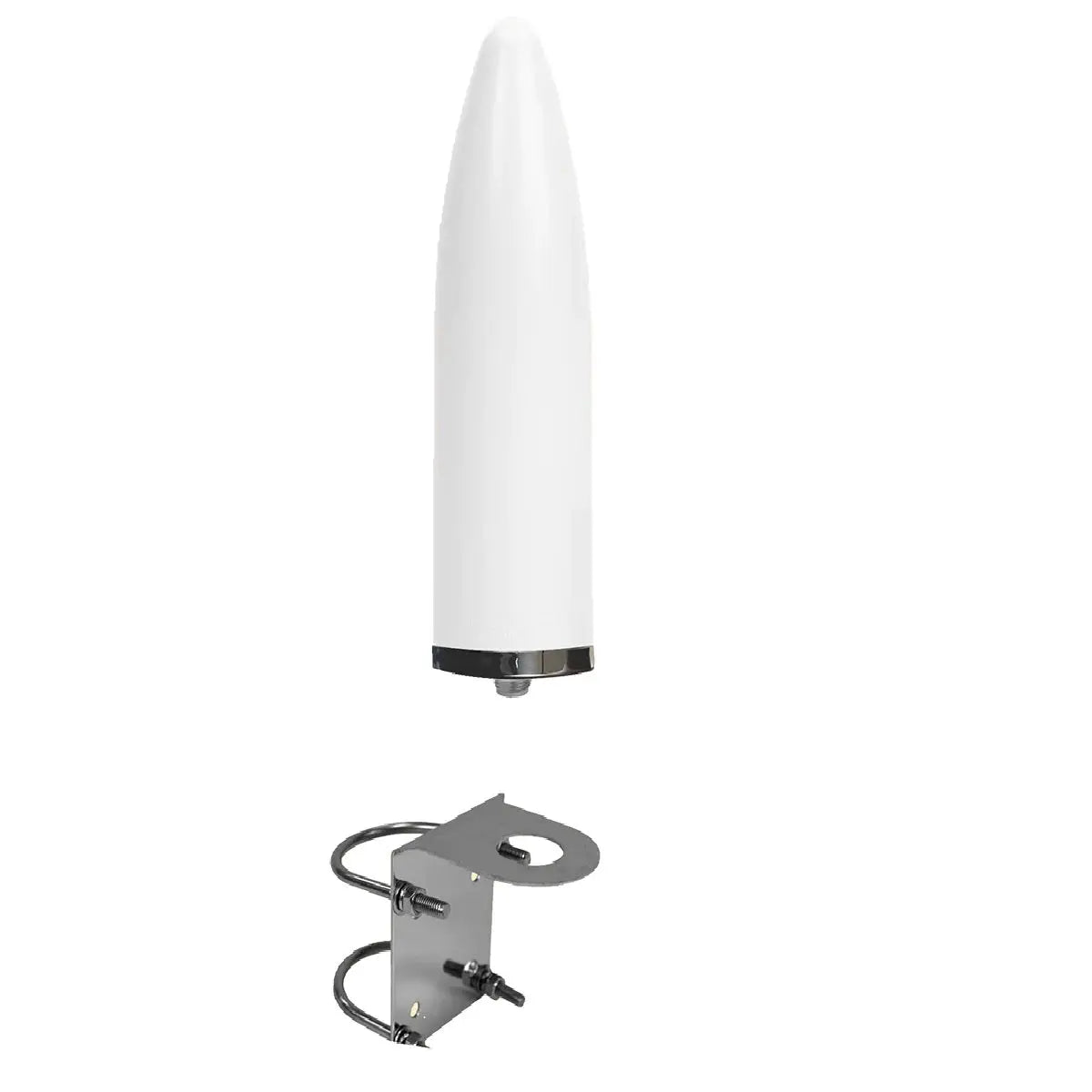

Digital 1673PW Wideband Cellular 4G/5G/LTE/WiFi Antenna 9dBi L-Bracket

Digital 1673PW Wideband Cellular 4G/5G/LTE/WiFi Antenna Overview

Digital 1673PW Wideband Cellular 4G/5G/LTE/WiFi Antenna 9dBi L-Bracket

Digital Antenna 1673-PW Omni-Directional 600-3000MHZ 4G/5G/LTE/WiFi Bullet Antenna with L-Bracket

Model: 1673-PW

• Maximum power for 4G, 5G, WiFi signals
• 9dBi omni-directional gain
• Rugged UV stable polyurethane finish
• Foam filled to withstand extreme vibrations
• 316 stainless steel base
• Includes L-Bracket mount
• Weatherproof N female connector
• 5 year warranty

Digital Antenna's NEW omni-directional, bullet shaped antenna with stainless steel base provides excellent performance from 695-3000 MHz and is ideal for mobile or fixed locations.

High gain 9dBi bullet antenna designed and manufactured in USA by Digital Antenna, greatly
improves signal strength providing maximum signal range. The new design includes a rugged stainless steel base.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways.

Specifications

Radiation PatternOmni-Directional

Bandwidth
VSWR (in 3G, 4G, 5G bands): <1.5: 1 = 695-3000 MHZ,
VSWR: <1.8: 1 = 695-3000 MHZ

Gain
9dBi

Cable
Not included

Impedance
50 ohms

Max Input Power
50 watts

Exterior Finish
White polyurethane high gloss UV stable

Dimensions
8.875 L x 2.375 in OD (225 x 60 mm

Weight
15 oz

RF Connector
N type female

Installation
Raised Stainless steel deck mount

Elements
Copper - Hand soldered

Polarization
Vertical

Wind Rating
>160KPH

Operating Temp
30o F to +175o F

What's in the Box:

• 1673-PW Antenna
• L-Bracket mount
"

Advanced Wideband Cellular Connectivity

The Digital 1673PW antenna is engineered to deliver exceptional wideband cellular performance supporting 4G, 5G, LTE, and WiFi networks. With a 9dBi gain, this antenna enhances signal reception and transmission, ensuring reliable and faster wireless communication. Ideal for both indoor and outdoor applications, it efficiently covers multiple frequency bands, reducing dropouts and boosting your connectivity range. The Digital 1673PW meets the needs of modern network users, providing seamless streaming, browsing, and communication without interruption.

Durable L-Bracket Design for Easy Installation

Designed with a sturdy L-bracket mount, the Digital 1673PW offers flexible installation options on various surfaces, including walls and poles. This bracket allows the antenna to be securely fixed in an optimal position for maximum signal capture. Constructed with robust materials, it withstands harsh environmental conditions such as wind, rain, and UV exposure, making it suitable for outdoor deployment. The easy-to-mount design simplifies setup, saving time and reducing installation complexities for both professionals and DIY users.

Compatibility and Versatile Usage

The Digital 1673PW antenna supports a wide range of network devices, including routers, modems, and gateways operating on 4G, 5G, LTE, and WiFi frequencies. Its versatile compatibility ensures seamless integration into different systems, enhancing network capacity and speed. Whether used for home, office, or industrial applications, this antenna boosts signal quality and overall network efficiency. Its reliable performance helps reduce latency and improve data throughput, making it an excellent choice for mission-critical communication setups.
