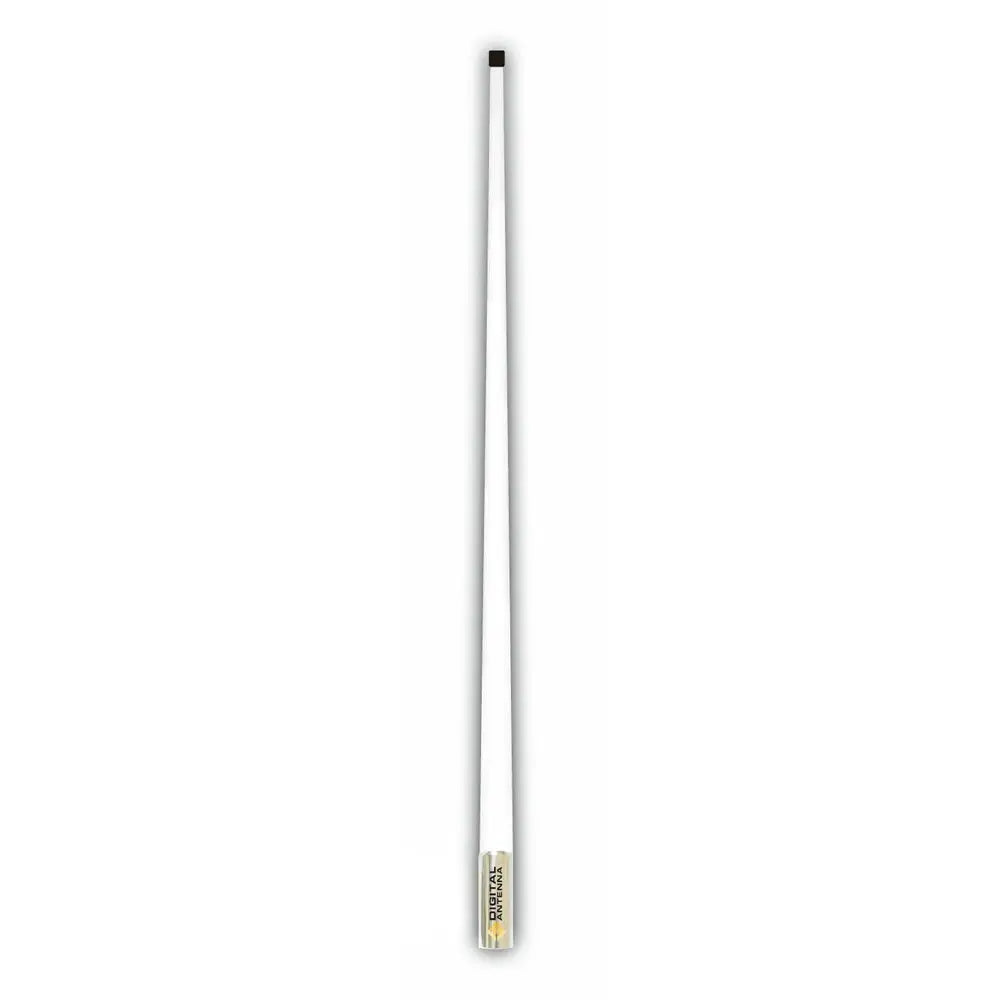

Digital Antenna 528-VW 4ft White VHF Marine Antenna for Small Boats and High-Speed Vessels

The Digital Antenna 528-VW is a highly regarded 4-foot VHF marine antenna designed for smaller boats, sailboats, and high-speed vessels. Voted the best by PowerBoat Reports, this antenna combines compact size with excellent performance to ensure reliable communication in various maritime environments. Its stainless steel ferrule offers durability and corrosion resistance, while the high-gloss urethane finish provides an attractive and weather-resistant exterior. Equipped with powerful brass radiators and soldered connections, the 528-VW delivers strong signal quality and longevity. The ferrite choke bead minimizes unwanted noise and interference, enhancing clarity during transmissions.

Included with the antenna is 15 feet of exclusive low-loss, UV-stable RG-8X marine cable, ensuring minimal signal loss over distance. The factory-installed mini-UHF connector simplifies installation, and the antenna mounts on a 1 in-14 threaded base, making it compatible with most marine mounting setups. The antenna supports a maximum input power of 250 watts and boasts a VSWR of 1.2:1 at 156.8 MHz, ensuring optimal signal transmission. Its bandwidth maintains a VSWR under 2.0:1 across 4 MHz, offering consistent performance across relevant frequencies.

For comprehensive communication solutions, the 528-VW pairs well with matching cellular antennas like the 563-CW or 563-CB, both 4 feet in length with 9dB gain, and AM/FM antennas such as the 531-AW and 531-AB. This versatility makes it suitable for a range of marine communication needs, providing clarity and range whether on coastal or inland waters. As with all marine electronics, please note the Prop 65 warning regarding potential health risks associated with certain materials used in manufacturing.

Features:

• Stainless steel ferrule for durability and corrosion resistance

• High-gloss urethane finish for weather resistance and aesthetic appeal

• Powerful brass radiators for strong signal transmission

• Soldered connections for reliable electrical performance

• Ferrite choke bead reduces interference and noise

• 15 feet of UV-stable, low-loss RG-8X marine cable included

• Factory-installed mini-UHF connector for easy installation

• Mounts on a 1 in-14 threaded base compatible with standard marine fittings

• Supports maximum input power of 250 Watts for high-performance use

• VSWR of 1.2:1 at 156.8 MHz ensures efficient signal transmission

• Bandwidth maintains VSWR < 2.0:1 across 4 MHz for consistent operation

• Compatible with matching cellular and AM/FM antennas for versatile communication
