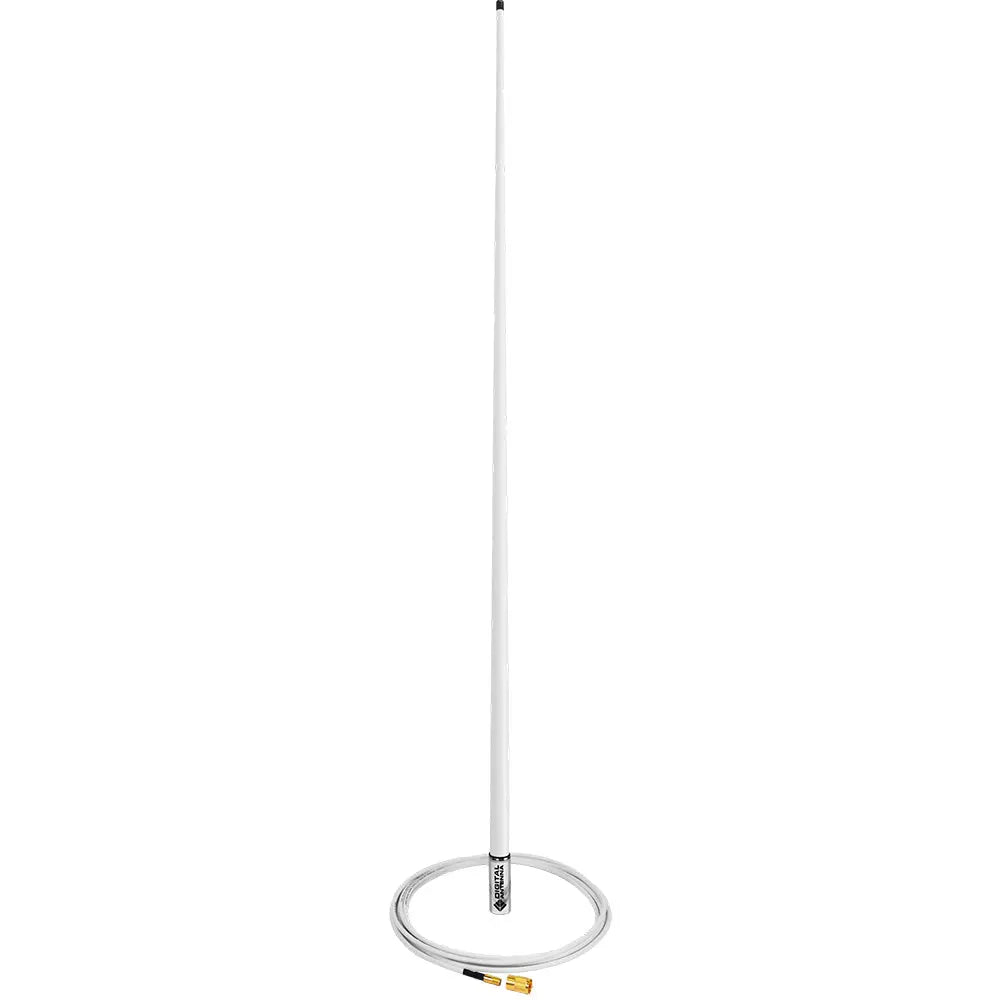

Digital Antenna 758-MW-S Multi-Band Marine Antenna with 6dBi Gain and 8' Length

758-MW-S 8 8 6dBi Gain Advanced Multi-Band Marine Antenna

Digital Antennas Model 758-MW-S is the first marine antenna designed for seamless multi-band communication, ensuring powerful signals across various frequency bands. Whether youre offshore, navigating busy harbors, or relying on emergency communication, this high-performance antenna delivers unmatched reliability.

Designed to withstand the rigors of offshore communication, the 758-MW-S sets a new standard in marine antenna technology, delivering unparalleled performance, longevity, and signal stability across critical frequency bands.

Features:

• Seamless multi-band operation on VHF, UHF, and 800/900 MHz frequencies
• 20 premium low-loss DA195 cable for maximum signal strength
• Factory-installed mini-UHF connector with PL259 adapter for quick and secure connection to the radio
• Marine-grade durability, featuring a 316 stainless steel ferrule for corrosion resistance
• UV-stable polyurethane-coated rod protects against harsh marine conditions
• 5-year manufacturer warranty, ensuring long-term reliability

Specifications:

• Radiation Pattern Omni-Directional: Gain 6dBi
• Frequencies: 134-176 MHz, 403-470 MHz, 450-512 MHz,851-870 MHz
• Cable: 20 Digital Antenna, exclusive low-loss DA195
• Impedance: 50 ohms
• Max Input Power: 50 watts
• Exterior Finish: White polyurethane high gloss UV stable
• Dimensions: 8 length x 1 OD taper
• Weight: 2.3 lbs.
• RF Connector: Mini-UHF female with included PL259 adapter
• Installation: 1x14tpi female threaded base
• Elements: Copper - Hand soldered
• Polarization: Vertical
• Wind Rating: >160KPH
• Operating Temp: 30 F to +175 F
• Attaches to 1 x 14 threaded base (not included)
• Factory-installed mini-UHF Connector PL259 adapter
• Use with all DMR radios using VHF, UHF Band 1, UHF Band 2, 800/900 MHZ
• Warranty: 5 Years

Applications:

• Commercial
• Recreational
• Government Vessels

The Digital Antenna 758-MW-S is a high-performance marine antenna designed for seamless multi-band communication, making it ideal for commercial, recreational, and government vessels. Its advanced engineering ensures reliable signal transmission across VHF, UHF, and 800/900 MHz frequency bands, providing consistent connectivity whether navigating busy harbors or offshore. Constructed with marine-grade materials, it features a durable 316 stainless steel ferrule for corrosion resistance and a UV-stable polyurethane-coated rod that withstands harsh marine environments. The antenna's omni-directional radiation pattern delivers a 6dBi gain, optimizing signal strength and coverage across all supported bands. Equipped with a factory-installed mini-UHF connector and PL259 adapter, installation is quick and secure, compatible with various radio systems, including all DMR radios using VHF, UHF, and 800/900 MHz bands. The included 20-foot low-loss DA195 cable maximizes signal integrity, ensuring clear communication even at extended ranges. Its robust design supports wind speeds over 100 mph, with an operating temperature range from 30°F to +175°F, suitable for diverse marine conditions. The 8-foot length offers versatile mounting options, and the antenna's construction elements are copper, hand-soldered for durability. With a 5-year manufacturer warranty, the Digital Antenna 758-MW-S guarantees long-term reliability and performance under demanding marine environments.

Features:

• Seamless multi-band operation across VHF, UHF, and 800/900 MHz frequencies

• 20-foot low-loss DA195 cable for maximum signal strength

• Factory-installed mini-UHF connector with PL259 adapter for quick setup

• Marine-grade durability with a 316 stainless steel ferrule for corrosion resistance

• UV-stable polyurethane-coated rod withstands harsh marine conditions

• Omni-directional radiation pattern with 6dBi gain

• Supports wind speeds over 100 mph

• Operates effectively within temperatures from 30°F to +175°F

• Designed for easy installation on 1/4-20 threaded bases

• Suitable for commercial, recreational, and government vessels
