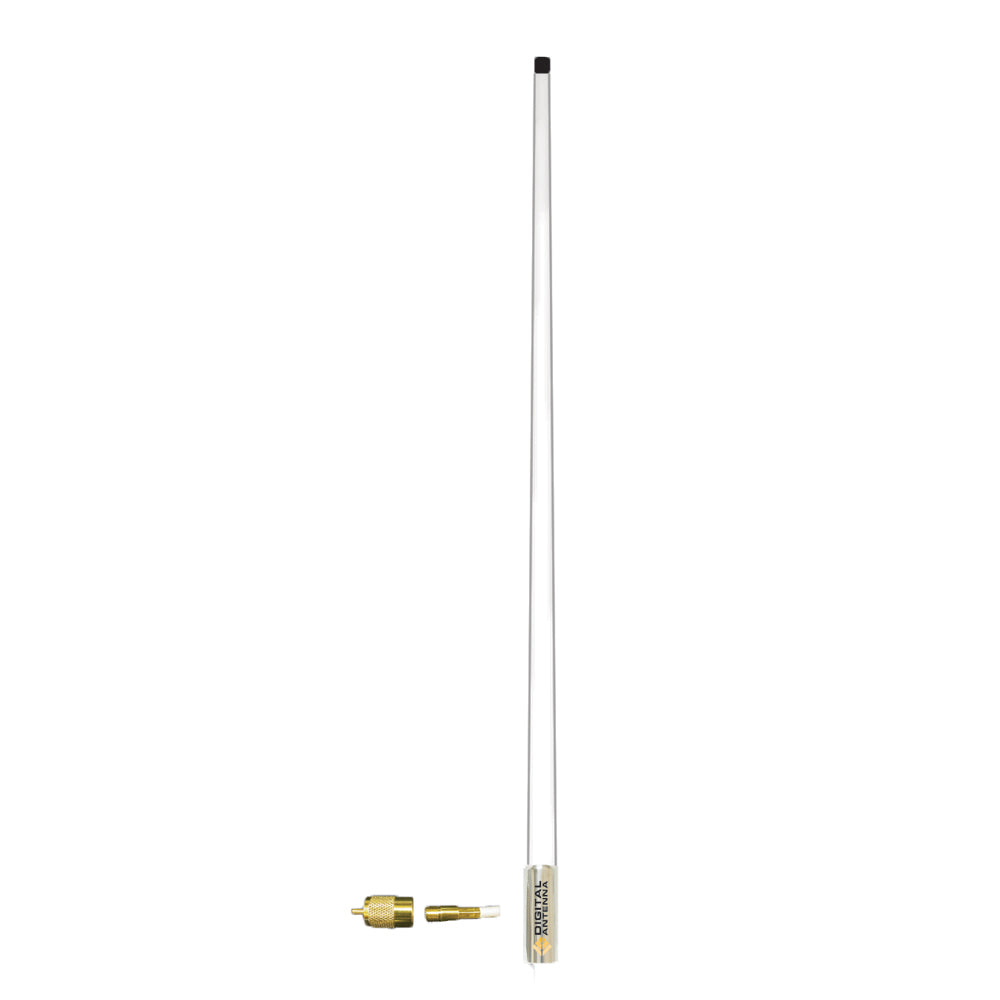

Digital Antenna 8' Wide Band VHF Marine Antenna with 20' Cable, Part Number 992-MW-S

8' Wide Band Antenna with 20' Cable

Utilizing technology designed for military and commercial applications, Digital Antenna delivers our new, highly advanced 8' Wide Band VHF Antennas to the marine industry. These antennas provide tactical maritime users with a high-performance solution for broadband VHF communications.

Featuring a tremendous bandwidth of 134 to 176 MHz, a nominal 6dB gain, and the ability to withstand continuous RF power up to 150 watts, the new antennas facilitate high-quality communications across a normally hard-to-cover band. An exclusive patent-pending electrical design with an internal ground plane allows the antenna to maintain a low radiation pattern, resulting in exceptional communication capability over a wide bandwidth.

Designed to meet the militarys rigorous MIL-STD-810 environmental engineering testing, as well as typical marine standards for high seas applications, the 992-MW and 992-MB antennas, are built to endure environmentally harsh conditions. They are designed for use with a multitude of services including auxiliary civil services, 2-meter amateur radio band, VHF business band, multi-use radio service (MURS), 2-way land mobile, VHF marine radio, narrowband FM, VHF SATCOM, Automatic Identification System (AIS) and NOAA weather stations.

Digital Antennas quality components include a rugged hard-coated anodized finish over an aircraft-grade aluminum ferrule, soldered brass radiating elements, power directing ferrite choke bead, and high-gloss UV stable coating. Manufactured in the USA by skilled craftsmen, our antennas are hand tested and tuned to assure the highest possible performance, quality, and durability. Lifetime limited warranty.

Features:

• Broadband 134-176 MHz
• Withstands continuous RF power up to 150 watts
• Aircraft-grade aluminum ferrule
• Completely sealed
• High performance 6dB gain
• Sleek mono-color design
• Lifetime limited warranty
• Mount: Standard 114 threaded base
• Connector: Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter
• Cable: Includes 20 exclusive low-loss, tinned braid, foil shielded, UV stable DA195 Ultra-Flex marine cable

The Digital Antenna 8-foot Wide Band VHF Marine Antenna with 20-foot cable is engineered for reliable, high-performance communication in demanding maritime environments. Utilizing advanced technology originally designed for military and commercial applications, this antenna delivers exceptional broadband coverage from 134 to 176 MHz, making it suitable for a wide range of marine and land-based radio services. Its high gain of 6dB and ability to handle continuous RF power up to 150 watts ensure clear, strong signals even in challenging conditions. The innovative, patent-pending internal ground plane design helps maintain a low radiation pattern, optimizing coverage and minimizing interference for critical communication needs.

Features:

• Broadband 134-176 MHz for versatile communication capabilities

• Handles continuous RF power up to 150 watts for reliable operation

• Constructed with aircraft-grade aluminum ferrule for durability

• Fully sealed design to withstand harsh marine environments

• High performance 6dB gain for strong signal transmission

• Sleek monochrome appearance with UV-stable coating

• Includes standard 114 threaded mounting base for easy installation

• Factory-attached gold-plated mini-UHF female connector with PL259 adapter

• Supplied with 20 feet of low-loss, UV-stable DA195 Ultra-Flex marine cable with foil and braid shielding
