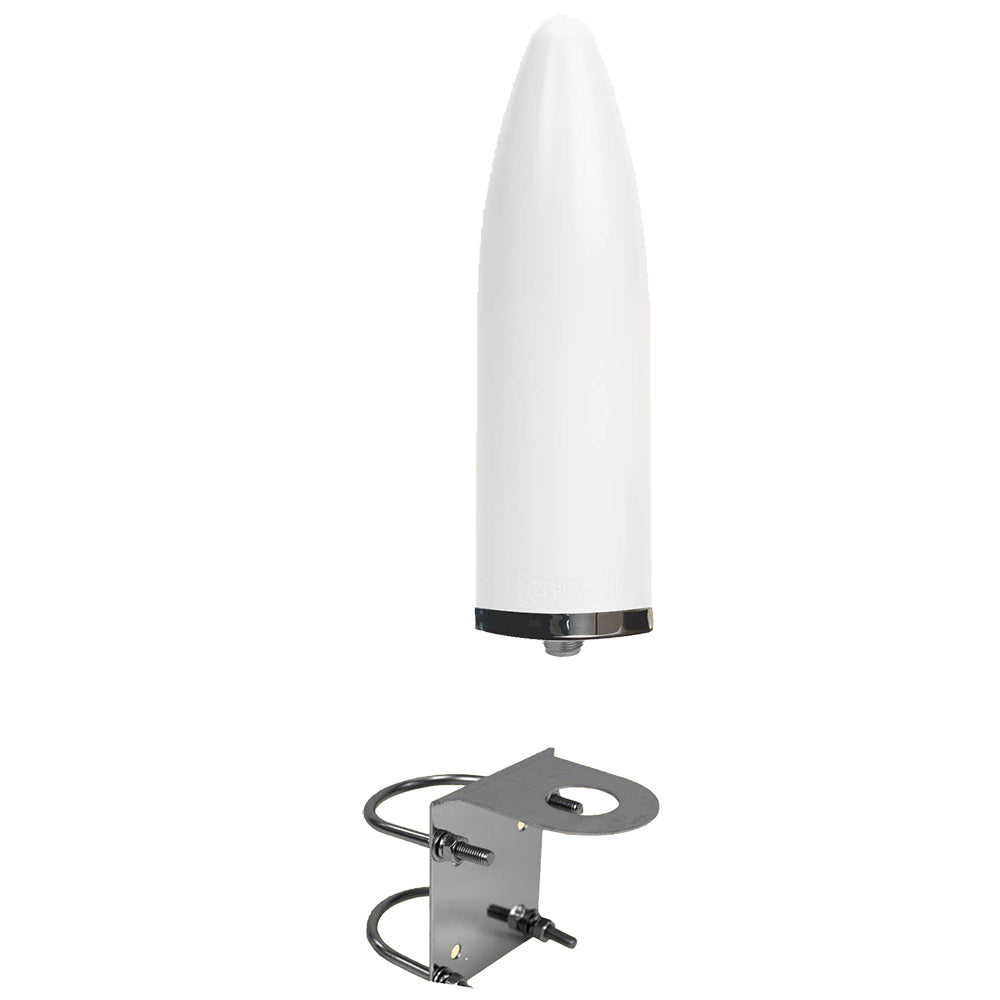

Digital Antenna Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

Available in 4 stainless steel mounting options: L-Bracket, 1" x 14 Threads, Deck Mount, and Raised Deck Mount

REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.

Applications:

• Commercial
• Recreational
• Government
• Marine
• Land

Features:

• Maximum power for 4G, 5G, WiFi signals
• 9dBi omni-directional gain
• Rugged UV stable polyurethane finish
• Foam filled to withstand extreme vibrations
• 316 stainless steel base
• Includes L bracket U-Bolts
• Weatherproof N female connector
• 5-year warranty

Specifications:

• Radiation Pattern Omni-Directional
• Gain 9dBi
• Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ
• Cable Not Included
• Impedance 50 ohms
• Max Input Power 50 watts
• Exterior Finish White polyurethane high gloss UV stable
• Dimensions 8.875" L x 2.375" OD (225 x 60 mm
• Weight 15 oz
• RF Connector N type female
• Installation Stainless Steel L bracket for pole/wall
• Elements Copper - Hand soldered
• Polarization Vertical
• Wind Rating >160KPH
• Operating Temp 30 F to +175 F
• Warranty 5 Years
• Compliance RoHS compliant

The Digital Antenna Part Number 1673-PW offers a high-performance omni-directional antenna designed for optimal cellular and WiFi connectivity. Engineered with a stainless steel base and a durable polyurethane finish, this antenna provides excellent signal strength across a broad frequency range from 600 to 3000 MHz, making it suitable for various applications including mobile, marine, and fixed installations. Its 9dBi gain significantly enhances signal reception and transmission, ensuring maximum range and reliability for devices such as routers, modems, signal boosters, and gateways. The antenna's rugged construction includes foam filling to withstand extreme vibrations and a weatherproof N female connector for secure, weather-resistant connections. This antenna is manufactured in the USA by Digital Antenna, renowned for quality and durability, and comes with a 5-year warranty for peace of mind. Its versatile mounting options, including L-bracket, deck, and raised deck mounts, make it adaptable for use on boats, buildings, and utility poles, with a maximum wind rating of over 160 km/h. Please note that a 50-ohm coaxial cable (not included) is required to connect the antenna to your device. This antenna supports multiple applications, including commercial, recreational, government, marine, and land-based uses, providing reliable connectivity in a variety of environments.

Features:

• Maximum power handling for 4G, 5G, WiFi signals

• 9dBi omni-directional gain for broad coverage

• Rugged UV stable polyurethane finish for outdoor durability

• Foam filled to withstand extreme vibrations and environmental conditions

• 316 stainless steel base for strength and corrosion resistance

• Includes versatile mounting options: L-bracket, U-bolts, deck, and raised deck mounts

• Weatherproof N female RF connector for secure connections

• Designed for high performance in marine, land, and utility environments
