Digital Yacht 4G Xtream Internet and NMEA 2000 Solution (Part No. ZDIG4GX)

4G Xtream Internet NMEA 2000 Solution

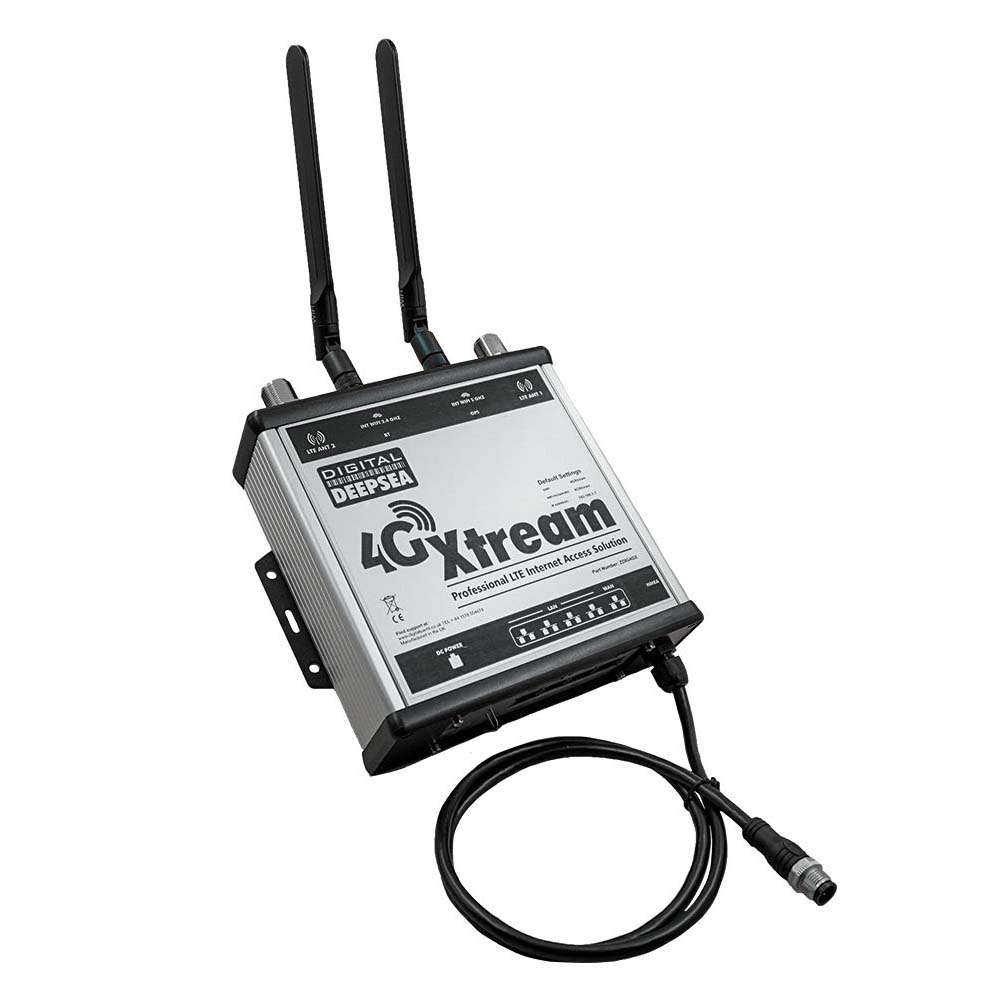

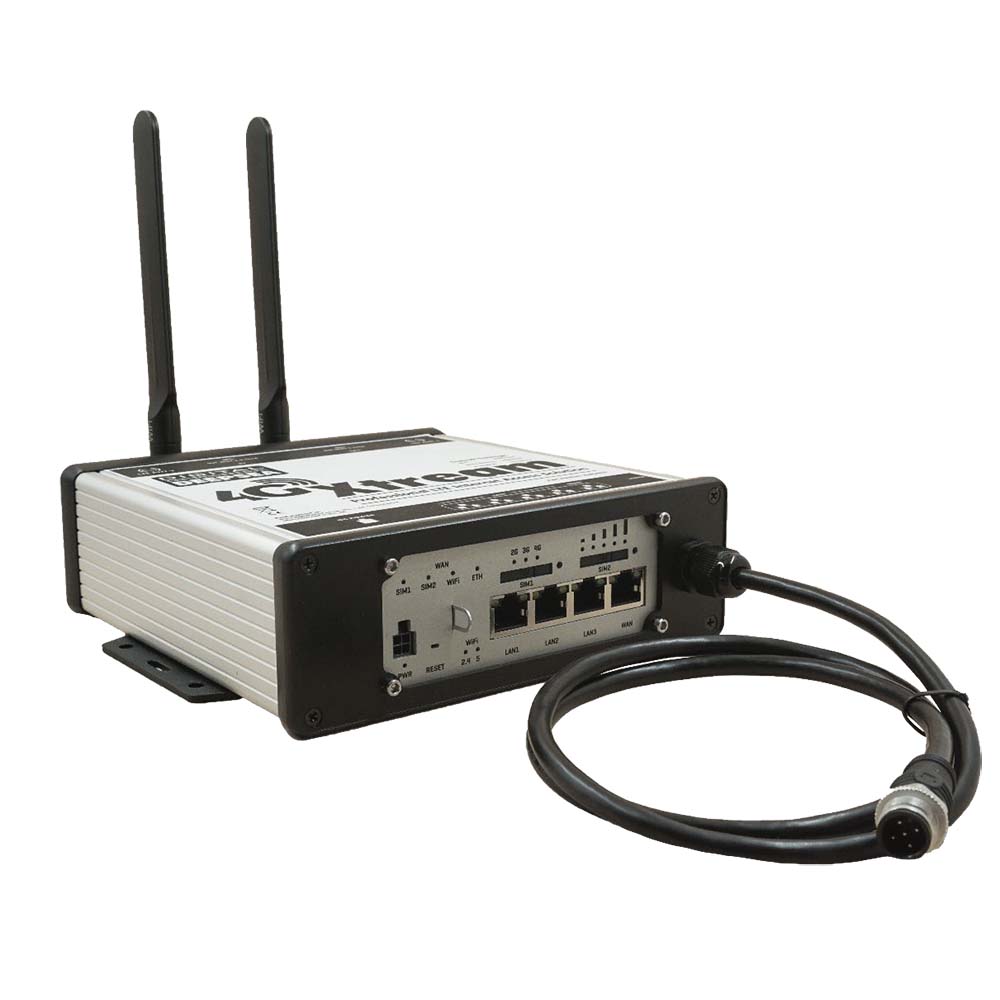

Digital Yacht's 4G Xtream is the latest, premium LTE (cellular) Internet access product. It ships as a complete package with dual external antennas, deck mounting hardware, and cabling. Alternative antenna mounts are available as options.

Using MIMO technology and two external wideband LTE antennas, it offers fast connectivity at up to 300 MBs (network dependent). It has a built-in dual-band wifi router supporting multiple connections, dual SIM slots (with auto-failover if required), built-in GPS (for IOT and tracking applications) as well as an NMEA 2000 interface for navigation and instrument data connectivity and wireless interfacing. Theres also a Bluetooth interface for future connectivity applications.

Features:

• Latest Cat 6 LTE MIMO technology with a range up to 25NM offshore (network dependent)
• Dual SIM slots with auto-failover or manual selection
• Two external, high gain, wide bandwidth antennas
• Dual-band integrated wifi router (2.4 5 GHz) independently configurable
• Built-in NMEA 2000 interface to transmit NMEA 2000 data over the wireless and wired network to compatible apps
• Built-in GPS with external patch antenna for IOT and tracking applications
• Built-in Bluetooth with antenna for future applications
• 3 x LAN ports
• 1 x WAN port for additional internet connectivity eg: WL510 high power wifi system
• Digital input/output connectivity for IOT/control applications (Available Q4 2021)
• SMS addressable

The Digital Yacht 4G Xtream Internet & NMEA 2000 Solution offers reliable high-speed LTE connectivity for marine and outdoor applications. Equipped with the latest Cat 6 LTE MIMO technology, it provides download speeds of up to 300 Mbps, depending on network conditions, and boasts a range of up to 25 nautical miles offshore with its dual external high-gain antennas. The package includes dual external antennas, deck mounting hardware, and cabling, ensuring an easy installation process. This solution is ideal for users needing fast internet access combined with seamless integration of navigation and instrument data through its built-in NMEA 2000 interface, enabling wireless or wired data sharing with compatible devices and applications. Its dual SIM slots with auto-failover ensure continuous connectivity, even in changing network environments, making it suitable for critical operations. The integrated dual-band WiFi router supports both 2.4 GHz and 5 GHz bands, allowing multiple devices to connect simultaneously, while the built-in GPS with an external patch antenna enhances IoT and tracking applications. Additionally, the device features a Bluetooth interface for future connectivity options, three LAN ports, and a WAN port for expanding internet options like high-power WiFi systems. Its digital input/output connectivity further extends its capabilities for IoT and control applications, with future updates expected to augment functionality. The solution is designed to be a versatile, all-in-one communication hub for marine and outdoor environments, combining robust internet access with essential navigation data connectivity for modern vessels and remote operations.

Features:

• Latest Cat 6 LTE MIMO technology with a range up to 25 nautical miles offshore (network dependent)

• Dual SIM slots with auto-failover or manual selection for continuous internet connectivity

• Two external, high-gain, wide-bandwidth LTE antennas for optimal signal reception

• Dual-band integrated WiFi router supporting 2.4 GHz and 5 GHz networks, independently configurable

• Built-in NMEA 2000 interface to transmit navigation and instrument data wirelessly or via wired connection

• Built-in GPS with external patch antenna, suitable for IoT and tracking applications

• Bluetooth interface with antenna for future connectivity applications

• Three LAN ports for wired network connections

• WAN port for additional internet sources such as high-power WiFi systems

• Digital input/output connectivity for IoT and control applications (available Q4 2021)

• SMS addressable for remote management and alerts
