Digital Yacht 5G Xtream System with 3 Antennas and 7M Cable for Marine Internet

5G Xtream System with 3 Antennas 7M Cable

For boat owners looking for ultra-fast internet on board, the new 5G Xtream from Digital Yacht offers 4G and 5G connectivity as well as integration with Starlink satellite systems for the best and most affordable blended internet afloat.

The 5G Xtream can support 5G (shoreside) connection speeds up to 3.1GB/s but also integrates a 4G Cat 20 modem, which offers connectivity up to about 25NM from shore at speeds of up to 2GB/s. The system uses three external antennas with dual high-gain vertical antennas and a separate compact dome for the higher 5G frequencies. This MIMO technology and, critically, separate antennas give optimum performance. Theres support for dual SIMs with auto (failover) or manual switching between operators.

The 5G Xtream features dual-band (2.4 and 5GHz) wireless connections, so users on board simply search for the secure wifi point and connect. There are also 4 LAN ports (10/100/1000 MB) for wired devices like smart TVs and a WAN port that is optimized for Starlink satellite connectivity, allowing the 5GX to act as a sophisticated and fast router for all on-board internet communications.

The Wi-Fi router can also be configured to access marina wifi hotspots as an additional method of internet access. This also supports the very latest 5GHz marina wifi services, and there's also a high-gain external wifi antenna available as an accessory.

For advanced users, the 5G Xtream allows for user management, VPNs, blacklists, and IOT applications. NMEA 0183/2000 data can also be connected using Digital Yachts LANLink devices. The integrated GPS allows for SMS reporting of boat position or even a geofence/drift setting when the boat is at anchor or in port.

The Digital Yacht 5G Xtream is supplied as a complete solution with antennas, mounts, and cabling all thats additionally required is a cellular SIM.

Configuration

Configuration is very simple. Just insert the SIM cards. The 5G Xtream has two standard SIM slots, and it is possible to fit two SIMs from two different network operators. By default, the 5G Xtream will query the SIM that is installed and automatically select the APN settings from its internal database.

However, it is very important that users lockdown their wireless network with their network name (SSID) and wireless password. This task only takes a couple of minutes and is done via the 5G Xtream web interface.

User Interface

Accessing 5G Xtream functionality is done via an easy web interface. Any locally connected device can simply enter the IP address into the password-protected interface to set up functions, view traffic and logs, and configure wifi.

Once set up, there should be no requirement to log in other than for diagnostics and configuration. Users simply access the internet through the wifi connection, just as they would in the home or office.

Features:

• Ultra-fast 5G internet afloat solution with speeds up to 3.1GBs plus also integrates the latest 4G Cat 20 LTE MIMO technology with a range up to 25NM offshore (network dependent) and 4G connection speeds up to 2GBs
• Dual SIM slots with auto-failover or manual selection
• Two external, high-gain, wide-bandwidth antennas plus a compact high-gain dome antenna for higher 5G frequencies
• Dual-band integrated wifi router (2.4 5 GHz)independently configurable
• Built-in GPS with an external patch antenna for IOT and tracking/anchor alarm applications
• 4 x LAN ports
• 1 x WAN port for additional internet connectivity, optimized for Starlink satellite systems
• Digital input/output connectivity for IoT/control applications
• SMS capability
• 12/24v
• Weight: 3800 g

  Dimensions: 180 x 125 x 55 mm

• operation

Specifications:

• Operating Temperature: -40 to +75 degrees C
• Dimensions: 180 x 125 x 55mm (excluding antennas)
• Weight: 3,8 kg
• Protection: IPX4
• Technology: 5G Sub-6Ghz SA/NSA. Up to 2.1/3.3Gbps downlink (44 MIMO); 4G (LTE) CAT 20 up to 2GB/s
• 5G/LTE: 5G Sub-6Ghz SA/NSA. Up to 2.1/3.3Gbps downlink (44 MIMO); 4G (LTE) CAT 20 up to 2GB/s
• 3G/4G Fallback (Support bands): 5G (NSA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77; 5G (SA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78; 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41, B42, B43
• 4G 5G Antennas: Dual Wi-Fi band independent 2.4 5 GHz (maximum 150 connections); dual 48cm external wideband high gain MIMO supplied with 7-meter cables and mounting bases. (10 20m options available) PLUS additional 100mm dome antenna for 4 x 4 MIMO operation and optimized for 5G (7m cable only)
• Interfaces: 4 x LAN 10/100 Ethernet Port; 1 x WAN 10/100 Ethernet Port ; WiFi; 802.11 b/g/n/ac

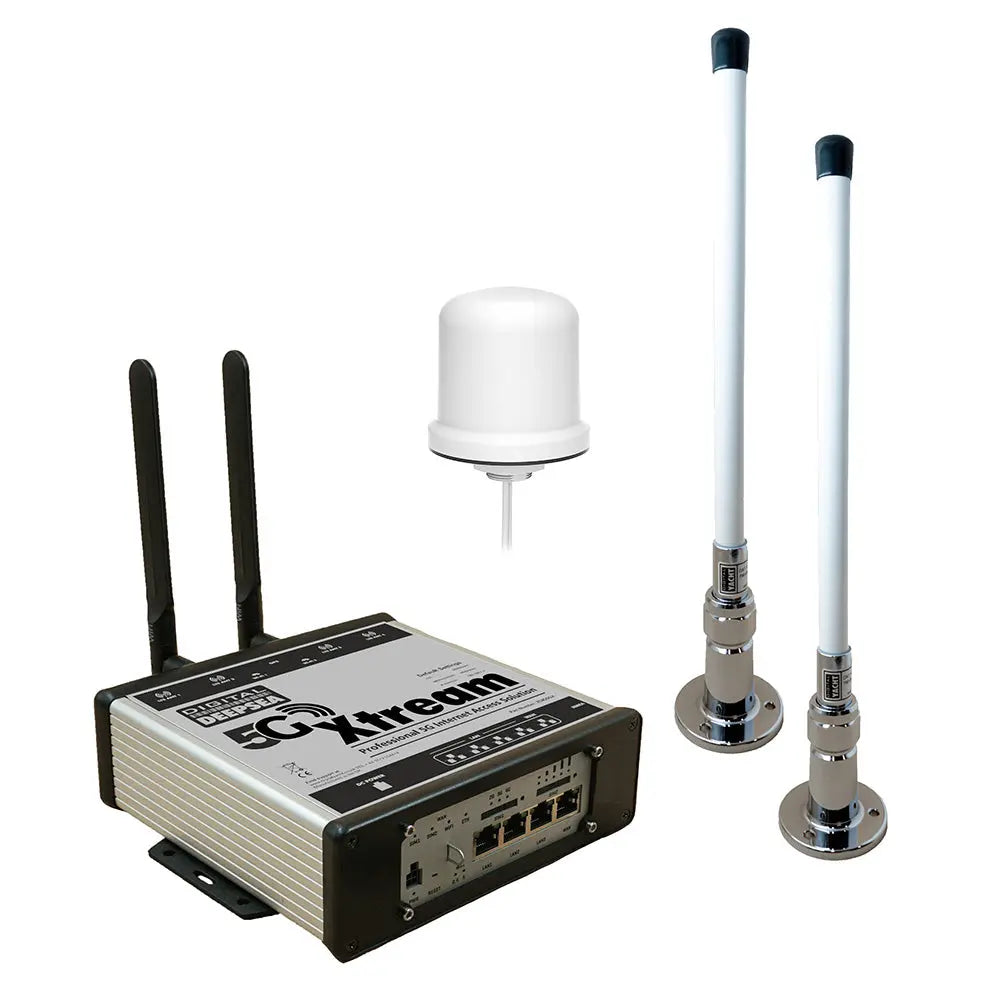

Whats in the Box

• 1 x 5G Xtream Modem Unit
• 1 x DC Power/IO cable
• 2 x External antennas
• 2 x E179F antenna bases
• 2 x 7m LMR200 antenna cables (N male to N male)
• 1 x 5G dual element dome antenna with pole/1 adaptor mount and integrated 7m cables
• 2 x Internal wifi antennas
• 1 x Internal GPS antenna

Options (sold separately):

• 1 antenna adaptors and range of mounts
• 10 20m LMR400 antenna cable packs for 4G antennas
• AC 110/220v power adaptor
• 4GXWL hi power external wifi option
• LANLink NMEA 0183/2000 interface

The Digital Yacht 5G Xtream System offers boat owners a high-performance, ultra-fast internet solution designed specifically for marine environments. Equipped with 5G and 4G LTE Cat 20 technology, this system supports download speeds up to 3.1 gigabits per second, ensuring reliable connectivity even at offshore ranges up to approximately 25 nautical miles, depending on network conditions. The system includes three external antennas—dual high-gain vertical antennas and a compact dome for higher 5G frequencies—that leverage MIMO technology for optimal performance and coverage. The integrated dual-band Wi-Fi router provides secure wireless connectivity on board, supporting both 2.4 GHz and 5 GHz bands, which can be independently configured to suit various onboard requirements. Connectivity options are further enhanced with four LAN ports for wired devices like smart TVs and a WAN port optimized for Starlink satellite systems, making it a versatile solution for all internet needs afloat.

Features:

• Ultra-fast 5G internet with speeds up to 3.1GB/s, combined with 4G LTE Cat 20 technology supporting connectivity up to 25 nautical miles offshore (network dependent).

• Dual SIM slots with automatic failover or manual operator switching for uninterrupted connectivity.

• Three external antennas—including dual high-gain vertical antennas and a compact dome antenna—using MIMO technology for maximum performance across frequencies.

• Dual-band Wi-Fi router (2.4 GHz and 5 GHz) with independent configuration, supporting up to 150 simultaneous connections.

• Four LAN ports and one WAN port, the latter optimized for Starlink satellite systems, providing flexible wired and satellite connectivity options.

• Built-in GPS with external antenna for IoT applications, boat tracking, and geofencing alarms.

• Supports digital input/output connections for advanced control and IoT integrations.

• SMS functionality for remote reporting and alerts.

• Easy configuration via a secure web interface, enabling quick setup and network management.

• Weatherproof design with IPX4 protection, operating reliably across temperatures from -40°C to +75°C.

• Complete system includes antennas, mounts, cabling, and all necessary components, requiring only a cellular SIM card for operation.
