SKU:100615
BM100 Battery Monitoring Solution

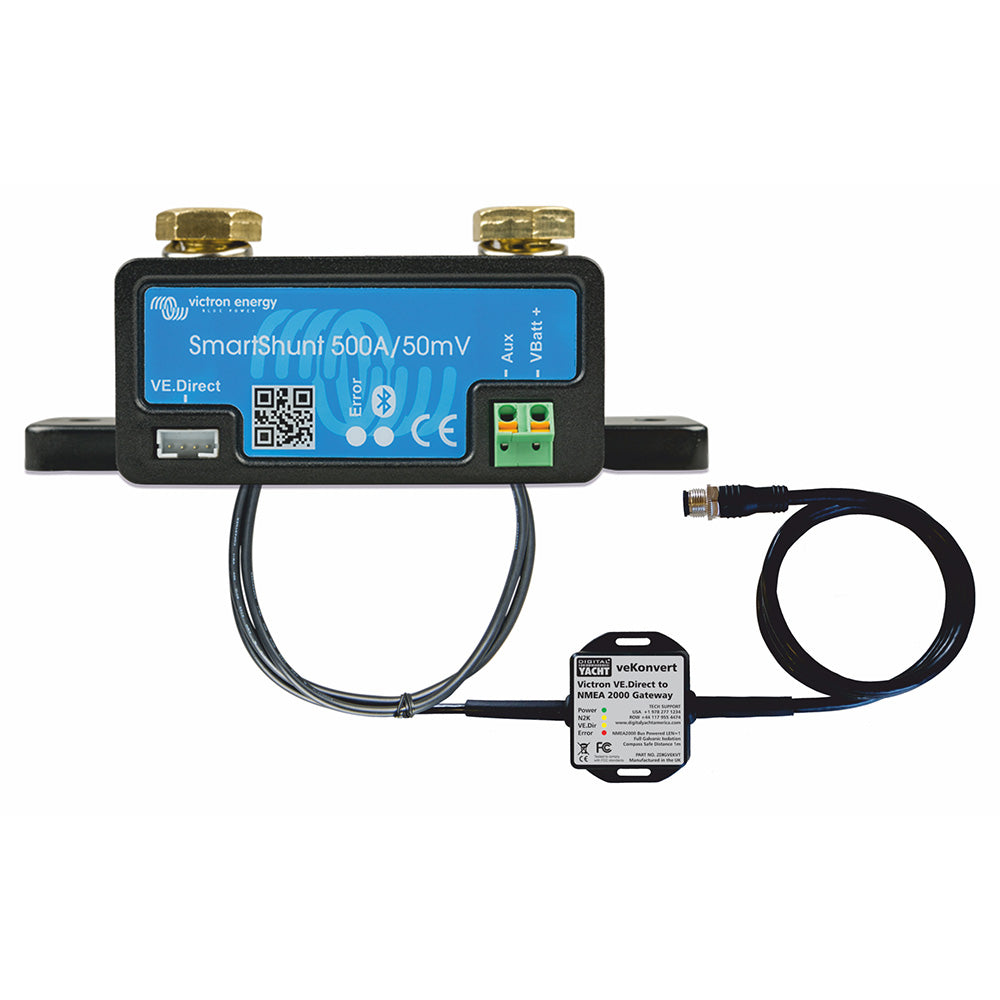

The BM100 is a complete system comprising SmartShunt and the veKonvert NMEA 2000 interface. It is part of Digital Yachts iSeaSense range of NMEA 2000 boat instruments. With this solution, your multi-function display becomes a sophisticated battery and energy management system.
Features
Digital Yachts BM100 battery monitoring system allows highly accurate DC voltage, current, and capacity measurements, enabling reliable monitoring of your boats battery and electrical system.
Core to the system is the SmartShunt. It measures battery voltage and current. Based on these measurements, it intelligently calculates the batterys state of charge and the time to depletion for the remaining charge. It also keeps track of historical data, such as the deepest discharge and average discharge current, as well as the number of charge and discharge cycles. The smart shunt can also monitor the voltage of a 2nd battery, typically dedicated to engine starting.
The product is a collaboration between Victron Energy and Digital Yacht. The system utilizes Victrons proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.
The BM100 is part of a wider group of products now introduced by Digital Yacht that bring NMEA 2000 connectivity to Victron systems using the VE.Direct interface.
Victron solar panel controllers (MPPTs) and battery monitors can now also interconnect to NMEA 2000 via the veKonvert interface.
Monitoring the battery with the BM100 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. Theres also an optional battery temperature sensor available.
The BM100 can also integrate with Digital Yachts other NMEA 2000 and wireless instruments, which offer hybrid NMEA 2000 and wireless display options.
NMEA 2000 Interface
The system features an NMEA 2000 interface, so your navigation multi-function display or plotter can display all key parameters. Modern MFDs from leading manufacturers such as Garmin, Raymarine, Furuno, and Navico allow electrical battery data to be displayed via their NMEA 2000 interface. Alarms and alerts for low capacity and voltage can also be enabled.
Bluetooth Interface
The BM100 also has a standalone wireless Bluetooth interface, so your mobile phone or iPad can connect and display current, voltage, capacity, additional historical data, state of charge information, and time to go based on remaining battery capacity.
Specifications:
Vekonvert Is Compatible with the Following Victron Products:
NOTE: veKonvert is not compatible with Victron Chargers and Inverters. It should also not be plugged into the VE.Direct interfaces of any Victron "Consumers" such as Multiplus, Quattro, Cerbo, etc.
The Digital Yacht BM100 Battery Monitoring System is an advanced solution designed to enhance your boat's energy management. This complete package includes the SmartShunt and veKonvert NMEA 2000 interface, transforming your multi-function display into a comprehensive battery monitoring hub. The system provides highly accurate measurements of DC voltage, current, and capacity, enabling boaters to monitor their electrical system reliably and efficiently. The SmartShunt measures battery voltage and current, and uses this data to intelligently calculate the state of charge and estimate the remaining time before depletion. It also tracks historical information such as the deepest discharge, average discharge current, and charge/discharge cycle counts, offering valuable insights into battery health and usage patterns. Additionally, the SmartShunt can monitor a second battery, such as the engine starting battery, providing a broader picture of your boat's power system.
Features:
