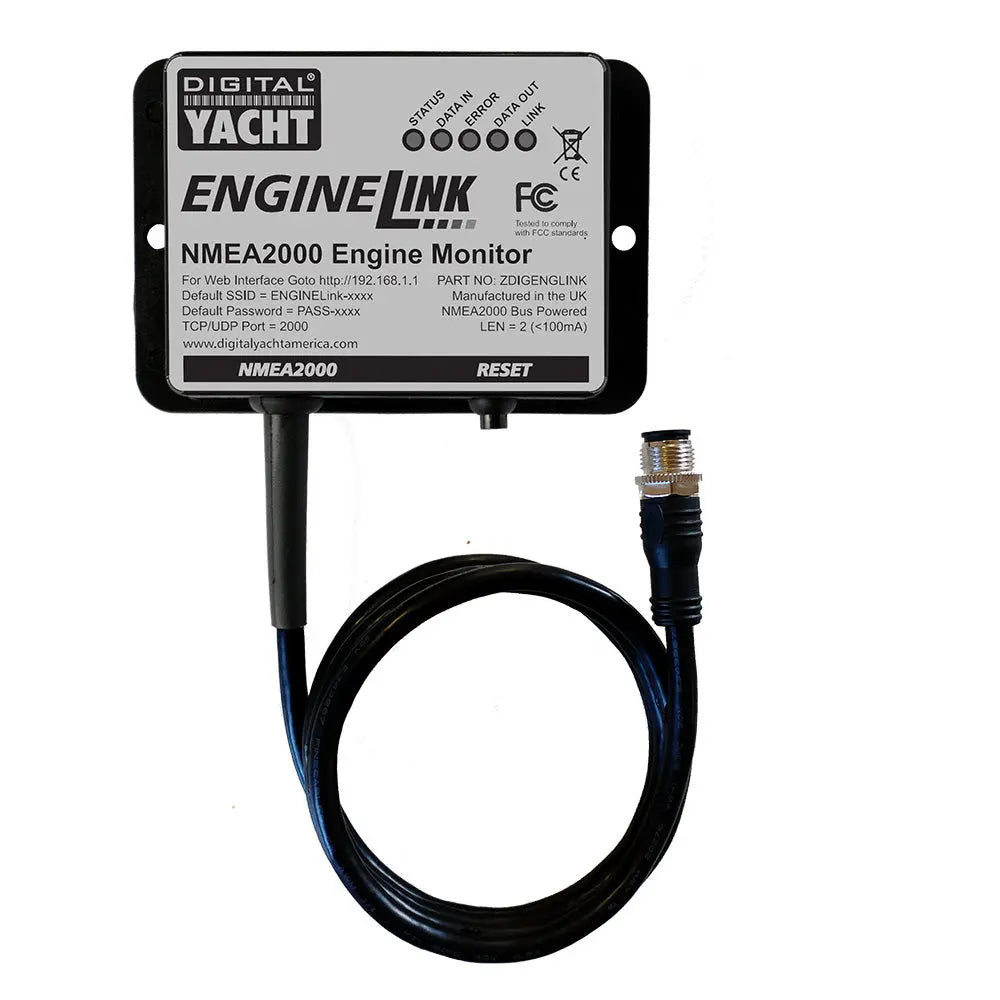

Digital Yacht Engine Link NMEA 2000 Engine Monitor (Part ZDIGELINK)

Engine Link NMEA 2000 Engine Monitor

ENGINELink interface is an NMEA 2000 wireless device that allows mobile phones, iPads, and tablets to display engine data as well as provide a link to boat AIS, depth, and GPS information for popular apps such as Navionics, NavLink, iNavX, SavyNavy, AquaMaps and 100's more. Now boaters can have boat engine data plus their favorite charting app displayed on their mobiles and tablets in real-time.

Engine information such as RPM, temperature, pressure, and battery voltage is displayed as an attractive dashboard display through the web browser so theres no need for a custom app. Setup and installation are easy. Just T into the boat's NMEA 2000 backbone and ENGINELink is self-powered from the network. It creates a secure, password-protected local wifi network with up to 7 devices able to connect simultaneously. UDP and TCP-IP protocols are supported for compatibility with 3rd party apps.

Either single or dual-engine installations are supported. If the vessel is fitted with NMEA 2000 compatible trim tabs or jack plates, then the status of these performance-critical systems is also displayed on the dashboard.

You can configure ENGINELink through its own simple web interface - just open your web browser, enter its IP address and you'll access the attractive dash to display and configure your gauges. No complicated programming software or app is required. iOS and Android devices can display a navigation app and a web browser side by side - so you can have your favorite charting app open alongside engine instrument displays.

You can change the network name password and even merge the wifi to an existing wifi network on board. NMEA 2000 data can be viewed and logged in the web browser allowing for easy fault finding of issues. If the engine generates diagnostic alerts then these can be displayed and interrogated too.

Features:

• Connect to any NMEA 2000-ready engine or network
• Built-in web gauge display no app needed
• Display single or dual-engine gauges
• Configurable gauges choose the parameters you want to monitor
• Set alarm/alert thresholds and view diagnostics
• TCP/UDP streaming of navigation data (GPS/AIS/Depth) for popular navigation apps
• Tank levels, fuel flow, and trip computer-type displays
• Tilt, trim tabs, and jack plate support
• Manufacturer-specific engine modes

Specifications:

• Powered from NMEA 2000 Network fits in seconds
• Password-protected wireless interface 802.11b/g/n
• AP or STA mode (can join another boat wifi network)
• TCP/UDP streaming of navigation data (AIS, GPS, and depth) to popular apps like Navionics, TZ, AquaMaps, iNavX etc
• Supported PGNs (1st Release) 127488, 127489, 127493, 130312, 130316, 127505, 130576, 128780
• Preset gauge displays for leading manufacturers or customize your display
• Flexible, upgradeable interface

Target Markets Applications:

• Brings boat engine data to mobile devices
• Primarily aimed at the US center console and sports fishing market where outboard-powered craft have NMEA 2000 networks with engine data available but will work with any NMEA 2000 ready engine installation inboard or outboard
• Provides additional data displays and extra functionality than MFDs
• Low-cost dashboard repeater accessible anywhere onboard
• Ideal test tool for service technicians
• Will be at the leading edge of electric propulsion PGN implementation
• Logging and replay of data for onshore analysis
• Support for the latest jack plate and trim tab PGNs, for optimizing boat performance
• Connects to Navionics app (and 100s more) for AIS, GPS, and depth data

The Digital Yacht Engine Link NMEA 2000 Engine Monitor (Part ZDIGELINK) provides boaters with real-time engine data displayed directly on mobile devices such as smartphones and tablets. This wireless NMEA 2000 device seamlessly connects to your boat’s engine network, enabling you to monitor critical parameters like RPM, temperature, pressure, and battery voltage through an intuitive web dashboard. The setup is straightforward: connect to your NMEA 2000 backbone, and the Engine Link creates a secure Wi-Fi network that supports up to seven devices simultaneously. Compatible with both iOS and Android, the system supports popular navigation apps like Navionics, NavLink, and iNavX, allowing you to view engine data alongside GPS, AIS, and depth information for comprehensive navigation. Its support for TCP/IP and UDP protocols ensures compatibility with a variety of third-party apps, making it a versatile tool for boaters seeking real-time engine insights without the need for custom apps or complex software.

Designed for single or dual-engine installations, the Engine Link also supports NMEA 2000-compatible trim tabs and jack plates, providing a full picture of boat performance. The device features a user-friendly web interface for configuration—simply enter its IP address in a browser to customize gauges, set alarm thresholds, and view diagnostics. Additional features include logging of NMEA 2000 data for troubleshooting, engine diagnostic alerts, and the ability to merge the Wi-Fi network with existing onboard networks. The system’s flexibility allows you to change network names, passwords, and display preferences, making it suitable for a wide range of vessel types and applications. Whether used as a low-cost dashboard repeater or a diagnostic tool for technicians, the Digital Yacht Engine Link enhances vessel monitoring and performance optimization.

Supported PGNs include key engine and navigation data streams, ensuring comprehensive monitoring of your boat’s systems. Its slim profile and easy installation make it an ideal addition for US center console and sports fishing boats, as well as any NMEA 2000-compatible vessels. The device’s upgradeable interface and support for manufacturer-specific engine modes ensure future-proof performance. Whether for daily navigation, performance tuning, or troubleshooting, the Digital Yacht Engine Link offers a reliable, user-friendly solution for accessing engine and boat system data on your preferred mobile device, elevating your boating experience to a new level of convenience and insight.

Features:

• Connects seamlessly to any NMEA 2000-ready engine or network

• Built-in web gauge display eliminates the need for a dedicated app

• Supports display of single or dual-engine parameters

• Customizable gauges for monitoring specific parameters

• Alarm and alert thresholds with diagnostic viewing

• TCP and UDP streaming of GPS, AIS, and depth data for navigation apps

• Displays tank levels, fuel flow, and trip data

• Supports tilt, trim tabs, and jack plate status monitoring

• Compatible with manufacturer-specific engine modes

• Powered directly from the NMEA 2000 network for easy installation

• Secure, password-protected Wi-Fi (802.11b/g/n) with configurable network settings

• Supports AP and STA modes, including joining existing Wi-Fi networks

• Supports key PGNs such as 127488, 127489, 127493, and more

• Preconfigured displays for leading engine manufacturers with customization options

• Upgradeable interface for future compatibility and features
