Digital Yacht GPS160 TriNav GPS. Glonass, Galileo Sensor NMEA2000 iKonvert Bundle

Features and Benefits of the Digital Yacht GPS160 TriNav GPS

Digital Yacht GPS160 TriNav GPS. Glonass, Galileo Sensor NMEA2000 iKonvert Bundle

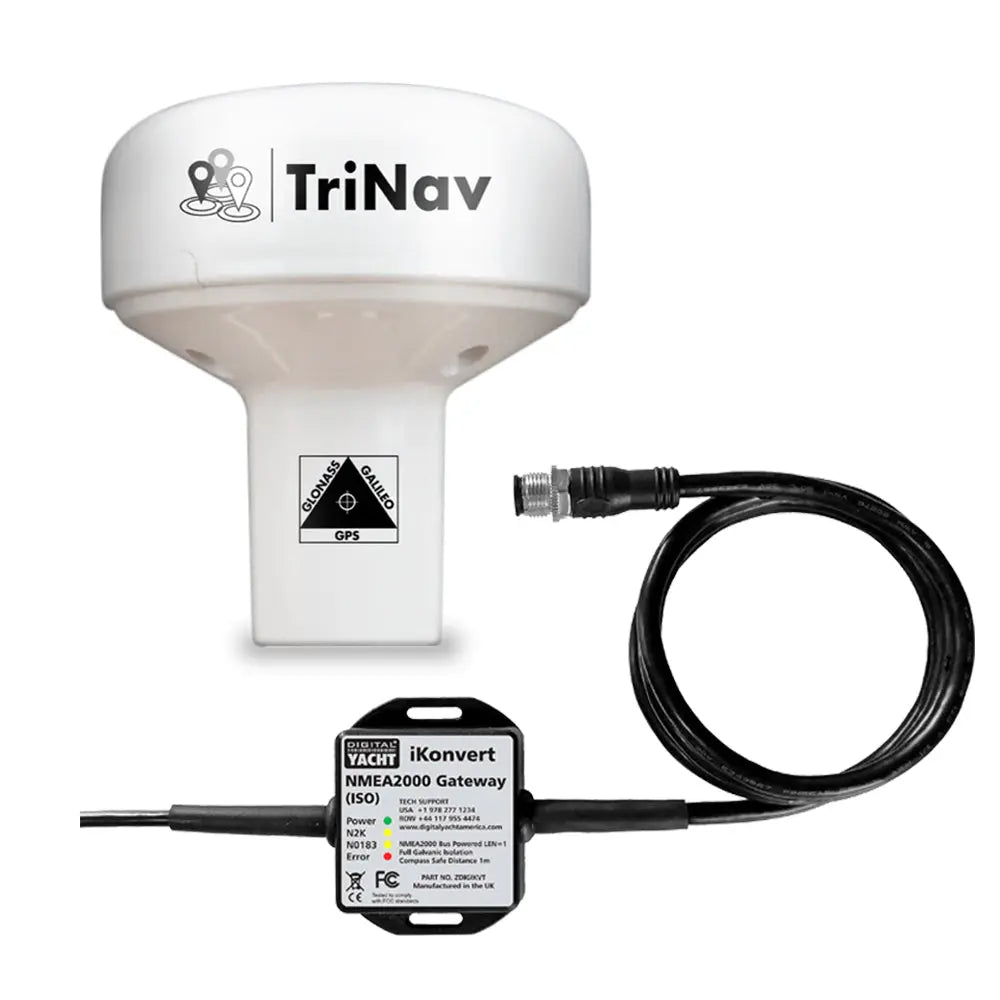

Digital Yacht DIGGPS160N2K GPS160 supplied with iKonvert (NMEA2000-NMEA0183 converter)

Model: ZDIGGPS160N2K

• 72 channel GPS, Glonass and Galileo GNSS positioning receiver
• Supplied with iKonvert (NMEA2000-NMEA0183 converter) allowing easy and flexible NMEA 2000 installation
• Typically sub 1m accuracy thanks to TriNavTM technology -combines all satellite data for optimum accuracy
• Can be configured as dedicated GPS, Glonass or Galileo only device
• Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection
• User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches
• Multiple formats of NMEA data output including datum information -user configurable through internal DIP switches
• 10m cable
• Up to 18Hz update rate (user selectable)
• Ultra low (<20mA) power consumption at 12V DC
• Input for MOB switch/system -when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter
• Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)

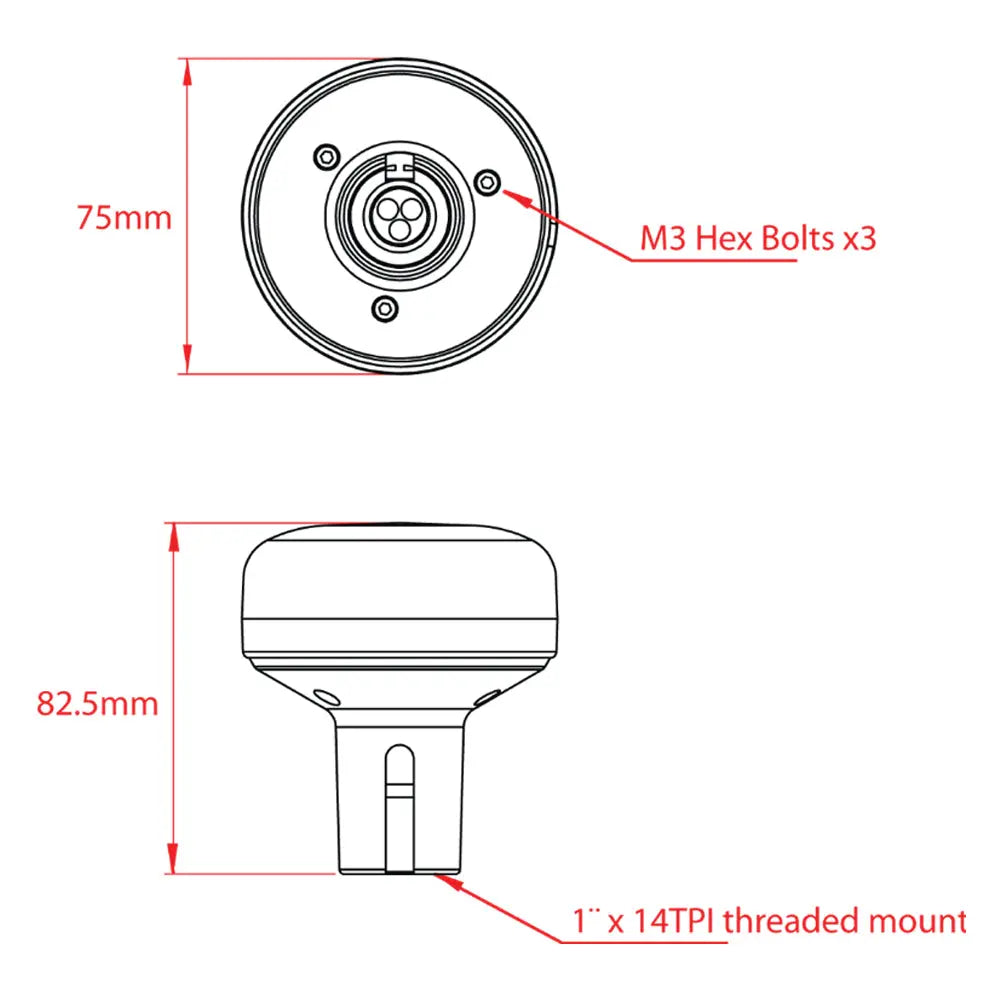

• Puck installation or fits 3rd party industry standard 1 in x 14TPI threaded mount

Digital Yacht have unveiled their TriNavTM GPS160, a new, high performance positioning sensor using GPS, Glonass and the new Galileo satellite systems for exceptional positioning accuracies and redundancies. Typical accuracy is better than 1m and data can be set to output at up to 18Hz for smoother plotter track displays. TriNavTM software technology also improves positioning vulnerabilities that could occur through spoofing and local interference.

The device can be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc

The GPS160 NMEA 2000 version is supplied with Digital Yacht iKonvert NMEA 2000 gateway allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables. It allows an easy and thin 10m cable to be run from the GPS160 to the nearest point on the NMEA 2000 backbone for the iKonvert to connect to.

The GPS160 also supports a simple external MOB (man-over-board) switch or device. When activated, the GPS160 creates a "synthesised" AIS SART MOB message on its NMEA output which can be interfaced with a local plotter for MOB identification. Most modern plotters support this with a clear MOB icon and instant bearing and distance information to navigate to the casualty.

Galileo is the new global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.

There are currently 22 satellites in usable condition (satellite is operational and contributing to the service provision), 2 satellites are in "testing" and 2 more are marked as not available. The final constellation should be deployed by 2020 and will consist of 30 satellites (24 operational and 6 spares).

Comprehensive Satellite Navigation Technology

The Digital Yacht GPS160 TriNav GPS leverages multiple satellite constellations including GPS, Glonass, and Galileo to deliver superior positioning accuracy. This multi-constellation support ensures reliable location data even in challenging environments such as dense urban areas or at sea, where signal interference is common. Users benefit from faster acquisition times and enhanced signal stability, making this device a trusted choice for marine navigation. Its compatibility with the NMEA2000 network further simplifies integration with your onboard electronics.

Seamless Integration with NMEA2000 and iKonvert

Designed for ease of installation, the Digital Yacht GPS160 TriNav GPS bundle includes the iKonvert interface, which converts NMEA0183 data to NMEA2000. This capability allows boaters to connect the sensor easily to existing NMEA2000 networks without compatibility issues. The plug-and-play nature of the iKonvert significantly reduces setup time and wiring complexity, presenting a clean and efficient solution for modern vessels. The device supports a variety of marine instruments creating a unified navigation system.

Durability and Reliability in Marine Environments

Built specifically for marine conditions, the Digital Yacht GPS160 TriNav GPS sensor is highly durable and weather-resistant. Its robust housing protects against corrosion, water ingress, and impact damage, essential for extended use at sea. It maintains consistent performance even in rough weather or saltwater exposure. This durability, combined with advanced technology, gives mariners confidence in accurate positioning and navigation that withstands the harsh demands of the ocean.
