Digital Yacht GPS160 TriNav GPS. Glonass, Galileo Sensor SeaTalk 1 Bundle

Discover the Power of Digital Yacht GPS160 TriNav GPS for Marine Navigation

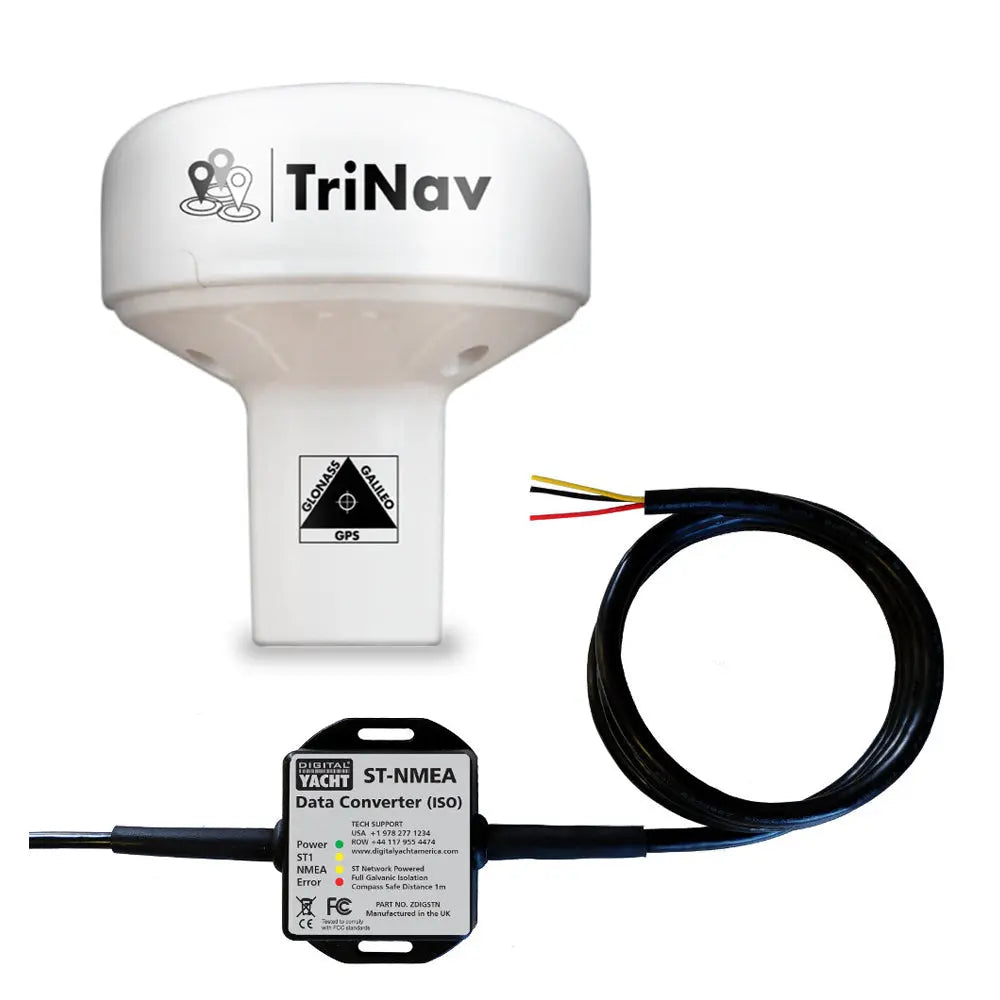

Digital Yacht GPS160 TriNav GPS. Glonass, Galileo Sensor SeaTalk 1 Bundle

Digital Yacht GPS160ST SeaTalk version is supplied with Digital Yacht SeaTalk1 to NMEA0183 converter

Model: ZDIGGPS160ST

• 72 channel GPS, Glonass and Galileo GNSS positioning receiver
• Supplied with Digital Yacht SeaTalk1 to NMEA0183 converter allowing easy replacement of older Raystar sensors
• Typically sub 1m accuracy thanks to TriNavTM technology -combines all satellite data for optimum accuracy
• Can be configured as dedicated GPS, Glonass or Galileo only device
• Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection
• User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches
• Multiple formats of NMEA data output including datum information -user configurable through internal DIP switches
• 10m cable
• Up to 18Hz update rate (user selectable)
• Ultra low (<20mA) power consumption at 12V DC
• Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)

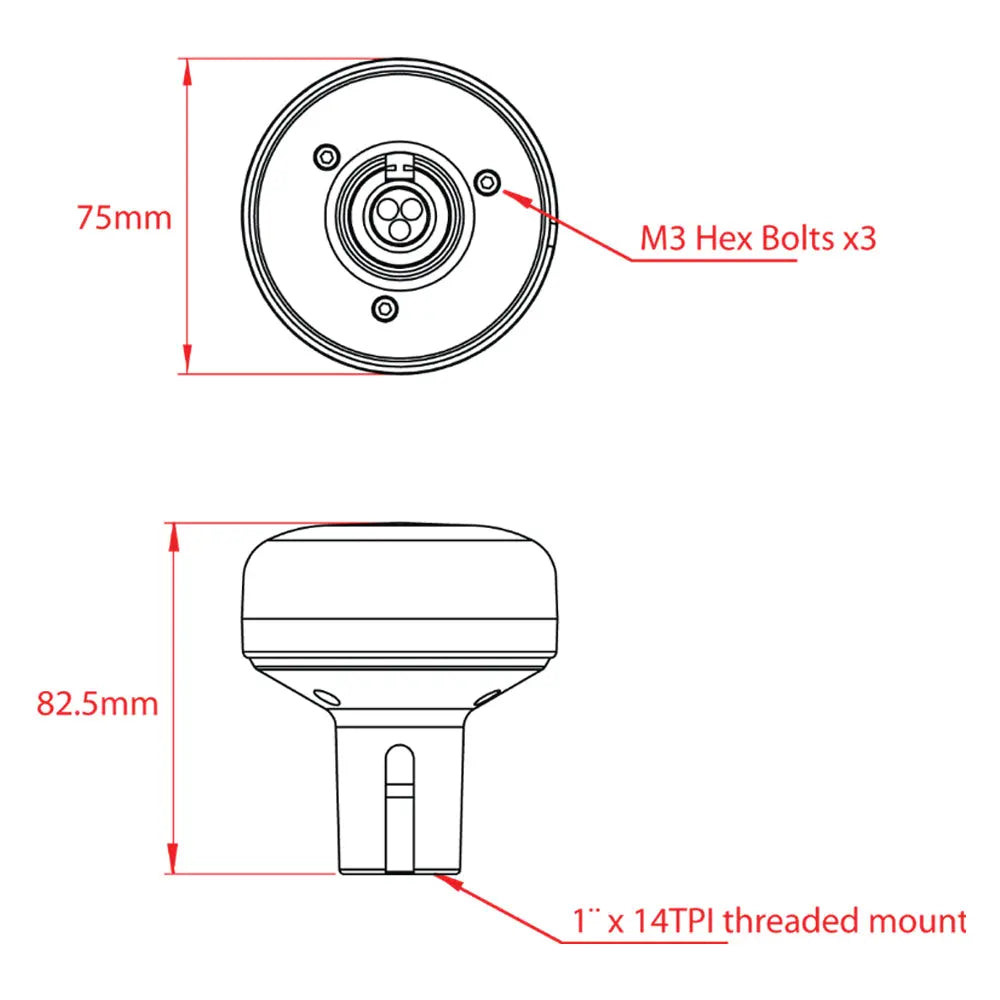

• Puck installation or fits 3rd party industry standard 1 in x 14TPI threaded mount

Puck installation or fits 3rd party industry standard 1 in x 14TPI threaded mount

The device can be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc

The GPS160 SeaTalk version is supplied with Digital Yacht SeaTalk1 to NMEA0183 converter allowing easy replacement of older Raystar sensors. Digital Yacht's SeaTalk to NMEA (ISO) Converter is a small but powerful interface that provides bi-directional conversion between a SeaTalk network and an NMEA0183 network. It takes its power from the SeaTalk1 network.

Galileo is the new global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.

There are currently 22 satellites in usable condition (satellite is operational and contributing to the service provision), 2 satellites are in "testing" and 2 more are marked as not available. The final constellation should be deployed by 2020 and will consist of 30 satellites (24 operational and 6 spares).

High-Precision Multi-Constellation GPS Technology

The Digital Yacht GPS160 TriNav GPS sensor harnesses the capabilities of multiple satellite systems including GPS, Glonass, and Galileo. This multi-constellation approach ensures exceptional accuracy and reliability, providing boaters with precise positioning even in challenging marine environments. Its advanced sensor technology reduces signal loss and enhances tracking speed, making it ideal for professional sailors and recreational users who demand the best navigation performance at sea.

Seamless Integration with SeaTalk 1 Systems

This GPS bundle integrates flawlessly with existing SeaTalk 1 marine networking systems, allowing users to connect the GPS160 TriNav sensor directly to compatible chartplotters and marine instruments. The easy plug-and-play installation saves time and avoids complex wiring, while the SeaTalk 1 communication ensures consistent data delivery across your boat’s navigation devices. This compatibility simplifies upgrades and enhances the overall navigation experience onboard.

Robust Design Built for Harsh Marine Conditions

Built specifically for marine environments, the Digital Yacht GPS160 TriNav GPS sensor features a rugged, waterproof housing that withstands saltwater, humidity, and extreme weather. Its durable design guarantees long-term reliability and performance on every voyage. Whether you are cruising coastal waters or crossing oceans, this device delivers dependable navigation support, helping you stay on course with confidence and peace of mind.
