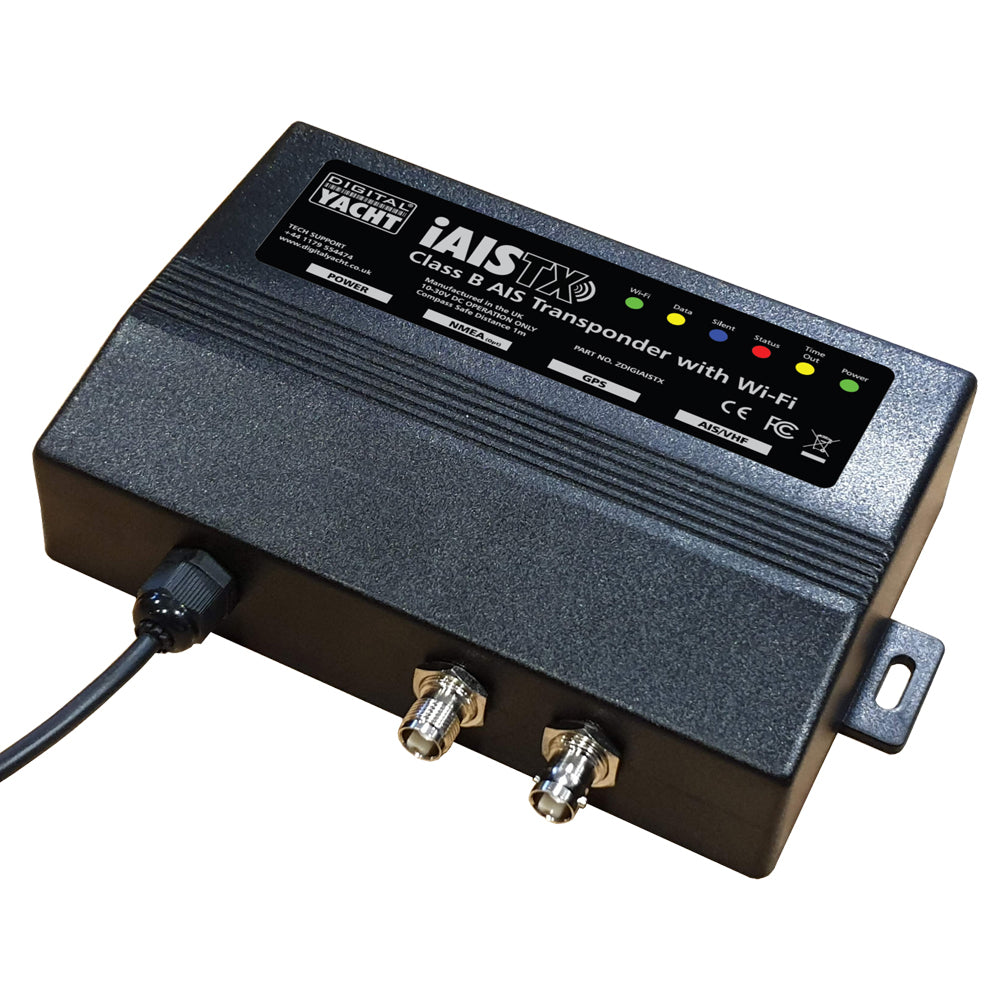

Digital Yacht iAISTX Class B Wireless AIS Transponder with WiFi Interface

iAISTX Class B Wireless Transponder

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owners signature on the completed programming form.**

Click here to download form.

iAISTX has been designed specifically for the growing number of boaters who use an iPad or Android tablet for their navigation tasks. As a full function Class B transponder, it sends your boat position and identity data to other AIS equipped vessels as well as providing a wireless interface for mobile devices with popular apps to display received data from other AIS equipped vessels.

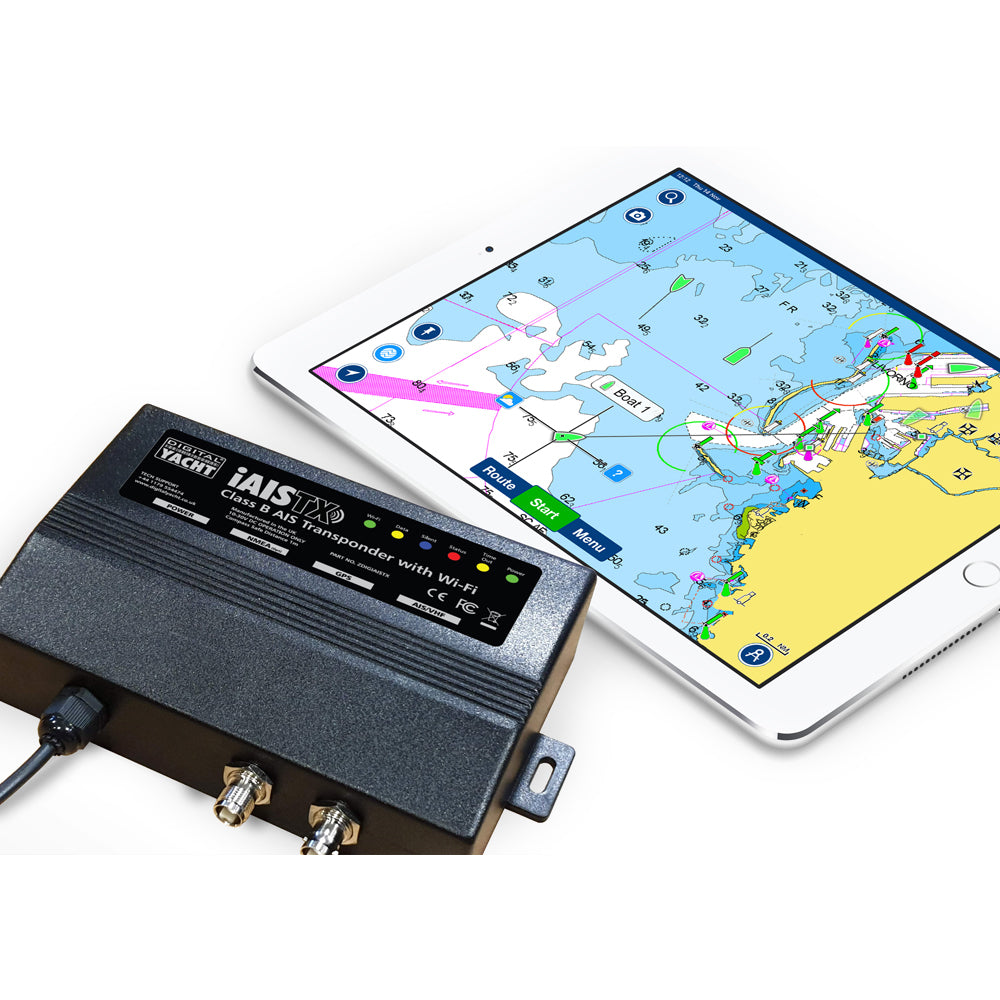

iAISTX creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more. These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach).

AIS transponders require one time programming with the boats identity and physical dimensions and this is done through a simple, embedded web interface via the tablets browser (Safari, Chrome, etc.). This can also be used to silence the transmission and set up wireless parameters such as passwords. Installation is simple just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boats existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.

If you also want to get AIS data on to your MFD (chart plotter), then we recommend the iAISTX Plus which includes an additional NMEA 2000 interface.

Features:

• Class B AIS transponder with WiFiinterface for phones, tablets, iPads and PCs
• Support for all the latest target types such as ATONs and AIS MOB devices
• Latest HF AIS technology for superior performance
• UDP and TCP/IP protocols supported for up to 7 connected devices
• Password protected, secure wireless connection
• Internal wifi antenna will typically footprint a boat up to 60ft in length
• Supplied with external GPS antenna and 10m (33ft) cable which can be deck mounted or fitted tostandard 1 mount
• Compatible with 100s apps. See our reviews at www.digitalyacht.net
• LED status indicators for wireless connection, data, status, time out, power and silent mode
• Easy embedded web interface for programming
• Measures just 20 x 14 x 4.5cm
• 12/24V operation and ultra-low 2W consumption

The Digital Yacht iAISTX Class B Wireless AIS Transponder is designed for boaters who prefer using tablets or smartphones for navigation. This full-function transponder transmits your vessel's position and identity data to nearby AIS-equipped vessels, enhancing safety and situational awareness. Its WiFi interface creates a secure, password-protected local network that supports multiple devices, allowing real-time data sharing with popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, and TimeZero. With this setup, users can overlay AIS targets directly onto their navigation charts, view collision avoidance data like CPA and TCPA, and receive detailed vessel information all in one place.

Features:

• Class B AIS transponder with WiFi interface for smartphones, tablets, and PCs

• Supports latest target types including ATONs and AIS MOB devices

• Utilizes advanced HF AIS technology for reliable performance

• Supports UDP and TCP/IP protocols for up to 7 connected devices

• Password-protected, secure wireless connection for safety

• Built-in WiFi antenna suitable for boats up to 60 feet in length

• Includes external GPS antenna with 10-foot cable for flexible mounting options

• Compatible with hundreds of navigation apps, with reviews available at digitalyacht.net

• LED indicators for connection status, data activity, power, and silent mode

• Embedded web interface allows easy configuration and setup

• Compact size measuring approximately 8.9 x 5.5 x 1.8 inches and low power consumption of 2W

• Operates on 12/24V DC power supply for versatile installation
