SKU:79011

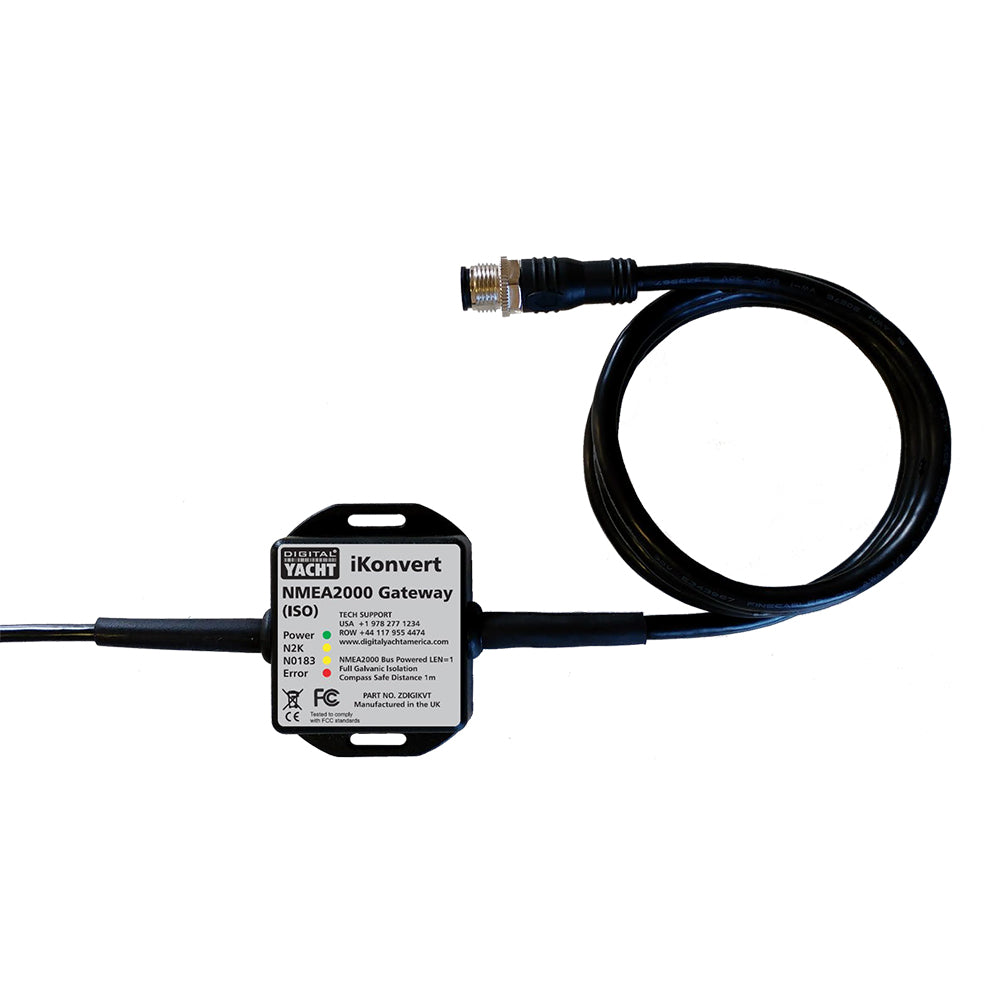

iKonvert NMEA 2000 Gateway with ISO Interface
The iKonvert NMEA2000-0183 Gateway/Converter is an intelligent and flexible gateway for allowing new NMEA2000 equipment to talk to legacy NMEA0183 equipment. Conversions are bi-directional, so whether you want to get the data from older NMEA0183 sensors on to your NMEA2000 network or you have added a new NMEA2000 only MFD and want it to send GPS and Navigation data to your older NMEA0183 VHF and Autopilot, iKonvert will accurately and intelligently carry out the required data conversions.
There are many, many real life applications for NMEA2000 to NMEA0183, with a plethora of different makes and models of equipment that may need to be connected together. We have designed iKonvert to satisfy as many of these situations as possible by incorporating a simple but effective mode selection method, via a set of DIP switches inside iKonvert. Just remove two screws, open the iKonvert box and using a small screw driver, select the mode you need. The next time iKonvert powers up, it will automatically carry out the conversions you selected.
A number of modes have already been defined including; Heading, Sounder, AIS, GPS, Wind, Instruments and an all data gateway mode, which automatically sets the conversions to be done and the baud rate iKonvert will use. What is more, if you need a mode that we have not defined yet, just let us know and we will consider including it.
Digital Yachts iKonvert Gateway is housed in a compact and easy to mount housing, with an integral NMEA0183 cable and standard NMEA2000 Micro drop cable (male). Taking its power from the NMEA2000 network, and providing full galvanic isolation between the NMEA0183 and NMEA2000 networks, iKonvert is the perfect solution for all NMEA conversions.
For customers that want to take this converted data in to a computer, please consider theiKonvert USB gateway, that features an integral USB cable that is compatible with all of the popular operating systems (Windows/Mac/LINUX/Android).
Features:
The Digital Yacht iKonvert NMEA 2000 Gateway with ISO Interface is a versatile and compact device designed to facilitate seamless communication between modern NMEA2000 systems and legacy NMEA 0183 equipment. It enables bi-directional data conversion, allowing users to connect new NMEA2000 devices such as multifunction displays and autopilots with older sensors, VHF radios, and instruments. This flexibility enhances the integration of various marine navigation and communication systems, providing a reliable solution for complex vessel setups. The device is powered directly from the NMEA2000 network, ensuring straightforward installation without the need for external power sources. Full galvanic isolation between networks ensures safe and interference-free data transfer, maintaining signal integrity across different systems.
Designed with user convenience in mind, the iKonvert features a simple mode selection process via internal DIP switches. Users can easily configure the device for specific applications such as AIS, GPS, wind sensors, or instrument data. Once set, the unit automatically applies the chosen conversion mode on power-up, simplifying setup and operation. The device includes integral NMEA0183 and NMEA2000 cables, making it easy to connect to existing systems without additional adapters. Its rugged housing and compact size enable easy mounting in tight spaces onboard. For users needing computer interface options, the iKonvert USB gateway version offers compatibility with Windows, Mac, Linux, and Android operating systems through an integrated USB cable, expanding its versatility even further.
Whether managing real-time navigation data, AIS signals, or instrument information, the Digital Yacht iKonvert NMEA 2000 Gateway with ISO Interface provides a dependable solution for integrating diverse marine electronics. Its feature set includes full galvanic isolation, opto-isolated NMEA0183 interface, and support for multiple data modes, ensuring accurate and safe data exchange. The device's straightforward configuration and robust construction make it suitable for a wide range of vessel types and electronic setups, enhancing navigation safety and system interoperability. With its intelligent mode management and minimal wiring requirements, the iKonvert simplifies the challenge of connecting various marine electronics and ensures your systems work harmoniously, regardless of make or age.
Features:
