SKU:79012

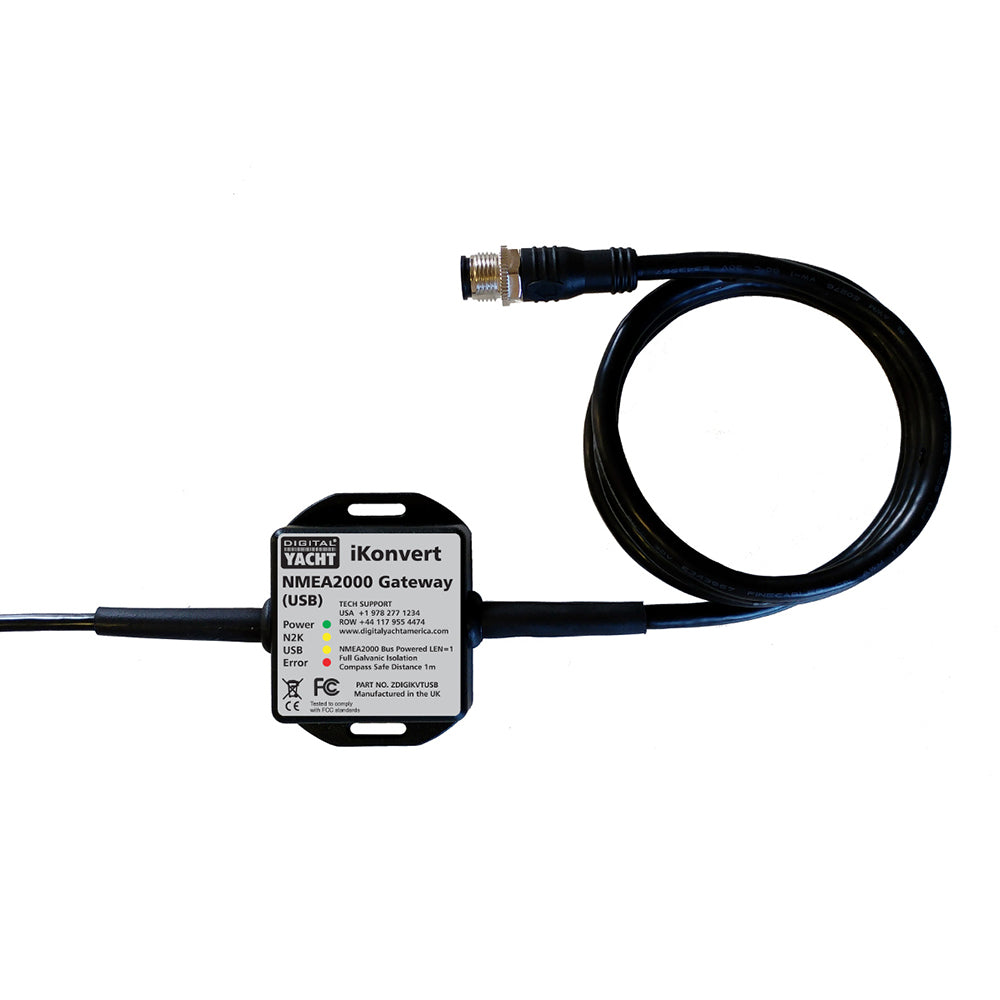

iKonvert with USB Interface
The iKonvert NMEA2000-0183 Gateway/Converter is an intelligent and flexible gateway for allowing software applications to read/write NMEA2000 data, either as RAW binary PGN data for ultimate analysis and control or converted to the older and more commonly supported NMEA0183 data.
Every popular Marine Navigation application that runs on PC/MAC/LINUX computers, can read NMEA0183 data and for all of those programs, iKonvert provides a simple, reliable and cost effective way to access the navigation data on an NMEA2000 network. Simply set the DIP switches inside iKonvert to the required data mode that you want to use and iKonvert will extract the selected data from the NMEA2000 network and provide them to your marine application in a format and at a baud rate they support.
For developers creating new applications or who know how to decode NMEA2000 PGNs, iKonvert can be easily set to its RAW Mode where data can be read/written to using a simple serial data format that we publish on ouriKonvert Github site. No special libraries or proprietary code are required to integrate iKonvert, which has attracted the interest of a number of developers and it is already compatible with CanBoat and the popular Signal K Node Server.
Digital Yachts iKonvert Gateway is housed in a compact and easy to mount housing, with an integral USB cable and standard NMEA2000 Micro drop cable (male). Taking its power from the NMEA2000 network, and providing full galvanic isolation between the USB interface and NMEA2000 network, iKonvert operates at a baud rate of 230KB in RAW mode and 4.8KB, 38.4KB or 115KB in NMEA0183 conversion modes. All modes can be simply selected using the internal DIP switches with no special configuration software or firmware changes required.
iKonverts USB interface features an FTDI chip that has the most reliable and compatible USB drivers for all of the popular operating systems (Windows/Mac/LINUX/Android), whilst an ISO Version of iKonvert will soon be released for direct connection between NMEA2000 and NMEA0183 systems.
Features:
The Digital Yacht iKonvert ZDIGIKVTUSB is a versatile and compact NMEA2000 to NMEA0183 gateway designed for seamless marine navigation data integration. Powered directly from the NMEA2000 network, this device features galvanic isolation to ensure signal integrity and prevent interference. Its high-speed USB 2.0 interface, equipped with an FTDI chip, provides reliable compatibility across Windows, MacOS, Linux, and Android platforms, making it suitable for a wide range of marine applications. The device includes integral USB Type A and NMEA2000 Micro (Male) cables, simplifying installation and setup. Users can effortlessly switch between data modes using internal DIP switches, allowing easy configuration for raw binary PGN data or converted NMEA0183 sentences. This flexibility makes the iKonvert ideal for both existing navigation systems and custom applications requiring raw data access. The device supports multiple baud rates, including 230KB in RAW mode and up to 115KB in NMEA0183 conversion mode, ensuring compatibility with various system requirements. For developers, iKonvert offers an open RAW mode with data formats published on GitHub, enabling integration without proprietary libraries and compatibility with popular tools like CanBoat and Signal K Node Server. Its small form factor makes it easy to mount in tight spaces onboard, and its robust design ensures reliable operation in demanding marine environments. With the upcoming ISO version, Digital Yacht will expand its connectivity options to include direct NMEA2000 to NMEA0183 interfacing, further enhancing its versatility for marine data exchange. Overall, the iKonvert ZDIGIKVTUSB provides a reliable, flexible, and cost-effective solution for marine navigation data conversion and integration, suitable for both professional and hobbyist applications seeking a straightforward turnkey device or a customizable gateway for complex systems.
Features:
