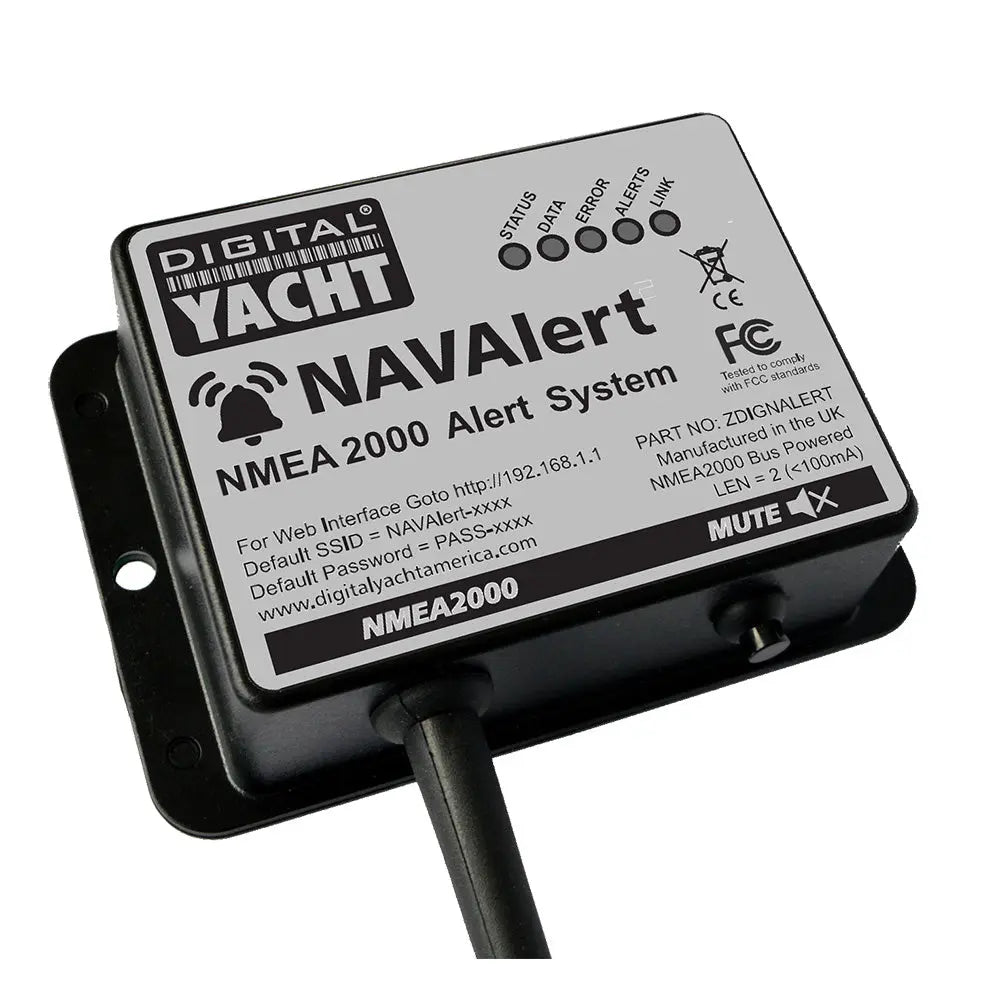

Digital Yacht NavAlert NMEA Monitor & Alarm System ZDIGNALET

NavAlert NMEA Monitor Alarm System

NavAlert is Digital Yachts latest innovation and allows an alarm to be set for any parameter thats available on the boats NMEA 2000 network. That could be navigation data such as depth, heading, or speed, as well as electrical data such as voltage and engine/generator data including temperature, pressure, tank levels, fuel flow, etc.

It connects anywhere on the NMEA 2000 network and takes power from this connection, so installation is super simple. A local WiFi network is created by NavAlert, so setup is possible via any smartphone, tablet, or PC. Simply choose the parameter to monitor and set an alarm level.

Alarms/Alerts

Integrated into NavAlert is a custom alarm for anchor drift using an algorithm to calculate the optimum drift radius based on depth and the scope of the chain for reliable notifications. Theres also an anti-collision alarm based on CPA (closest point of approach) and TCPA (time to the closest point of approach) AIS data from a connected AIS. These alerts can also be monitored through the wireless interface with attractive graphical displays of current status.

Alarms can also generate an SMS message, which can be relayed through Digital Yachts 4GXtream internet connectivity solution, allowing remote monitoring, which is great for feeling secure that the anchor is holding well when enjoying a lunch ashore. Alarms are independent of any alarms set on a plotter, allowing NavAlert to operate even without a primary multi-function display being powered up (an important feature for power-limited sailboats).

Alerts can also be relayed to compatible multi-function devices (Garmin supports this function) for a pop-up data window indicating an alert and the ability to acknowledge it.

*NavAlert is universal, using the industry standard NMEA 2000 data protocol, so it will integrate with all leading brands and systems.

Operation

The operation is simple. Simply search for the WiFi network that NavAlert creates and connect via a smartphone or tablet. Open a browser and connect to NavAlert, and users are presented with a clear graphical interface allowing easy setup, configuration, and viewing of the alerts and network data. NavAlert constantly monitors the whole network, so alert parameters can be set for any variable.

Users can configure the NavAlert through its simple web interface. Just open a web browser, enter the NavAlerts IP address, and users can change the network name and password, or even merge the WiFi to an existing WiFi network on board So no complicated programming software or app is required.

Features:

• Multiple parameters can be monitored

Specifications:

• Universal NMEA 2000 alarm and monitoring solution
• Set a configurable audio and visual alarm for any parameter on the NMEA 2000 network for instance: shallow depth, low fuel level, off course, engine temp, tank levels, low voltage, etc
• Relay the alert via the NMEA 2000 bus to a Garmin multi-function display to deliver a popup alarm window
• SMS alerting through Digital Yachts 4G Xtream system to a mobile ideal for remote monitoring of the boat.
• Built-in unique anchor drift alarm
• Built-in AIS collision avoidance alarm

Whats In the Box:

• 1m NMEA2000 drop cable
• WiFi antenna built-in

The Digital Yacht NavAlert NMEA Monitor & Alarm System ZDIGNALET provides comprehensive real-time monitoring and alert capabilities for vessels equipped with NMEA 2000 networks. This innovative system allows boat owners and operators to set customizable alarms for a wide range of parameters, including depth, heading, speed, voltage, engine temperature, pressure, tank levels, and fuel flow. With seamless integration, NavAlert connects directly to any point on the NMEA 2000 network, drawing power and simplifying installation, making it ideal for both new and existing systems.
NavAlert creates a dedicated WiFi network that can be accessed via smartphones, tablets, or PCs through a simple web interface. Users can easily configure alerts, set alarm thresholds, and view real-time data using intuitive graphical displays. The system's flexibility extends to its ability to monitor multiple parameters simultaneously, ensuring that critical boat systems and navigation data are always under surveillance.
One of the standout features of the NavAlert system is its built-in anchor drift alarm, which employs an advanced algorithm to calculate the optimal drift radius based on depth and chain scope, providing reliable notifications if the anchor begins to drift. Additionally, the integrated AIS collision avoidance alarm uses CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach) data to alert users of potential collision risks. These alarms can be monitored remotely via SMS when paired with Digital Yachts 4GXtream internet connectivity, allowing boaters to stay informed even when ashore or away from the vessel.
Furthermore, the NavAlert system supports alerts from compatible multi-function displays, such as Garmin, which can display popup notifications and allow acknowledgment of alerts directly on the device. The system’s industry-standard NMEA 2000 protocol ensures broad compatibility with leading marine electronics brands and systems, making it a versatile addition to any marine setup. The included accessories, such as a 1-meter NMEA 2000 drop cable and built-in WiFi antenna, facilitate quick and straightforward installation. Overall, the Digital Yacht NavAlert NMEA Monitor & Alarm System offers a reliable, flexible, and user-friendly solution for enhancing vessel safety, security, and operational awareness.

Features:

• Supports monitoring of multiple parameters including depth, heading, speed, voltage, engine temperature, pressure, tank levels, and fuel flow

• Configurable audible and visual alarms for various critical parameters

• Wireless WiFi interface for easy setup and real-time data viewing via smartphones, tablets, or PCs

• Customizable anchor drift alarm with advanced drift calculation algorithm

• AIS collision avoidance alarm based on CPA and TCPA data

• Remote SMS alerting via Digital Yachts 4G Xtream for off-site monitoring

• Integration with Garmin multi-function displays for popup alarms and acknowledgment

• Industry-standard NMEA 2000 protocol ensures compatibility with leading marine electronics

• Simple web-based configuration for network and alarm settings

• Includes 1m NMEA 2000 drop cable and built-in WiFi antenna for straightforward installation
