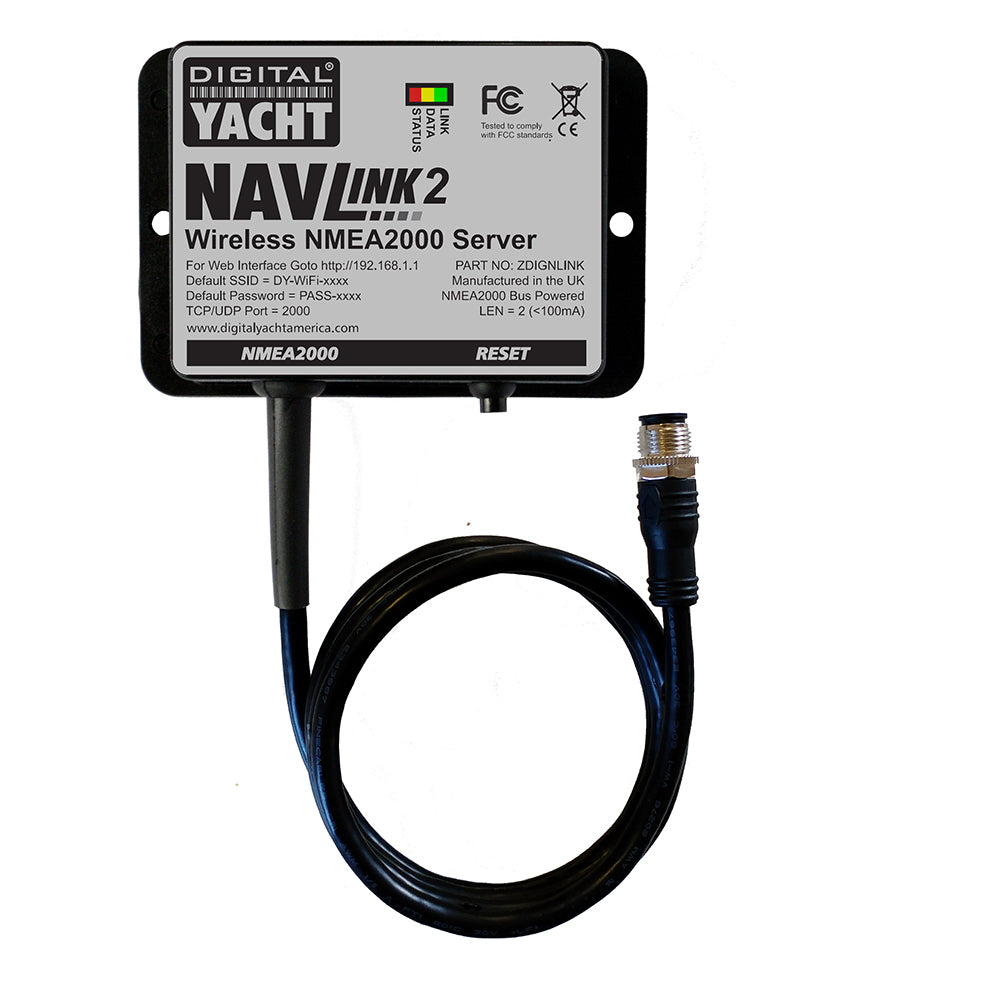

Digital Yacht NavLink 2 NMEA 2000 to WiFi Gateway for Marine Navigation and App Integration

NavLink 2

NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed to make NMEA 2000 navigation data available for apps on smartphones, tablets, iPads and PCs.

Features:

NavLink 2 is an easy to fit NMEA 2000 to Wifi server designed so that NMEA 2000 navigation data can be made available for apps on smartphones, tablets, iPads and PCs. Installation takes seconds as a result of direction connection to the NMEA 2000 back bone and self-powered from the data network.

Once installed, it creates a local WiFi network for devices to connect or can be programmed to join an existing wireless network if one is already installed. This is ideal for devices like the Furuno wireless radar which require operation through their own dedicated network but require NMEA 2000 data integration for charting apps.

NavLink 2 now works with the popular Navionics Boating App forApple iOSandAndroid.Therefore allowing display of GPS and AIS data on your Navionics charts.

Specifications:

• NMEA 2000 to WiFi server
• Self powered from NMEA 2000 bus fits in seconds
• Supports TCP/IP and UDP connection modes
• Provides AIS, navigation and instrument data to apps
• Compatible with all popular apps like iNavX, TimeZero, Weather 4D, Navionics, SailGrib,NavLink, iSailor, SeaPilot, AquaMap etc
• Up to 7 connected devices
• Compatible with Windows, Linux, MAC OS, iOS and Android
• Easy web interface for programming
• Password protected
• Can act as dedicated wireless server or rather can connect to an existing wireless network
• Diagnostic data display mode and LED status lights
• Internal hi gain WiFi antenna
• Super-fast 230KBs operation
• Optional raw data mode for developers and likewise advanced users
• Supplied with NMEA 2000 cable

The Digital Yacht NavLink 2 (Part Number: ZDIGNLINK) is a versatile and easy-to-install NMEA 2000 to WiFi server designed to enhance marine navigation data accessibility. It allows seamless sharing of GPS, AIS, and instrument data with smartphones, tablets, iPads, and PCs, providing real-time information for navigation and charting apps. The device connects directly to your NMEA 2000 backbone with minimal effort, powered through the data bus, and creates a secure local WiFi network or joins an existing wireless network, offering flexible connectivity options. Its compatibility with popular apps like Navionics, iNavX, TimeZero, Weather 4D, SailGrib, and others ensures broad usability for navigation, weather, and AIS data display on multiple devices simultaneously, supporting up to seven connections. The NavLink 2 features a straightforward web interface for configuration, password protection for security, and diagnostic LED indicators for easy troubleshooting. Its internal high-gain WiFi antenna provides fast data transfer speeds up to 230KB/sec, ensuring smooth and responsive data streaming. Advanced users can utilize the optional raw data mode for custom development or integration projects. Whether used as a dedicated wireless server or connected to an existing network, the NavLink 2 offers flexible deployment options suitable for a wide range of marine electronic setups. Supplied with a NMEA 2000 cable, this device is ideal for integrating your boats' navigation systems with modern mobile and desktop applications, enhancing situational awareness and decision-making at sea.

Features:

• NMEA 2000 to WiFi server for marine navigation data sharing

• Self-powered from NMEA 2000 bus for quick installation

• Supports TCP/IP and UDP connection modes for versatile communication

• Provides AIS, navigation, and instrument data to multiple apps

• Compatible with popular navigation and charting apps like Navionics, iNavX, and TimeZero

• Supports up to 7 connected devices for simultaneous data access

• Operates on Windows, Linux, Mac OS, iOS, and Android platforms

• User-friendly web interface for easy programming and configuration

• Password protection for secure data access

• Can act as a dedicated wireless server or connect to existing networks

• Diagnostic data display mode with LED status indicators

• Internal high-gain WiFi antenna for reliable signal strength

• Fast data transfer rate up to 230KB/sec for smooth performance

• Optional raw data mode for advanced users and developers

• Includes NMEA 2000 cable for straightforward installation
