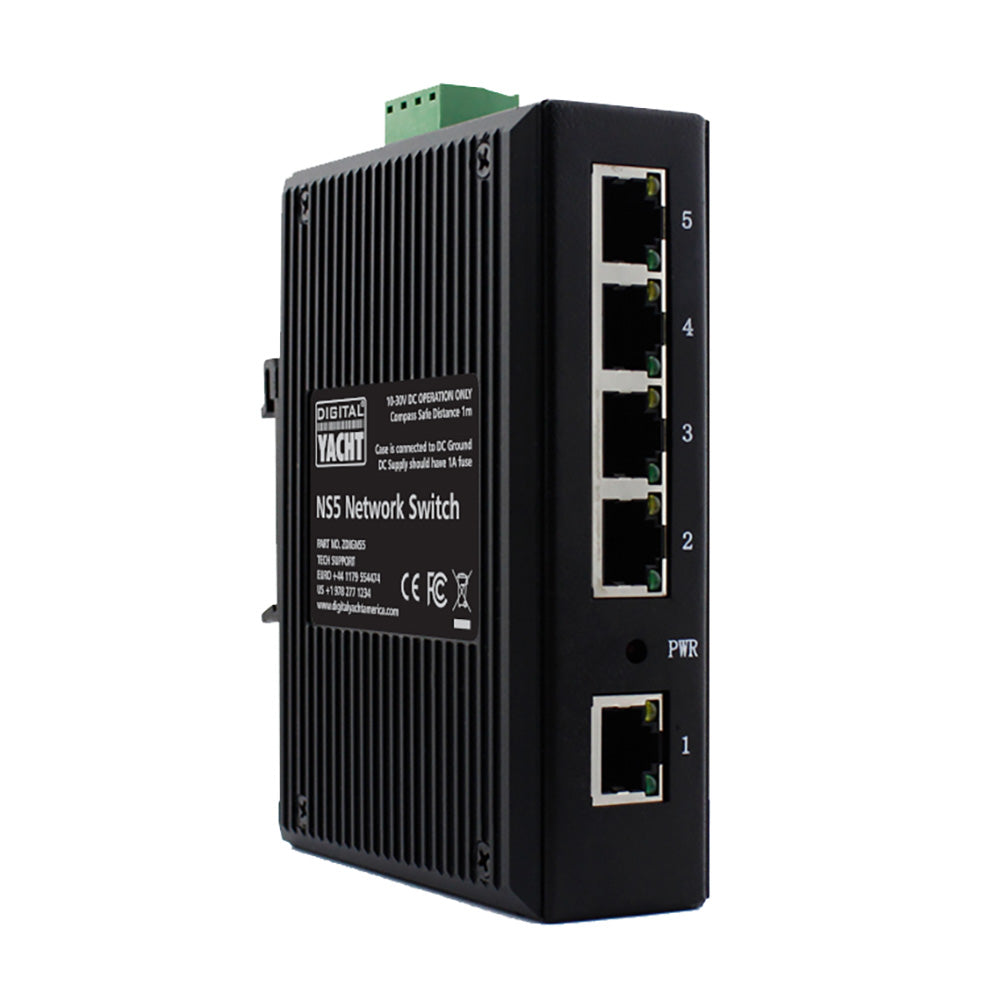

Digital Yacht NS5 5 Port Marine Network Switch for Reliable Onboard Ethernet Connectivity

NS5 5 Port Marine Network Switch

More and more boats now have a wireless router fitted or utilize devices like our 4G Connect for internet connectivity. For optimum data transfer speed, a wired Ethernet connection still offers the fastest and most reliable network connection onboard a boat, and for Streaming TV, VOIP, Security Cameras, and other data-intensive services we always recommend using a wired connection.

Our NS5 Network Switch provides a simple and rugged solution to increasing the number of wired Ethernet connections on the vessel. Designed to operate from a 9v to 36v DC supply, with dual redundancy power supply design, a DIN rail mount, and five RJ45 10/100 Ethernet ports, the NS5 allows you to reliably expand your boats Ethernet network.

Installation could not be easier, simply connect one of the NS5s RJ45 sockets to a LAN socket on our 4GConnect or4GXtreamrouters, using a normal network cable and wire the NS5 directly to the boats 12v or 24v DC supply. Our 4G router will continue to provide IP addresses to any device plugged into the NS5 (via DHCP) and you can immediately see the status of all the Ethernet connections by the flashing Yellow and Green LEDs on each of the NS5s ports.

Specifications:

• 5 Port Network Switch
• 12/24v DC low power operation
• Dual redundancy power supply design
• Connects to the router via RJ45 Cat 5/6 network cable connection
• Supports 10/100 base-T
• DIN Rail (IEC/EN 60715 35 7.5mm) mounting bracket and 100mm rail included
• Status indicators for power and network link status
• Version: NMEA0183, NMEA2000

The Digital Yacht NS5 5 Port Marine Network Switch is designed to enhance your boat's network capabilities with a rugged, reliable solution for expanding Ethernet connections onboard. Featuring five RJ45 10/100 Ethernet ports, the NS5 seamlessly connects your marine devices to your existing network, supporting high-speed data transfer for streaming TV, VOIP, security cameras, and other data-intensive applications. Operating from a 9V to 36V DC supply, its dual redundancy power supply and DIN rail mounting make installation straightforward and dependable in marine environments. Simply connect one of the NS5's RJ45 ports to your router using a standard network cable, then wire the switch directly to your boat's 12V or 24V DC power system. The NS5's status LEDs display power and network link status, allowing for easy monitoring of connection health at a glance. Its compatibility with NMEA0183 and NMEA2000 protocols ensures seamless integration with marine navigation and communication systems. This switch's robust build and straightforward installation make it an ideal choice for boat owners seeking a reliable Ethernet expansion option that maintains optimal data speeds and network stability even in demanding marine conditions. The NS5's compact design and DIN rail mounting compatibility allow for flexible installation options in tight spaces or dedicated equipment panels, ensuring your onboard network remains organized and efficient. Whether upgrading an existing network or establishing a new one, the Digital Yacht NS5 provides a dependable, high-performance solution for marine Ethernet networking needs.

Features:

• Five RJ45 10/100 Ethernet ports for expanded onboard connectivity

• Operates from 9V to 36V DC with dual redundancy power supply

• Supports high-speed data transfer for streaming, VOIP, and security systems

• DIN rail mounting bracket included for flexible installation

• Simple setup: connect to router and power supply with standard network and power cables

• Status LEDs for power and network link monitoring

• Supports NMEA0183 and NMEA2000 protocols for marine integration
