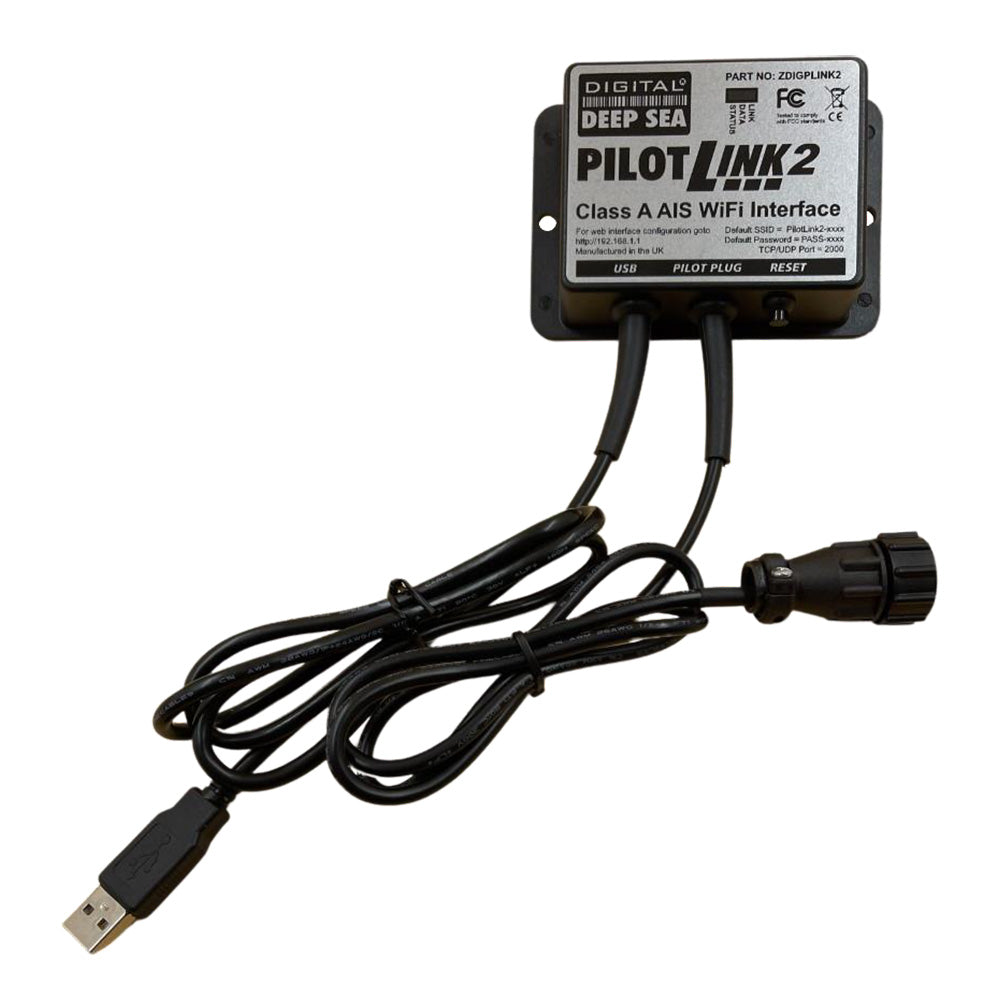

Digital Yacht PilotLINK2 Class A Pilot Plug WiFi Interface for Marine Data Access

PilotLINK2 Class A Pilot Plug WiFi Interface

There are well over 100,000 Class A AIS systems installed on vessels globally. While the latest Class A AIS transponders (like the Digital DeepSea CLA2000) already have a wireless interface incorporated for iPad and tablet connectivity, many systems just use a standardized Pilot Plug wired interface. This Amphenol standard multi-pin design allows NMEA AIS and GPS data to be accessed from the transponder and pilots and delivery captains would use a simple USB interface cable for their personal PC-based ECDIS system. However, more and more captains now choose to use an iPad or tablet so need wireless connectivity.

PilotLINK2 allows these Class A transponders to interface with the latest range of mobile devices including iPhones, tablets, and PCs/MACs. Applications range from maritime pilots to survey ship charter users who may want access to the ships AIS and GPS data.

Features:

• Connects to any standard Pilot Plug connector
• USB powered for easy portability power from any USB source, adaptor, or power pack
• Creates secure password protected wifi network
• Can also join another wifi network if preferred
• Easy web interface with useful diagnostics display and Class A static, dynamic, and voyage data displays
• Works with 100s apps iSailor, Navionics, iNAVx, NavLINK, TZ iBoat, Imray, NV Charts, AquaMaps, Weather 4D, etc
• TCP/IP and UDP protocols supported
• The raw data log function

Interface

Set up of PilotLINK is simple using any web browser on the connected device. View data, set up wireless passwords or join another wireless network and also view Class A AIS status. Your favourite apps connect using TCP/IP or UDP protocols.

The data monitor shows a list of raw NMEA data. You can also log this data for analysis if required.

The Digital Yacht PilotLINK2 Class A Pilot Plug WiFi Interface provides a reliable solution for accessing NMEA AIS and GPS data from standard Class A transponders using wireless connectivity. Designed to connect seamlessly to any standard Pilot Plug connector, this device enables maritime professionals such as pilots, surveyors, and vessel operators to transmit critical navigation data to mobile devices like iPads, tablets, and PCs/MACs. Its compatibility with a wide range of applications including iSailor, Navionics, and Weather 4D makes it versatile for various maritime operations. The PilotLINK2 is USB powered, ensuring easy portability and flexible power options from any USB source or power pack. It creates a secure, password-protected WiFi network, allowing users to connect multiple devices without compromising security. Additionally, it supports joining existing WiFi networks, which is ideal for integrated vessel systems or specific operational environments. The device features an intuitive web interface accessible via any web browser, offering diagnostics, Class A AIS status, and data display options including static, dynamic, and voyage data. Its support for TCP/IP and UDP protocols ensures compatibility with numerous maritime applications and data logging capabilities, including raw NMEA data analysis. The PilotLINK2’s simple setup involves connecting the device via the Pilot Plug, powering it through USB, and configuring network settings through a web browser. This streamlined process makes it accessible even for users with minimal technical experience. Overall, the Digital Yacht PilotLINK2 enhances vessel navigation and data management by providing a flexible, portable, and secure wireless interface for Class A AIS transponders, significantly improving real-time data access for maritime professionals.

Features:

• Connects to any standard Pilot Plug connector

• USB powered for portable use from any USB source or power pack

• Creates secure, password-protected WiFi network

• Ability to join an existing WiFi network

• User-friendly web interface with diagnostics and data displays

• Compatible with hundreds of maritime apps including iSailor, Navionics, and Weather 4D

• Supports TCP/IP and UDP protocols for seamless integration

• Includes raw NMEA data logging for detailed analysis
