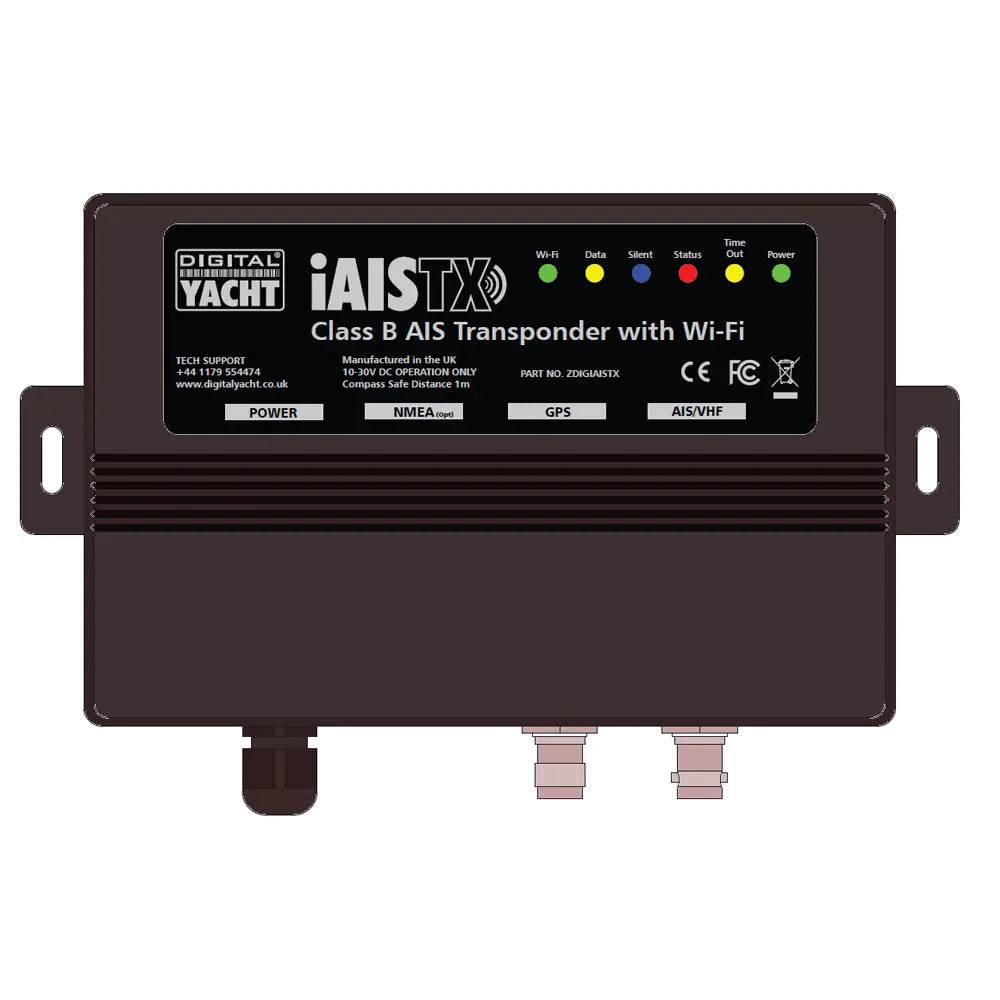

Digital Yacht ZDIGIAISTX AIS Class B Transponder External GPS Antenna

Digital Yacht ZDIGIAISTX: Advanced AIS Class B Transponder with External GPS Antenna

Digital Yacht ZDIGIAISTX AIS Class B Transponder External GPS Antenna

Digital Yacht ZDIGIAISTX AIS Transponder with Wireless Interface

Model: DIYZDIGIAISTX

• Class B AIS transponder with WiFi interface for phones, tablets, iPads and PCs
• Support for all the latest target types such as ATONs and AIS MOB devices
• Latest HF AIS technology for superior performance
• UDP and TCP/IP protocols supported for up to 7 connected devices
• Password protected, secure wireless connection
• Internal wifi antenna will typically footprint a boat up to 60ft in length
• Compatible with 100s apps. See our reviews at www.digitalyacht.net
• LED status indicators for wireless connection, data, status, time out, power and silent mode
• Easy embedded web interface for programming
• 12/24V operation and ultra-low 2W consumption

There are a growing number of boaters that use an iPad or Android tablet for their navigation tasks and thus the iAISTX was designed specifically for their needs. As a full function Class B AIS transponder with WiFi, it sends your boat position and identity data to other AIS equipped vessels. It also provides a wireless interface for mobile devices. This allows popular apps to display received data from other AIS equipped vessels.

iAISTX creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more. These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data. This includes CPA (closest point of approach) and TCPA (time to closest point of approach).

The tablet's browser (Safari, Chrome, etc.) provides a simple, embedded web interface for one time programming of the boat's identity and physical dimensions, required of all AIS transponders. Silencing the transmission and setting up wireless parameters such as passwords can also be done via this web interface. Installation is simple - just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boat's existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.

If you also want to get AIS data on to your MFD (chart plotter), then we recommend the iAISTX Plus which includes an additional NMEA 2000 interface.

What's in the Box:

• iAIS TX Class B AIS Transponder
• GPS antenna and cable

Reliable Marine Safety with Digital Yacht ZDIGIAISTX

The Digital Yacht ZDIGIAISTX stands out as a top-tier AIS Class B transponder designed to enhance marine safety through real-time vessel tracking and communication. This transponder provides clear identification and position data to other ships and coast stations, helping prevent collisions and improve situational awareness. By integrating the external GPS antenna, the device ensures accurate positioning even in challenging environments, making it ideal for both recreational and commercial vessels seeking dependable navigation support.

High-Performance External GPS Antenna Integration

The external GPS antenna included with the Digital Yacht ZDIGIAISTX significantly boosts signal reception, delivering precise location data regardless of weather or terrain. This enhancement is vital for vessels operating in busy or remote waterways where strong GPS signals are crucial. The antenna is designed for easy installation and robust operation in marine conditions, ensuring consistent performance. Together, the transponder and antenna form a comprehensive package that accurately tracks vessel movements and aids in navigation safety.

User-Friendly Features and Seamless Connectivity

Designed with user experience in mind, the Digital Yacht ZDIGIAISTX offers intuitive setup and clear data interface. It supports easy integration with existing marine electronics via standard NMEA 0183 and 2000 connections, providing flexible compatibility. The device transmits AIS signals at optimal power, balancing range and battery efficiency, which benefits long voyages. Additionally, its durable build resists harsh marine environments, ensuring longevity and reliable operation for boaters focused on safety and efficiency.
