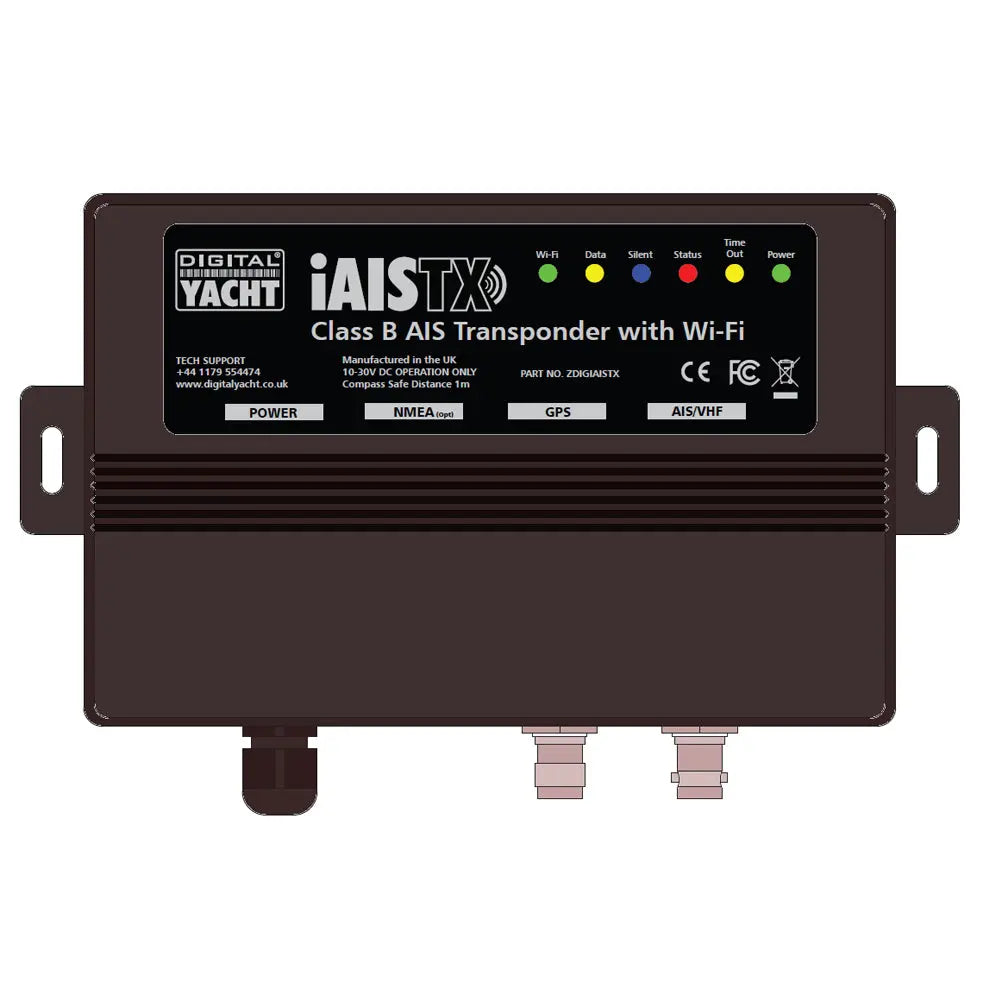

Digital Yacht ZDIGIAISTXPL AIS Class B Transponder NMEA2000 External GPS Antenna

Key Features and Benefits of Digital Yacht ZDIGIAISTXPL

Digital Yacht ZDIGIAISTXPL AIS Class B Transponder NMEA2000 External GPS Antenna

Digital Yacht IAISTX Plus Class B AIS Transponder with wireless interface and NMEA 2000

Model: ZDIGIAISTXPL

• Class B AIS transponder with wireless interface and NMEA 2000
• NMEA 2000 interface for plotter and multi function display AIS compatability
• Support for all the latest target types such as ATONs and AIS MOB devices
• Latest HF AIS technology for superior performance
• UDP and TCP/IP protocols supported for up to 7 connected devices
• Password protected, secure wireless connection
• Internal wifi antenna will typically footprint a boat up to 60ft in length
• Supplied with external GPS antenna and 33 ft cable which can be deck mounted or fitted to standard 1 in mount
• Compatible with 100s apps. See our reviews at www.digitalyacht.net
• LED status indicators for wireless connection, data, status, time out, power and silent mode
• Easy embedded web interface for programming

There are a growing number of boaters that use an iPad or Android tablet for their navigation tasks and thus the iAISTX Plus was designed specifically for their needs. This full function Class B AIS transponder with wireless interface and NMEA 2000, is able to send your boat position and identity data to other AIS equipped vessels. It also provides a wireless interface for mobile devices. This allows popular apps to display received data from other AIS equipped vessels.

This PLUS model with an NMEA 2000 interface (with integral drop cable) can integrate with modern plotters, instruments and multi-function displays to therefore provide AIS functionality.

iAISTX Plus creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more. These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach).

The tablet's browser (Safari, Chrome, etc.) provides a simple, embedded web interface for one time programming of the boat's identity and physical dimensions, required of all AIS transponders. Silencing the transmission and setting up wireless parameters such as passwords can also be done via this web interface. Installation is simple - just connect power (12/24v), mount the supplied external GPS antenna and connect to a separate dedicated VHF antenna or to the boat's existing VHF antenna using our SPL1500 or SPL2000 AIS-VHF antenna splitters.

Specifications

Dimensions20 x 14 x 4.5cm

Power
12/24vDC

Advanced AIS Class B Transponder Technology

The Digital Yacht ZDIGIAISTXPL is a cutting-edge AIS Class B transponder designed to enhance marine safety by transmitting and receiving vessel information. This device helps boaters monitor nearby traffic and avoid collisions by providing reliable real-time data, making navigation safer and more efficient. Its technology complies with all relevant maritime standards, ensuring compatibility and high performance under various sea conditions.

Seamless Integration with NMEA2000 Networks

This model features full NMEA2000 connectivity, allowing effortless integration with existing marine electronics. The Digital Yacht ZDIGIAISTXPL communicates seamlessly with compatible chartplotters, multifunction displays, and other vessel systems. This plug-and-play capability simplifies installation, eliminates complex wiring, and enhances overall system functionality for an integrated navigation experience.

High-Performance External GPS Antenna

The built-in external GPS antenna on the Digital Yacht ZDIGIAISTXPL ensures accurate and reliable position fixing in challenging marine environments. Its superior design maintains strong satellite signal reception, even in areas with signal obstructions or interference. This performance improves tracking accuracy and overall navigational confidence, making it a critical feature for safe and precise marine operations.
