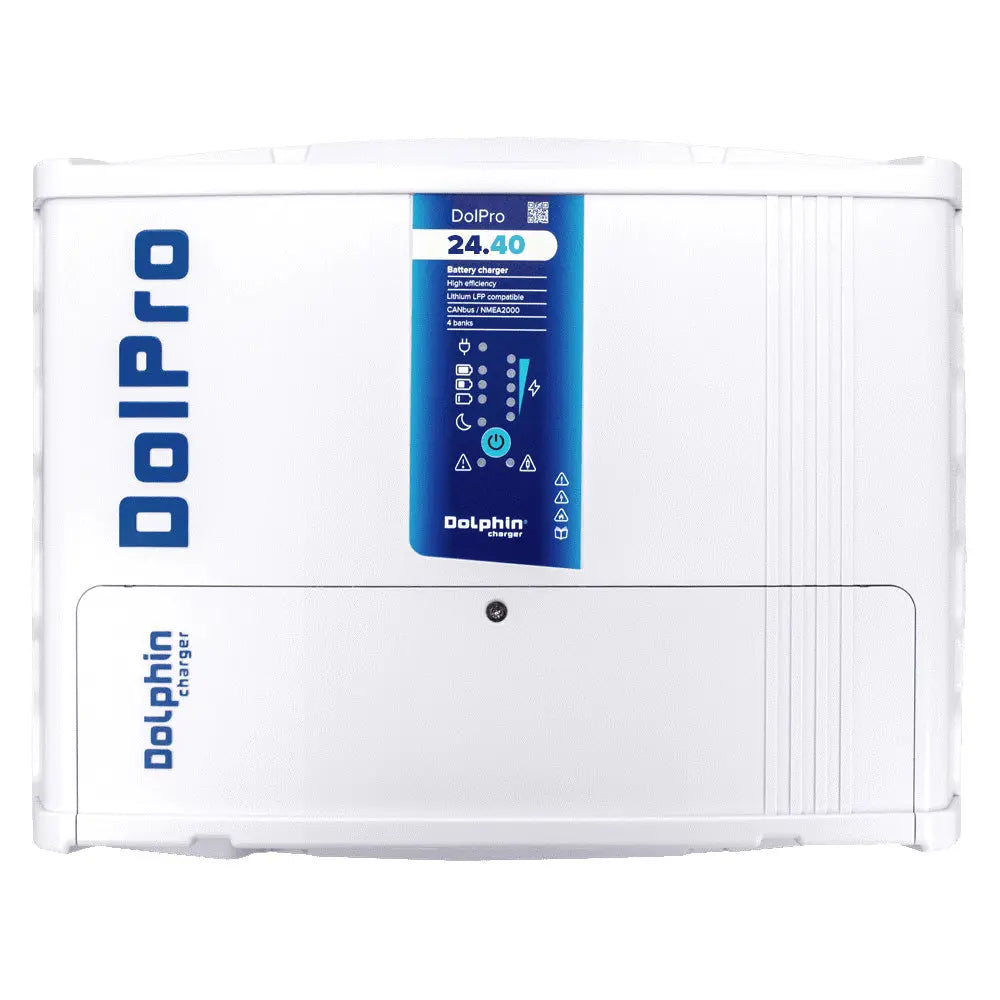

Dolphin Charger PRO Evo3 24V 40A Marine Battery Charger with NMEA 2000 Compatibility

PRO Evo3 - 24V - 40A

This range of Marine Battery Chargers is the result of the latest technological advancements in the world of power electronics. By comparison to the Dolphin Pro Chargers, an additional DC output has been added while reducing the overall dimensions by 16% (12v/90a, 24v/40a, 24v/60a) and 30% (24v/100a).

They are more compact and 30-60% lighter (9 lbs.) offering the highest power-to-space ratio on the market! With 4 independent isolated DC outputs and NMEA 2000 communication, the Dolphin PRO Evo3 meets the demands of todays leading boat builders and modern electrical systems.

Features:

• Ultra-compact and lightweight - Thanks to the new electronics this new generation of product is 30 to 60% lighter than the previous one. The weight of the 24-volt 100-amp unit is just under 9 Lbs.
• 4 Independent isolated outputs - All PRO EVO3 offer 4 independent isolated DC outputs. It allows to simplification of the charging system consisting of several battery banks.
• NMEA 2000 - NMEA 2000 plug-and-play communication skills. All PRO EVO3 chargers feature CAN communication ports including certified N2K port with latest PGEN.
• High-Efficiency DSP technology - PRO EVO3 Chargers deliver full power even at very high temperatures (up to 50C/122F). This no derating feature is unique on the market.
• Selectable Battery Chemistries - 8 Selectable charging profiles including Lead Acid, Gel, AMG, and Lithium-Ion batteries with temperature compensation.
• Ignition Protected - PRO EVO3 12.90 is now ISO 8846 and SAE J1171 certified.

The Dolphin Charger PRO Evo3 model offers advanced power management for marine applications, combining cutting-edge technology with compact design. This 24-volt, 40-amp charger features four independent isolated DC outputs, simplifying the management of multiple battery banks and ensuring reliable power distribution across your vessel. Its high-efficiency digital signal processor (DSP) technology maintains full charging capacity even in high-temperature conditions up to 122°F, eliminating the need for derating and ensuring optimal performance in challenging environments. Designed with modern boat builders in mind, the PRO Evo3 integrates seamlessly with NMEA 2000 networks via plug-and-play CAN communication ports, including a certified N2K port with the latest PGEN technology. This connectivity allows for easy integration into existing marine electrical systems, facilitating remote monitoring and control for enhanced operational convenience. The charger’s adaptable charging profiles accommodate various battery chemistries, including Lead Acid, Gel, AGM, and Lithium-Ion, with temperature compensation to optimize battery longevity and performance. Its compact size and lightweight construction—reducing weight by up to 60% compared to previous models—make it an ideal choice for space-constrained environments, with the 24-volt, 100-amp version weighing just under 9 pounds. Certified as ignition protected under ISO 8846 and SAE J1171 standards, the PRO Evo3 is built to meet rigorous safety and durability standards, ensuring reliable operation on demanding vessels. Whether upgrading existing systems or installing new ones, this charger provides a high power-to-space ratio, versatility in battery management, and advanced communication features tailored for modern marine electrical systems.

Features:

• Ultra-compact and lightweight design reduces weight by 30 to 60%, with the 24V 100A model weighing just under 9 pounds

• Four independent isolated DC outputs facilitate simplified management of multiple battery banks

• NMEA 2000 plug-and-play communication ports enable seamless integration with marine electronic systems

• High-efficiency DSP technology delivers full power output even at temperatures up to 122°F, with no derating

• Selectable charging profiles for Lead Acid, Gel, AGM, and Lithium-Ion batteries, including temperature compensation

• Certified ignition protected under ISO 8846 and SAE J1171 standards for safe marine operation
