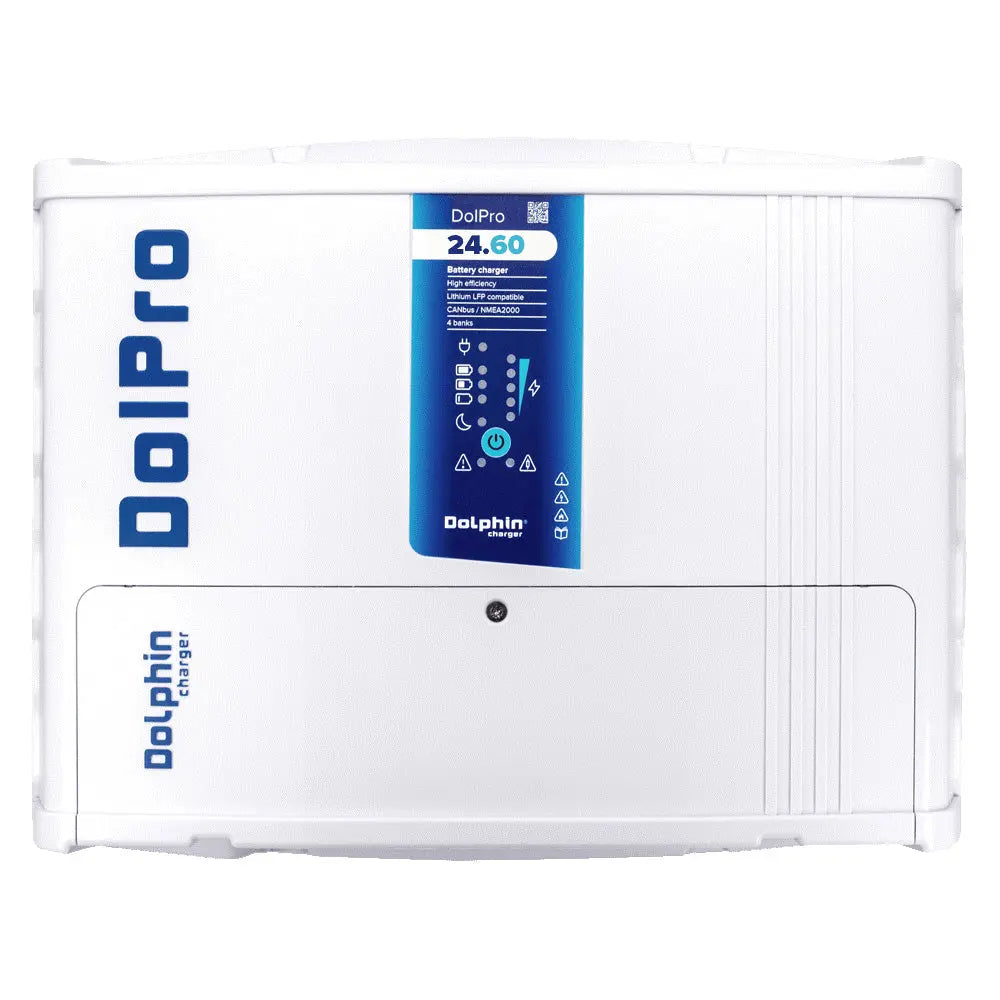

Dolphin Charger PRO Evo3 24V 60A Marine Battery Charger with NMEA 2000 Connectivity

PRO Evo3 - 24V - 60A

This range of Marine Battery Chargers is the result of the latest technological advancements in the world of power electronics. By comparison to the Dolphin Pro Chargers, an additional DC output has been added while reducing the overall dimensions by 16% (12v/90a, 24v/40a, 24v/60a) and 30% (24v/100a).

They are more compact and 30-60% lighter (9 lbs.) offering the highest power-to-space ratio on the market! With 4 independent isolated DC outputs and NMEA 2000 communication, the Dolphin PRO Evo3 meets the demands of todays leading boat builders and modern electrical systems.

Features:

• Ultra-compact and lightweight - Thanks to the new electronics this new generation of product is 30 to 60% lighter than the previous one. The weight of the 24-volt 100-amp unit is just under 9 Lbs.
• 4 Independent isolated outputs - All PRO EVO3 offer 4 independent isolated DC outputs. It allows to simplification of the charging system consisting of several battery banks.
• NMEA 2000 - NMEA 2000 plug-and-play communication skills. All PRO EVO3 chargers feature CAN communication ports including certified N2K port with latest PGEN.
• High-Efficiency DSP technology - PRO EVO3 Chargers deliver full power even at very high temperatures (up to 50C/122F). This no derating feature is unique on the market.
• Selectable Battery Chemistries - 8 Selectable charging profiles including Lead Acid, Gel, AMG, and Lithium-Ion batteries with temperature compensation.
• Ignition Protected - PRO EVO3 12.90 is now ISO 8846 and SAE J1171 certified.

The Dolphin Charger PRO Evo3 24V 60A marine battery charger represents the latest advancement in power electronics technology for marine applications. Designed to be ultra-compact and lightweight, this charger is 30 to 60% lighter than previous models, making it ideal for space-constrained environments on boats. Weighing just under 9 pounds, it offers a high power-to-space ratio, ensuring efficient energy management without adding significant weight to your vessel. The charger features four independent isolated DC outputs, simplifying the management of multiple battery banks and enhancing system flexibility for various marine electrical configurations.
The PRO Evo3 series includes advanced communication capabilities with built-in NMEA 2000 compatibility, enabling seamless plug-and-play integration with modern marine electronic systems. This communication standard allows for real-time monitoring and control, providing boat owners and technicians with vital information about battery status and charging performance. The charger employs high-efficiency DSP technology, ensuring full power output even at ambient temperatures up to 122°F (50°C), with no derating, which is a unique feature in this market segment. This guarantees consistent charging performance under demanding environmental conditions.
The charger supports a wide range of battery chemistries with eight selectable charging profiles, including Lead Acid, Gel, AGM, and Lithium-Ion batteries, with temperature compensation to optimize charging based on ambient conditions. Certified as ignition protected and compliant with ISO 8846 and SAE J1171 standards, the Dolphin PRO Evo3 is designed for safe installation in marine environments. Its versatile features and robust construction make it an ideal choice for modern boats requiring reliable, efficient, and space-saving battery charging solutions.

Features:

• Ultra-compact and lightweight design, reducing weight by up to 60% from previous models

• Four independent isolated DC outputs for flexible battery bank management

• NMEA 2000 plug-and-play communication for real-time system monitoring

• High-efficiency DSP technology ensures full power at temperatures up to 50°C (122°F)

• Eight selectable charging profiles supporting various battery chemistries including Lead Acid, Gel, AGM, and Lithium-Ion

• Temperature compensation for optimized charging based on ambient conditions

• Ignition protected design, ISO 8846 and SAE J1171 certified for marine safety
