SKU:100207

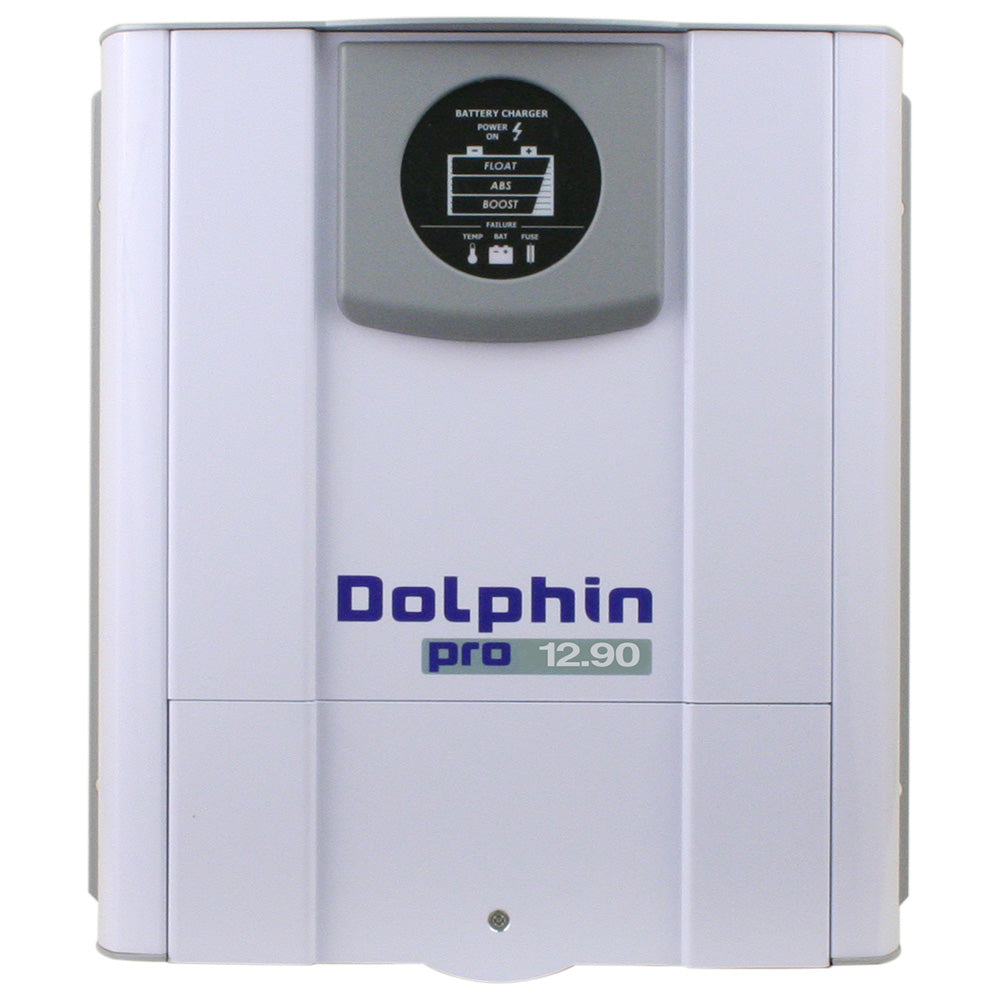

Pro Series Dolphin Battery Charger - 12V, 90A, 110/220VAC - 50/60Hz
The Dolphin Series of battery chargers has always been recognized for its outstanding quality, which the manufacturer is proud to support with a 2-year warranty. Due to production on a wide scale, Dolphin is able to offer high-quality, truly international battery chargers at a reasonable price.
The Pro Range, which allows battery banks of up to 1000 amps to be charged, can be equipped with an optional touch-view touchscreen. It provides an intuitive display of measurements as well as charging phases (boost, absorption, and float), the allocated available power, and possible operating faults. The Pro range is equipped with communication via CAN bus, which means it can be used professionally in all land and industrial energy management sectors.
Features:
Three-Stage Charging Curve
Bulk Stage: A high current is sent to the battery until it reaches approximately 80% of its full charge.
Absorption Stage: The voltage level is maintained and the current is reduced until the battery is 100% charged.
Float Stage: Voltage and current are reduced to maintain the battery. Float gives what the battery requires.
The Dolphin Charger Pro Series is a high-performance 12V, 90A battery charger designed for professional and industrial applications. Manufactured by Dolphin Charger, this unit is built to meet rigorous quality standards, including CE, UL, and ABYC certifications, and is supported by a 2-year warranty. Its robust construction features a lightweight, compact white aluminum powder-coated casing, making it suitable for demanding environments where reliable power management is essential.
This charger is equipped with advanced features such as a built-in TouchView remote control panel, replacing standard displays for enhanced user interaction. The LED display provides real-time monitoring and programming capabilities, offering clarity on charging phases, power allocation, and system faults. It also includes a temperature sensor that adjusts charging parameters based on battery temperature to optimize charging efficiency and battery lifespan. The unit's switch mode technology and three-stage charging curve—comprising bulk, absorption, and float stages—ensure a safe and thorough charging process, extending battery life and maintaining optimal performance.
The Dolphin Charger Pro Series supports communication via CAN bus, making it suitable for integration into professional land and industrial energy management systems. Its design accommodates charging for battery banks up to 1000 amps, making it versatile for large-scale energy storage and backup systems. Easy installation is facilitated by a simple four-screw mounting and an accessible removable panel, while the modern design ensures durability and aesthetic appeal. This charger is an ideal choice for users seeking a reliable, feature-rich solution for demanding battery management needs.
