SKU:100211

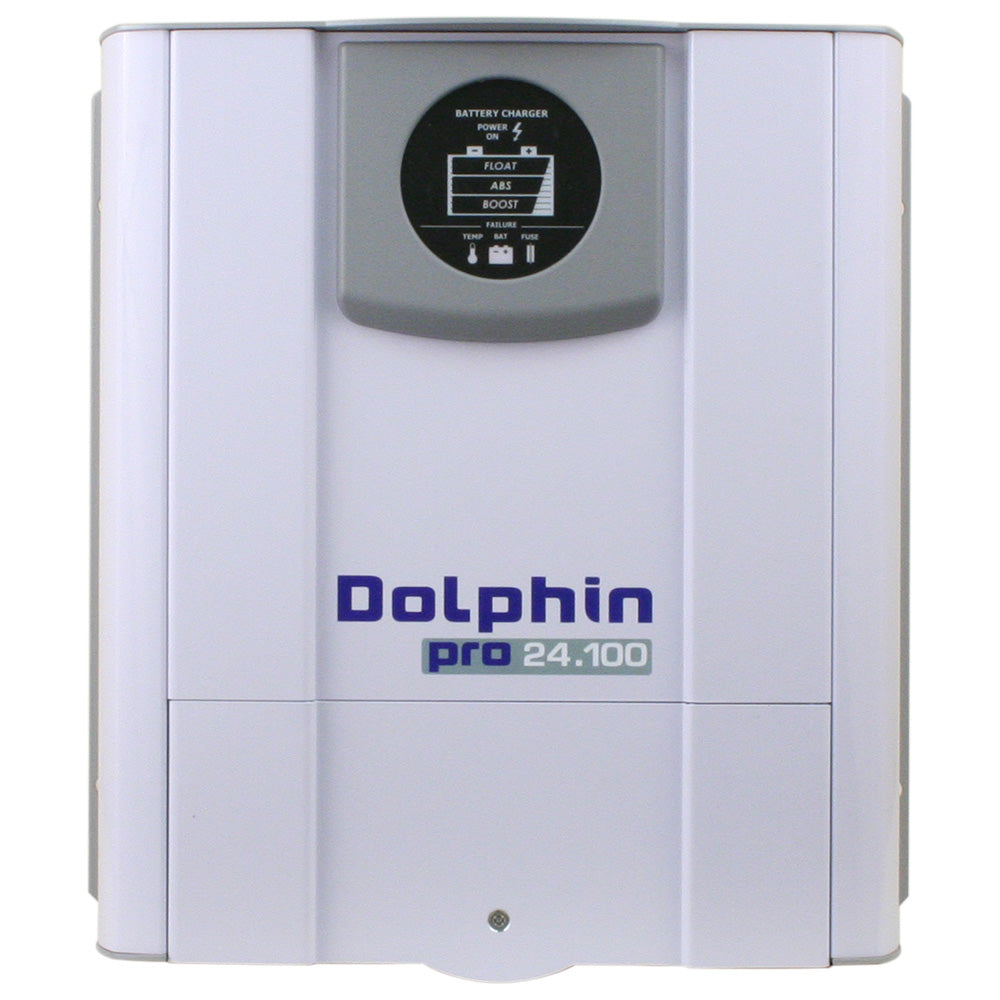

Pro Series Dolphin Battery Charger - 24V, 100A, 230VAC - 50/60Hz
The Dolphin Series of battery chargers has always been recognized for its outstanding quality, which the manufacturer is proud to support with a 2-year warranty. Due to production on a wide scale, Dolphin is able to offer high-quality, truly international battery chargers at a reasonable price.
The Pro Range, which allows battery banks of up to 1000 amps to be charged, can be equipped with an optional touchview touchscreen. It provides an intuitive display of measurements as well as charging phases (boost, absorption, and float), the allocated available power, and possible operating faults. The Pro range is equipped with communication via CAN bus, which means it can be used professionally in all land and industrial energy management sectors.
Features:
Three-Stage Charging Curve
Bulk Stage: A high current is sent to the battery until it reaches approximately 80% of its full charge.
Absorption Stage: The voltage level is maintained and the current is reduced until the battery is 100% charged.
Float Stage: Voltage and current are reduced to maintain the battery. Float gives what the battery requires.
The Dolphin Charger Pro Series model 99504 is a high-performance 24-volt, 100-amp battery charger designed for professional and industrial applications. Powered by a 230VAC input, this charger features advanced three-stage charging technology, which includes bulk, absorption, and float phases to ensure optimal battery health and longevity. Its compact and lightweight design, housed in a durable white aluminum powder-coated casing, makes it suitable for various installation environments. The integrated temperature sensor adjusts charging parameters based on battery temperature, enhancing safety and efficiency.
Equipped with a built-in TouchView remote control, the charger provides an intuitive interface for monitoring and managing charging functions. The LED display offers real-time updates on charging status, measurements, and fault conditions, giving users comprehensive control and visibility. This model supports universal AC input with automatic voltage switching between 115V and 230V, simplifying setup across different power systems. The charger also features a CAN bus communication protocol, making it compatible with sophisticated energy management systems in land and industrial sectors.
Installation is straightforward thanks to its four-screw mounting system and removable access panel, allowing easy maintenance. The Dolphin Pro Series complies with CE, UL, and ABYC standards, ensuring high safety and quality benchmarks. Its construction and manufacturing adhere to ISO 9002 quality standards, making it a reliable choice for demanding applications. Whether used in marine, industrial, or land-based energy systems, this charger guarantees efficient, safe, and consistent battery charging with a 2-year warranty for added peace of mind.
Features:
