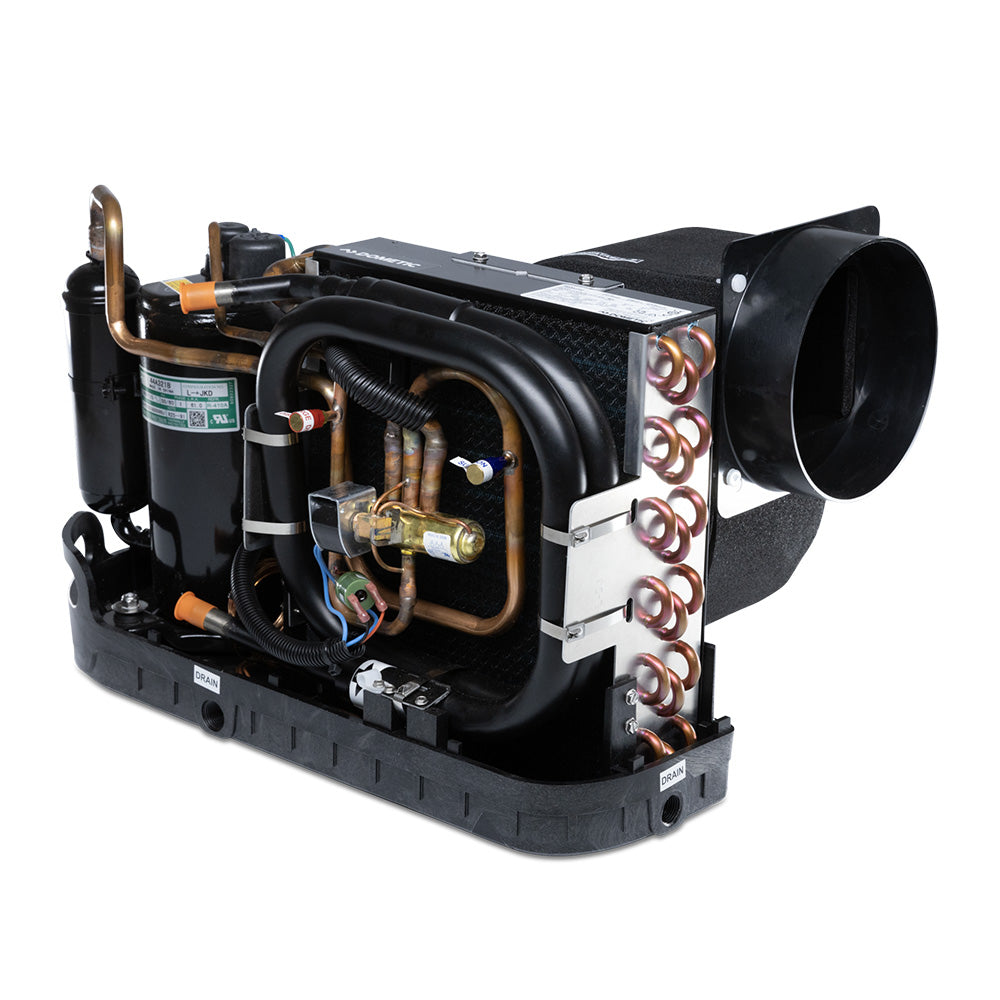

Dometic GT16 16,000 BTU Marine Air Conditioner with Digital Control Display, 115V - Part 9610007636

GT16 16,000 BTU Marine Air Conditioner with Digital Control Display - 115V

GT combines proven engineering with value-oriented positioning. Every unit includes an integrated digital display for temperature control and system monitoring. Available in 6,000, 10,000, and 16,000 BTU/h capacities with reverse cycle heating, GT delivers reliable climate performance in a complete package.

Designed as a drop-in replacement for older A/C systems, GT features rotatable blower positioning, R454B low GWP refrigerant, and compact dimensions for flexible installation. Multiple voltage configurations (115V/230V, 50/60Hz) provide compatibility across applications.

Features:

• R454B low GWP refrigerant
• Operates at 50 or 60Hz; lower voltage units will run 100-120 volts 50/60Hz and higher voltage units will run 208-240 volts 50/60Hz
• Special coating on the evaporator coil helps shed water more quickly, which minimizes corrosion
• Channels in drain pan guide water directly to multiple drain locations, regardless of boats heeling angle
• Rotate the blower up to 270 to find the perfect ducting angle using a single adjustment screw
• Critical components are easily accessible for simplified servicing
• Added VMD display

Quiet Operation

Multiple cushioned vibration mounts and specially designed mounting clips isolate unit vibration from the mounting surface, minimizing operating noise. Composite molded drain pan construction further reduces sound transmission. Optional compressor sound shield available for ultra-quiet operation.

Rapid Drainage

Rust-free composite drain pan features three drain locations for rapid condensate removal. Integrated channels guide water directly to drain ports regardless of vessel heeling angle, ensuring reliable drainage in all conditions.

Compact Size

GT delivers high BTU output in a compact footprint optimized for space-constrained installations. Low-profile design with no blower-motor overhang and integrated drain pan provides flexibility in mounting locations and clearances.

Technical Specifications:

• Capacity (BTU/h) - 16,000
• Voltage (VAC) - 115
• Cycle (Hz) /Phase (Ph) - 60/1
• Full Load Amps (FLA) Cool (A) - 10.3
• Full Load Amps (FLA) Heat (A) - 13.4
• Full Load Amps (FLA) Blower (A) - 1.6
• Locked Rotor Amps (LRA) - 61
• Max. Circuit Breaker (A) - 40
• Min Circuit Ampacity (A) - 25
• CO2 Equivalent - 0.15
• Refrigerant Type - R454B
• Max Height (in/cm) - 13.3/33.8
• Max Width - 21.5/54.6
• Max Depth - 13.3/33.8
• Min. Duct Size Dia. (in/cm) - 7/17.8
• Min. Supply Air Grille (sq in/cm) - 80/516
• Min Return Air Grille (sq in/cm) - 160/1032
• Net Weight (lbs/ kg) - 57.0/25.9
• Gross Weight (lbs/ kg) - 66.0/28.1

Dometic GT16 16,000 BTU Marine Air Conditioner, Part 9610007636, delivers dependable cooling and reverse-cycle heating for boats and other marine applications. The integrated digital control display provides convenient temperature adjustment and system monitoring, while the 115-volt configuration supports compatible vessel electrical systems. Designed as a drop-in replacement for older air-conditioning units, the GT16 combines proven Dometic engineering with flexible installation and straightforward service access.

The unit uses R454B low-GWP refrigerant and operates on 50 or 60 Hz power. Its rotatable blower can be adjusted through 270 degrees to help align ducting with the installation layout. A coated evaporator coil helps shed water quickly and minimize corrosion, while the composite drain pan uses guided channels and multiple drain locations to promote reliable condensate removal even when the vessel is heeling.

Quiet operation is supported by cushioned vibration mounts, vibration-isolating mounting clips, and a molded composite drain pan that helps reduce sound transmission. The compact, low-profile design provides high cooling output where installation space is limited, with no blower-motor overhang and easily accessible critical components for simplified maintenance. An optional compressor sound shield is available for installations requiring additional noise reduction.

Technical Specifications: The Dometic GT16 provides 16,000 BTU/h of capacity, 115 VAC power, single-phase 60 Hz operation, 10.3 amps full-load current in cooling mode, 13.4 amps in heating mode, and 1.6 amps for the blower. The locked-rotor current is 61 amps, with a maximum 40-amp circuit breaker and 25-amp minimum circuit ampacity. The unit weighs approximately 57 pounds net and 66 pounds gross. Minimum duct diameter is 7 inches; required supply and return air grille areas are 80 and 160 square inches, respectively.

Features:

• R454B low-GWP refrigerant supports a more environmentally conscious marine air-conditioning solution
• Integrated digital control display provides convenient temperature adjustment and system monitoring
• Reverse-cycle heating and cooling provide year-round climate control
• 115-volt, single-phase configuration operates on 50 or 60 Hz power
• Rotatable blower adjusts through 270 degrees for flexible duct routing
• Coated evaporator coil helps shed water quickly and minimize corrosion
• Composite drain pan includes guided channels and multiple drain locations for reliable condensate drainage
• Cushioned vibration mounts and mounting clips help reduce operating noise
• Compact low-profile design supports installations with limited available space
• Accessible critical components simplify inspection and servicing
