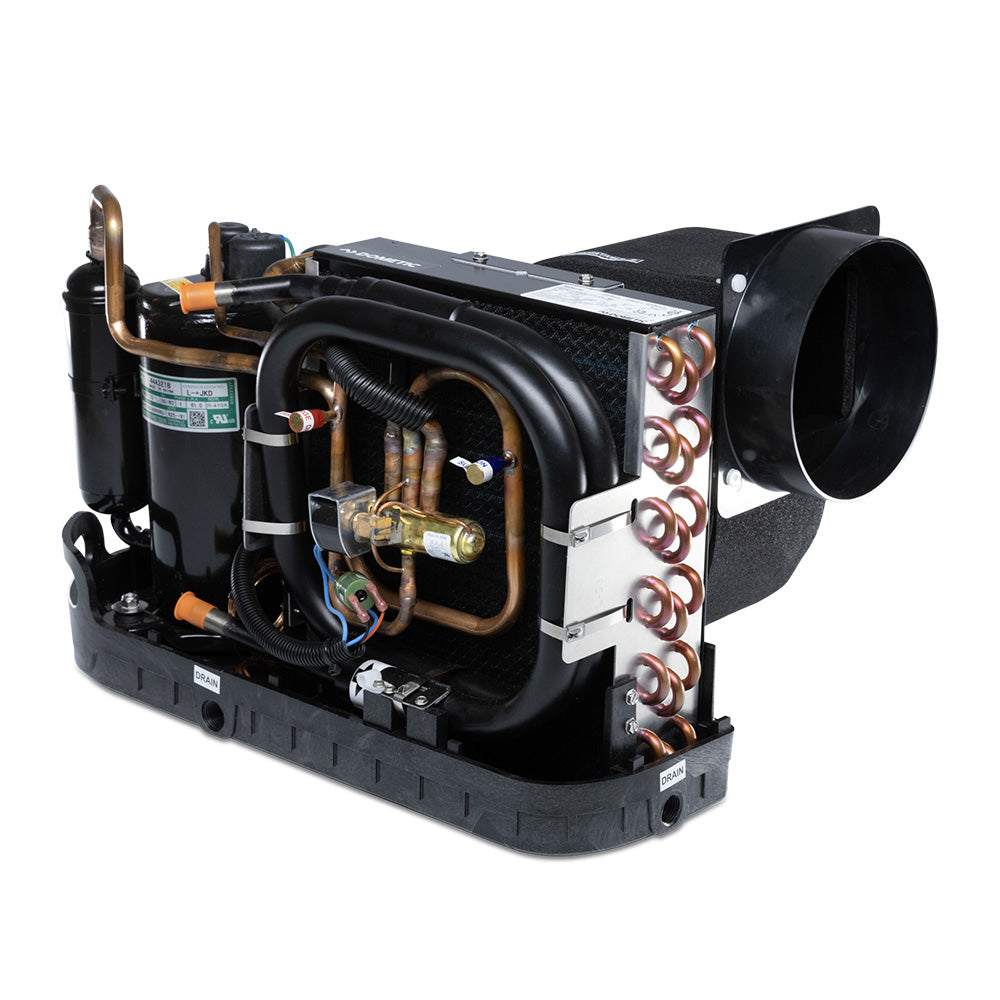

Dometic GT16 16,000 BTU Marine Air Conditioner with Digital Control Display, 230V

GT16 16,000 BTU Marine Air Conditioner with Digital Control Display - 230V

GT combines proven engineering with value-oriented positioning. Every unit includes an integrated digital display for temperature control and system monitoring. Available in 6,000, 10,000, and 16,000 BTU/h capacities with reverse cycle heating, GT delivers reliable climate performance in a complete package.

Designed as a drop-in replacement for older A/C systems, GT features rotatable blower positioning, R454B low GWP refrigerant, and compact dimensions for flexible installation. Multiple voltage configurations (115V/230V, 50/60Hz) provide compatibility across applications.

Features:

• R454B low GWP refrigerant
• Operates at 50 or 60Hz; lower voltage units will run 100-120 volts 50/60Hz and higher voltage units will run 208-240 volts 50/60Hz
• Special coating on the evaporator coil helps shed water more quickly, which minimizes corrosion
• Channels in drain pan guide water directly to multiple drain locations, regardless of boats heeling angle
• Rotate the blower up to 270 to find the perfect ducting angle using a single adjustment screw
• Critical components are easily accessible for simplified servicing
• Added VMD display

Quiet Operation

Multiple cushioned vibration mounts and specially designed mounting clips isolate unit vibration from the mounting surface, minimizing operating noise. Composite molded drain pan construction further reduces sound transmission. Optional compressor sound shield available for ultra-quiet operation.

Rapid Drainage

Rust-free composite drain pan features three drain locations for rapid condensate removal. Integrated channels guide water directly to drain ports regardless of vessel heeling angle, ensuring reliable drainage in all conditions.

Compact Size

GT delivers high BTU output in a compact footprint optimized for space-constrained installations. Low-profile design with no blower-motor overhang and integrated drain pan provides flexibility in mounting locations and clearances.

Technical Specifications:

• Capacity (BTU/h) - 16,000
• Voltage (VAC) - 230
• Cycle (Hz) /Phase (Ph) - 50-60/1
• Full Load Amps (FLA) Cool (A) - 5.5
• Full Load Amps (FLA) Heat (A) - 7.0
• Full Load Amps (FLA) Blower (A) - 0.8
• Locked Rotor Amps (LRA) - 27
• Max. Circuit Breaker (A) - 20
• Min Circuit Ampacity (A) - 13
• CO2 Equivalent - 0.15
• Refrigerant Type - R454B
• Max Height (in/cm) - 13.3/33.8
• Max Width - 21.5/54.6
• Max Depth - 13.3/33.8
• Min. Duct Size Dia. (in/cm) - 7/17.8
• Min. Supply Air Grille (sq in/cm) - 80/516

Dometic GT16 Marine Air Conditioner, Part Number 9610007638, delivers 16,000 BTU of reliable reverse-cycle heating and cooling for marine applications. The integrated digital control display provides convenient temperature adjustment and system monitoring, while the 230V configuration operates on 50 or 60Hz single-phase power. Designed as a drop-in replacement for older marine air-conditioning systems, this unit combines proven engineering with installation flexibility and dependable climate control.

The GT16 uses environmentally conscious R454B low-GWP refrigerant and includes a rotatable blower that adjusts up to 270 degrees for flexible duct routing. Its compact, low-profile design has no blower-motor overhang and incorporates an integrated composite drain pan, making it well suited for space-constrained installations. Critical components are easily accessible to simplify inspection, maintenance, and servicing.

Quiet operation is supported by cushioned vibration mounts, specialized mounting clips, and a molded composite drain pan that helps reduce vibration and sound transmission. An optional compressor sound shield is available for applications requiring additional noise reduction. The corrosion-resistant evaporator coil coating helps shed water quickly, while the rust-free drain pan uses integrated channels and three drain locations to promote rapid condensate removal, even when the vessel is heeling.

For installation planning, the Dometic GT16 requires a minimum 7-inch duct diameter and a minimum supply air grille area of 80 square inches. The system draws 5.5 amps in cooling mode, 7.0 amps in heating mode, and 0.8 amps for the blower, with a maximum circuit breaker rating of 20 amps and minimum circuit ampacity of 13 amps. Its dependable performance, digital controls, flexible blower positioning, and marine-focused drainage features make the GT16 a practical replacement or upgrade for onboard climate systems.

Features:

• 16,000 BTU reverse-cycle heating and cooling capacity
• 230V single-phase operation at 50 or 60Hz
• Integrated digital display for temperature control and system monitoring
• R454B low-GWP refrigerant
• Blower rotates up to 270 degrees for flexible duct routing
• Corrosion-resistant evaporator coil coating helps shed water quickly
• Composite drain pan with three drain locations for rapid condensate removal
• Drain channels support reliable drainage regardless of vessel heeling angle
• Cushioned vibration mounts and mounting clips help minimize operating noise
• Accessible critical components simplify servicing
• Minimum 7-inch duct diameter requirement
• Minimum 80-square-inch supply air grille area
