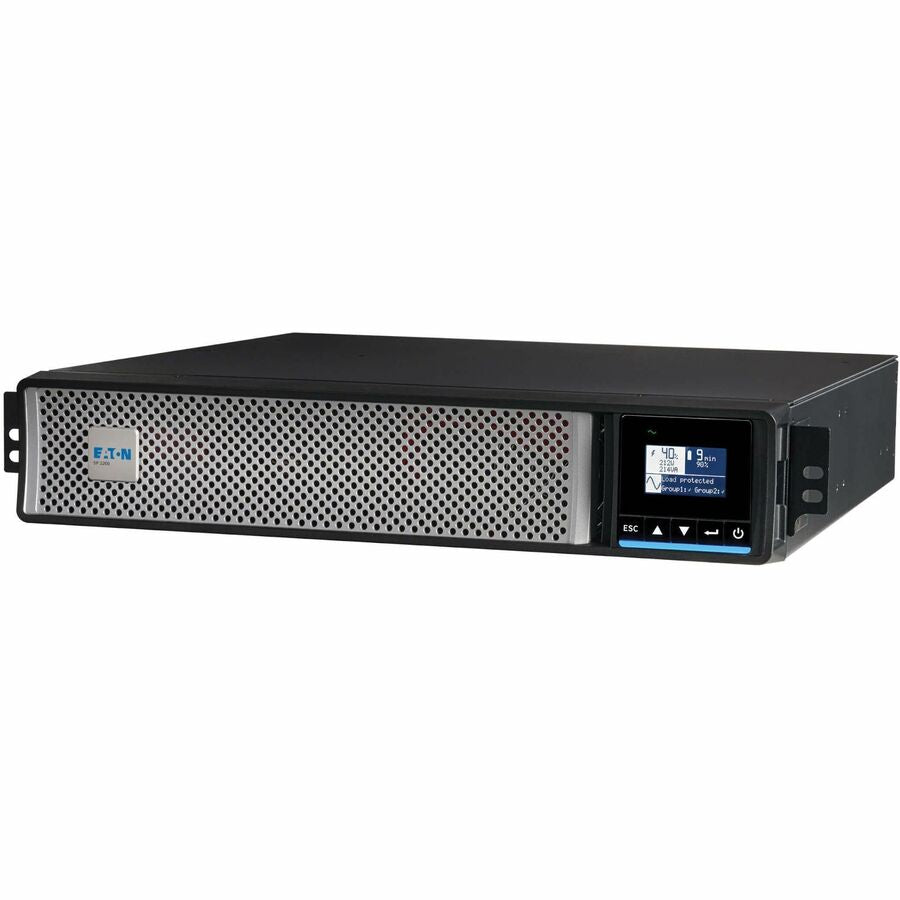

Eaton 5P2200RTNG2 5P Gen2 1950VA/1950W Rack/Tower UPS with NETWORK-M3

Eaton 5P Gen2 5P2200RTNG2 1950VA Rack/Tower UPS

Reliable 1950VA/1950W Battery Backup for Mission-Critical IT

The Eaton 5P2200RTNG2 5P Gen2 line-interactive UPS provides dependable battery backup and AC power protection for servers, switches, storage systems and other sensitive equipment. Designed for edge computing environments, server rooms and network closets, this rack/tower UPS delivers 120V pure sine wave output for stable compatibility with modern IT loads. Its unity power factor of 1.0 provides the full rated wattage, allowing you to support more connected equipment at each power rating.

Extended Battery Life and Advanced Remote Management

Eaton ABM technology helps increase battery life by up to 50 percent through optimized charging and continuous battery health monitoring. The pre-installed NETWORK-M3 Gigabit network management card enables secure, 24/7 remote configuration and control, including load shedding, connected-equipment reboots, safe shutdowns and remote UPS firmware updates without interrupting the load. Cybersecurity compliance with UL 2900-1 and IEC 62443-4-2 helps protect connected infrastructure from known vulnerabilities.

Comprehensive Power Protection and Flexible Installation

Automatic voltage regulation corrects brownouts as low as 89V and overvoltages as high as 151V back to nominal 120V power without relying on the battery. The UPS includes one NEMA L5-20R and six NEMA 5-15/20R outlets, with two load banks for shedding noncritical equipment and extending runtime for priority loads. A graphical LCD and multicolor LED status bar provide clear visibility into UPS condition, load, events, measurements and settings. USB and RS-232 communications support automated data saves and shutdowns, while the RPO/ROO connector enables emergency shutdown or remote restart. The Eaton 5P2200RTNG2 installs in a 2U EIA-standard 19-inch rack or in a tower configuration using the included hardware and support stands. It includes a 3-year limited warranty and is ENERGY STAR and RoHS compliant.

Features:

• 1950VA/1950W capacity with 120V line-interactive battery backup for servers, networking equipment and other critical IT loads
• Unity power factor of 1.0 delivers the full rated wattage to support modern high-density equipment
• Pure sine wave output provides stable, compatible power for sensitive electronics
• Eaton ABM technology can extend battery life by up to 50 percent while monitoring battery health
• Pre-installed NETWORK-M3 Gigabit network card provides secure remote monitoring, configuration, load shedding and shutdown control
• Automatic voltage regulation corrects low and high voltage conditions while preserving battery readiness
• One NEMA L5-20R and six NEMA 5-15/20R outlets include load banks for managing noncritical equipment
• Graphical LCD and multicolor LED status bar provide at-a-glance UPS and load information
• USB, RS-232 and RPO/ROO communication interfaces support automated shutdown and emergency control
• Rack/tower design installs in a 2U EIA-standard 19-inch rack or as a freestanding tower
• Includes a 3-year limited warranty and meets ENERGY STAR and RoHS requirements
