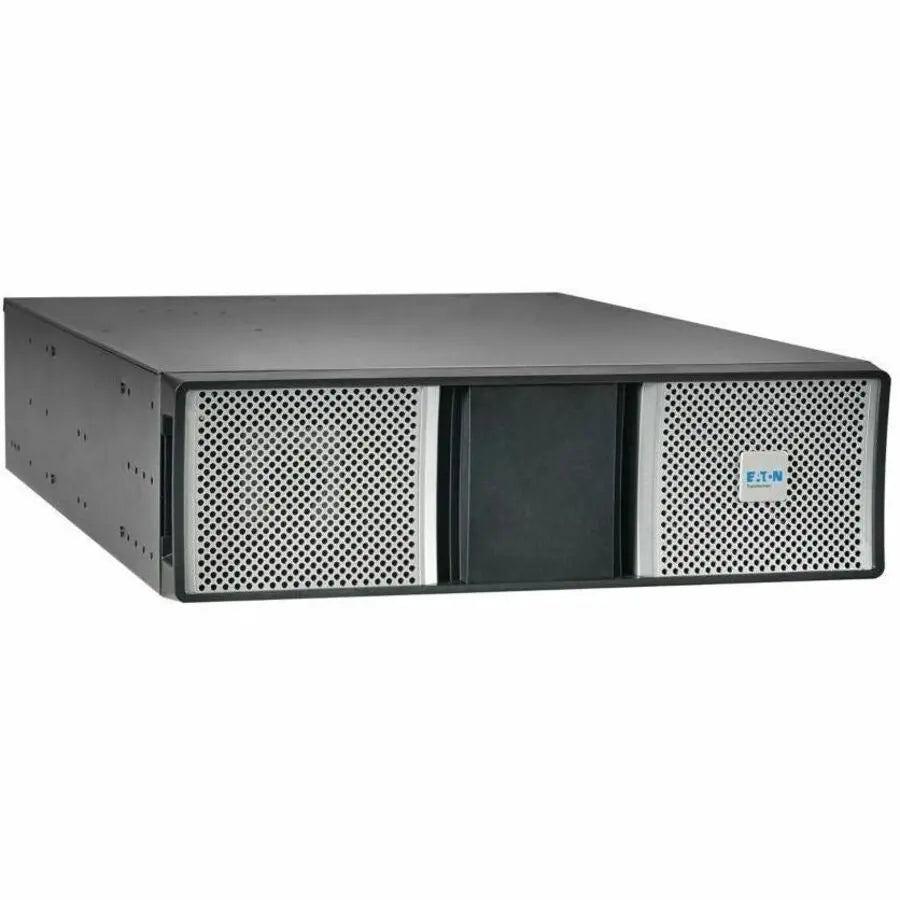

Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, Hardwire Input/Output, 3U Rack/Tower

Eaton 9PX G2 PowerPass Distribution Module Features and Benefits

Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, Hardwire Input/Output, 3U Rack/Tower

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

The 9PXPPDM2G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions.

Compatible with Select Eaton UPS Systems

The 9PXPPDM2G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 9PX G2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.

Versatile Installation Options

You can mount the 9PXPPDM2G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware.

• PDU allows power to be more efficiently distributed and controlled
• Hardwired receptacle type to ensure maximum productivity with added feasibility
• Single Phase phase PDU provides dependable power output with maximum efficiency
• Hardwired plug/connector type for efficient connectivity and feasible power output
• 230 V AC input voltage for better reliance and maximum dependability
• 100 V AC output voltage for optimal performance with maximum feasibility

Seamless Integration with 9PX G2 UPS Systems

The Eaton 9PX G2 PowerPass distribution module is designed specifically to complement 3kVA to 6kVA 9PX G2 UPS systems. This module enables a straightforward extension of your UPS output capabilities through hardwired input and output connections. Its 3U rack/tower form factor ensures compatibility with standard server racks, providing flexible installation options in data centers and critical infrastructure setups. The PowerPass distribution module enhances the overall power management efficiency, ensuring a reliable and consistent power supply for sensitive electronic equipment.

Robust Hardwire Input and Output Connections

Equipped with secure hardwire input and output terminals, the PowerPass distribution module allows for direct wiring to high-power equipment. This eliminates the need for bulky power strips or additional cabling, reducing points of failure and simplifying your power distribution setup. The robust connection design supports heavy loads while maintaining electrical safety and stability. This reliable hardwiring approach maximizes uptime and reduces downtime risks, making it essential for environments demanding uninterrupted power.

Optimized Space Usage in Rack and Tower Configurations

The compact 3U rack/tower size of the PowerPass distribution module is engineered to save valuable space within your data center or IT environment. Its versatile form factor fits seamlessly with Eaton 9PX G2 UPS units without compromising cooling or accessibility. This size optimization supports better airflow and cable management, which are critical for maintaining optimal equipment operating conditions. By integrating the distribution module, businesses can streamline their power infrastructure while also future-proofing their operations with scalable power distribution capabilities.
