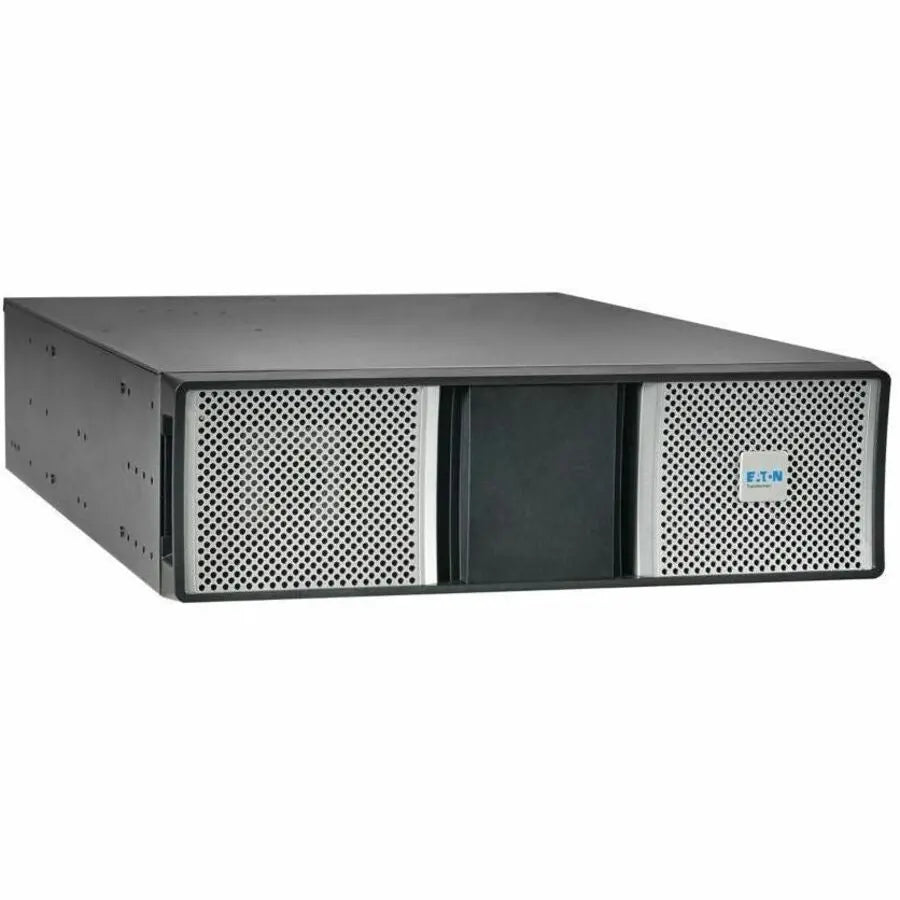

Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, L6-30P Input, 1x L6-30R, 1x L14-30R and 6x 5-20R Outlets, 3U Rack/Tower

Eaton 9PX G2 PowerPass Distribution Module Overview

Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, L6-30P Input, 1x L6-30R, 1x L14-30R and 6x 5-20R Outlets, 3U Rack/Tower

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

The 9PXPPDM1G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment. Resettable 30A circuit breakers protect against overload conditions.

Compatible with Select Eaton UPS Systems

The 9PXPPDM1G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.

Versatile Installation Options

You can mount the 9PXPPDM1G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The 10-foot power cord with L6-30P plug connects to a compatible AC outlet.

• PDU is reliable for power protection and management solutions
• NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
• Single Phase phase PDU for reliable performance with maximum productivity
• NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
• 230 V AC input voltage for optimal performance with maximum usability
• 100 V AC output voltage for better reliance and maximum usability

Seamless Power Integration for 9PX G2 UPS Systems

The Eaton 9PX G2 PowerPass distribution module is specifically designed for 3kVA to 6kVA 9PX G2 UPS systems, providing seamless integration to extend your power distribution capabilities. Featuring an L6-30P input and outputs including 1x L6-30R, 1x L14-30R, and six 5-20R outlets, this module ensures efficient and flexible connectivity for a range of devices. Its 3U rack/tower form factor allows easy installation in both data center racks and standalone setups, supporting high-density power distribution without compromising space efficiency.

Robust Design for Reliable Power Distribution

The PowerPass distribution module delivers robust and reliable power distribution needed to protect sensitive equipment. Designed with high-quality components, it supports continuous operation and withstands demanding operational environments. The variety of output options helps accommodate diverse device requirements, while the L6-30P input provides stable and secure power feed from your UPS system. Its reliable build quality minimizes downtime risk and helps maintain critical power paths, ensuring business continuity under challenging conditions.

Enhanced Flexibility and Scalability

This Eaton PowerPass distribution module offers enhanced flexibility, enabling users to scale up their power distribution effortlessly. It supports multiple device connections with its six 5-20R outlets alongside L6-30R and L14-30R receptacles, making it ideal for environments that require varied power needs. The 3U form factor further simplifies integration into existing racks or tower setups, facilitating upgrades or expansions. This module is a smart solution for businesses seeking to optimize their power infrastructure with a flexible and scalable approach.
