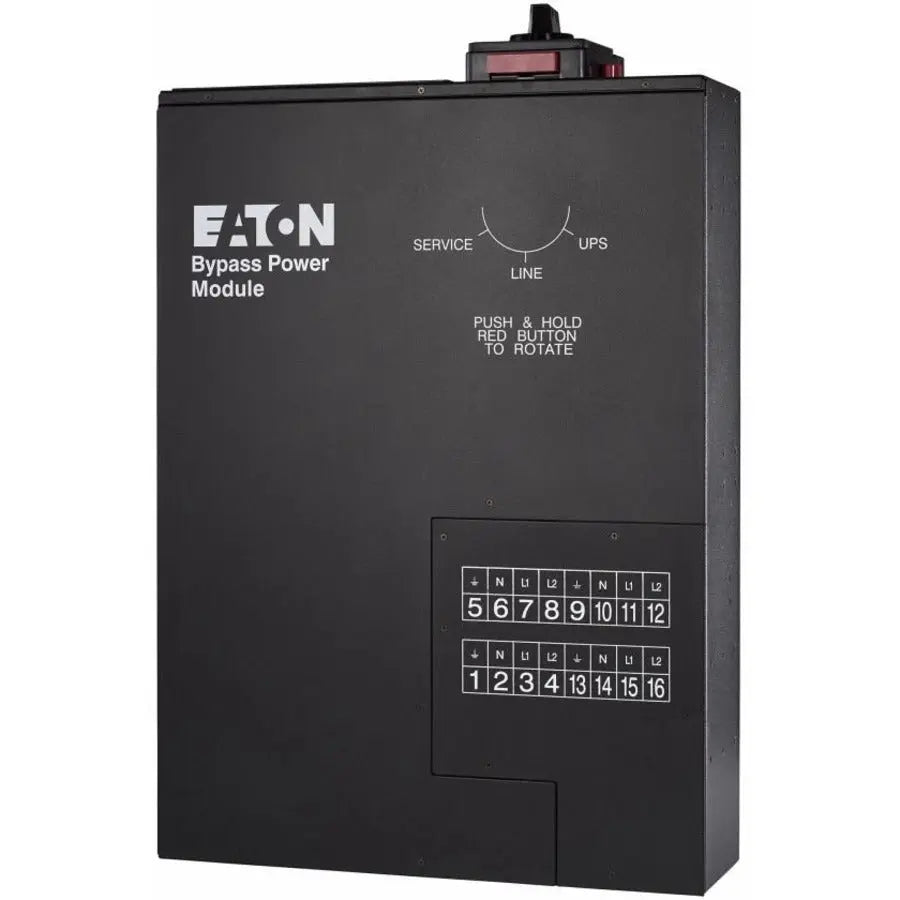

Eaton Bypass Power Module (BPM) for 9PX UPS Systems – Hardwired 3U Maintenance Bypass Panel

Eaton Bypass Power Module (BPM), 3U, Hardwired input

The Eaton Bypass Power Module (BPM), model BPM125HW, is designed specifically for use with Eaton 9PX, 9170+, 9155, and 8-10 kVA UPS models. This versatile power module functions both as a maintenance bypass and a panelboard, providing essential flexibility for critical power systems. Its robust design allows for seamless switching between utility power and UPS output, ensuring continuous operation during maintenance or service events. The BPM simplifies system upgrades and repairs by enabling you to bypass the UPS without disrupting the connected load, thereby minimizing downtime and safeguarding your infrastructure.

Constructed with durability in mind, the Eaton BPM is hardwired for reliability and ease of integration. Its compact 3U rack height makes it suitable for installation in tight spaces while delivering dependable performance. With a weight of approximately 2 pounds, it is lightweight yet sturdy, offering straightforward installation and maintenance. The power module's features include a 2-year limited warranty, giving you confidence in its longevity and performance. More details and support can be found on the Eaton website at www.eaton.com. The BPM’s design prioritizes operational efficiency and cost-effectiveness, reducing upfront and electrical expenditure by providing a dedicated bypass solution that protects your critical loads during maintenance activities. Its hardwired connection ensures a secure and reliable link between your utility power and IT equipment.

Ideal for centralized power distribution setups, the Eaton BPM enhances the overall reliability of your power infrastructure. It enables continuous operation of critical systems during scheduled maintenance, service, or unexpected failures, thus minimizing potential downtime. Whether upgrading existing UPS systems or integrating new power solutions, this power module offers a dependable and straightforward solution for maintaining uninterrupted power supply in data centers, server rooms, or other critical environments.

Features:

• Compatible with Eaton 9PX, 9170+, 9155, and 8-10 kVA UPS models for versatile application

• Functions as both a maintenance bypass and a panelboard to ensure continuous operation

• Hardwired installation for secure and reliable power switching

• Compact 3U rack-mount design suitable for limited space environments

• Lightweight construction weighing approximately 2 pounds for easy handling and installation

• Includes a 2-year limited warranty for peace of mind

• Enables power distribution from utility to connected equipment during maintenance or failures

• Designed to reduce upfront and electrical costs by simplifying system upgrades
