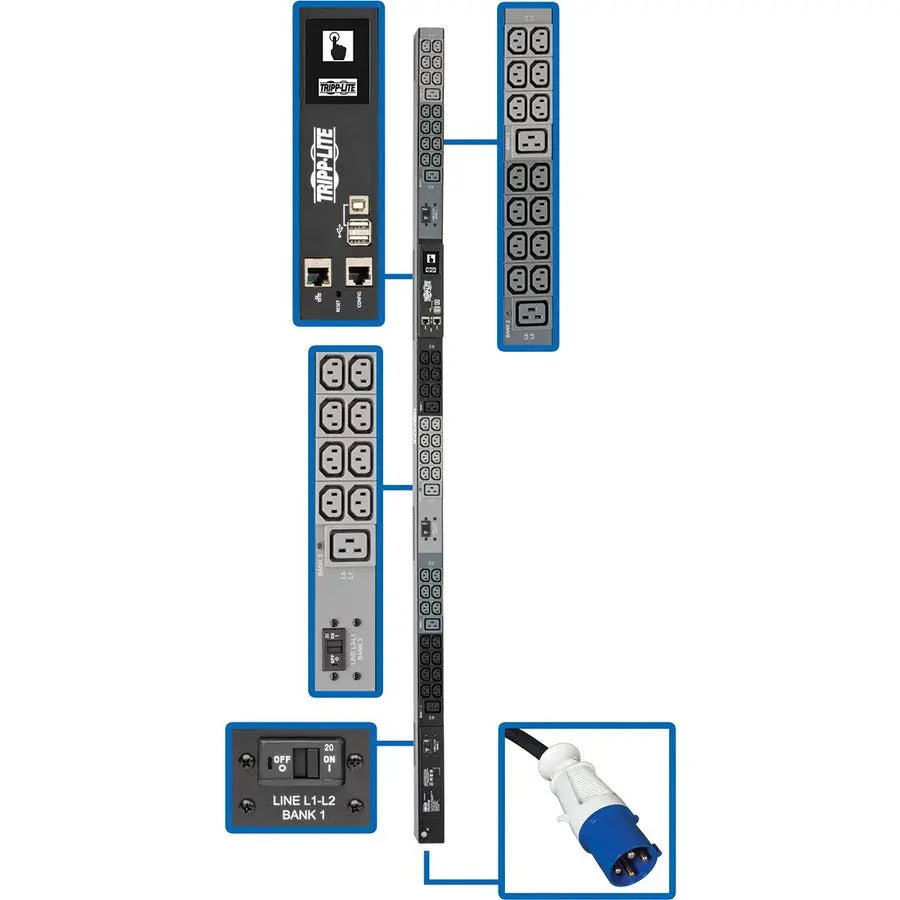

Eaton Corporation PDU3EVN10G60B 14.5kW 3-Phase Monitored Power Distribution Unit with Touchscreen LCD and Remote Management

Tripp Lite by Eaton PDU 14.5kW 200-240V 3PH Monitored PDU - LX Interface Gigabit 48 Outlets IEC 309 60A Blue Input LCD 3 m Cord 0U 1.8 m Height TAA

The Eaton Corporation PDU3EVN10G60B is a high-capacity, rack-mountable power distribution unit designed for demanding IT and industrial environments. Featuring a 14.5kW power capacity at 200/208/240V and a 3-phase configuration, this monitored PDU provides reliable power distribution with advanced remote management capabilities. Its built-in LX Platform interface allows for secure, Java-free HTML5-based access via web browser, SNMP, telnet, or SSH, ensuring continuous monitoring of voltage, frequency, and load levels. The 48 outlets, comprising 42 C13 and 6 C19 connections, are equipped with plug-lock insert sleeves to prevent accidental disconnections, enhancing system security and uptime. A 10-foot IEC 309 60A Blue input cord connects the unit to a compatible power source, generator, or UPS system, providing flexible installation options. The integrated color touchscreen LCD supports real-time display of current per phase, output load, environmental sensor data, and network information, with approximately 1% billing-grade accuracy. Additionally, the LCD features a QR code for mobile device access, facilitating quick and convenient remote management. The PDU's remote access features are supported by the LX Platform, which offers 24/7 monitoring and email notifications, and supports multiple protocols including IPv4, IPv6, HTTP, HTTPS, SNMP, and SSH. Optional EnviroSense2 modules expand environmental monitoring capabilities for temperature, humidity, and other parameters, making this unit ideal for data centers and industrial facilities that require comprehensive power and environmental oversight. The device complies with RoHS standards, is TAA compliant, and is manufactured in Taiwan, ensuring high-quality standards and environmental responsibility. The package includes mounting hardware, configuration cables, plug-lock sleeves, and an owner's manual, backed by a two-year limited warranty. With its advanced features and robust design, the Eaton PDU3EVN10G60B offers a reliable, scalable solution for managing power distribution in critical infrastructure environments.

Features:

• Touchscreen LCD with mobile access option via QR code

• IEC 309 60A Blue (3P+E) input with 10 ft. AC power cord

• Built-in LX Platform interface for remote access 24/7

• 48 outlets—42 C13 and 6 C19—with plug-lock insert sleeves

• 14.5kW 200/208/240V 3-phase monitored PDU
