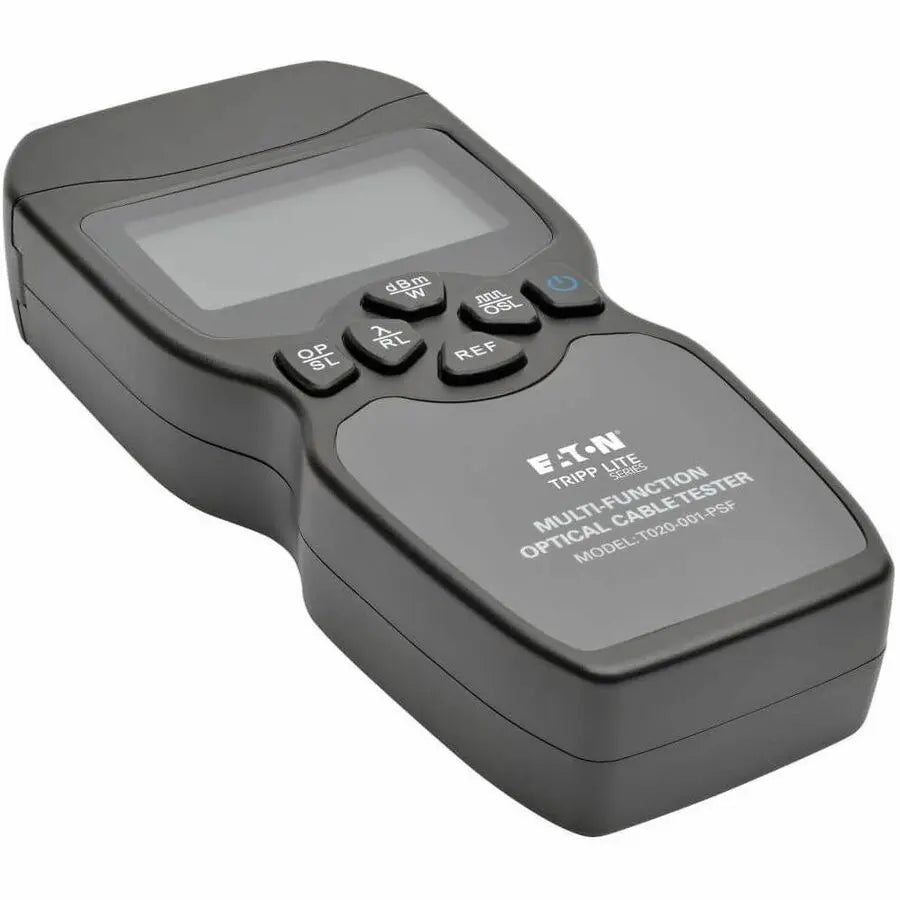

Eaton Corporation T020-001-PSF Multi-Function Optical Fiber Cable Tester for Telecom and LAN Environments

Tripp Lite by Eaton Multi-Function Optical Fiber Cable Tester with Power Meter Light Source and Visual Fault Locator

The Eaton Corporation T020-001-PSF Multi-Function Optical Fiber Cable Tester is a comprehensive tool designed for fiber optic testing in telecom, LAN, and cable installation settings. This all-in-one device combines a power meter, light source, and visual fault locator, enabling technicians to efficiently identify fiber breaks, measure insertion loss, and monitor optical power levels. Its versatile design supports multiple wavelengths, including 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, and 1625 nm for the power meter, while the light source operates at 1310 nm and 1550 nm wavelengths. The visual fault locator features adjustable frequency settings for continuous or flashing modes, making fault detection straightforward and reliable.

Constructed with FC connectors, the T020-001-PSF offers optional adapters for SC, ST, and LC connectors, ensuring compatibility with various fiber types. The device's user-friendly LCD display provides clear readings of power loss, wavelength, frequency, battery status, and charge level, facilitating quick diagnostics on-site. Powered by three AA batteries, the tester includes an auto-off feature to conserve power, and the USB Micro-B port enables recharging rechargeable batteries via a computer or wall charger. Its compact design, combined with a sturdy carrying case, makes it ideal for field deployment and transport.

This environmentally friendly testing device complies with RoHS standards and is backed by a two-year limited warranty. The package includes the fiber tester, three AA batteries, cleaning swabs, a convenient carrying case, and an owner's manual for straightforward setup and operation. Whether performing routine maintenance or troubleshooting fiber networks, the Eaton T020-001-PSF provides reliable, accurate testing capabilities essential for maintaining high-performance fiber optic systems.

Features:

• USB Micro-B port for charging rechargeable AA batteries

• Auto-off function conserves battery power

• Supports multiple wavelengths: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm

• Light source supports 1310 nm and 1550 nm wavelengths

• FC connectors with optional SC, ST, and LC adapters for versatile connectivity
