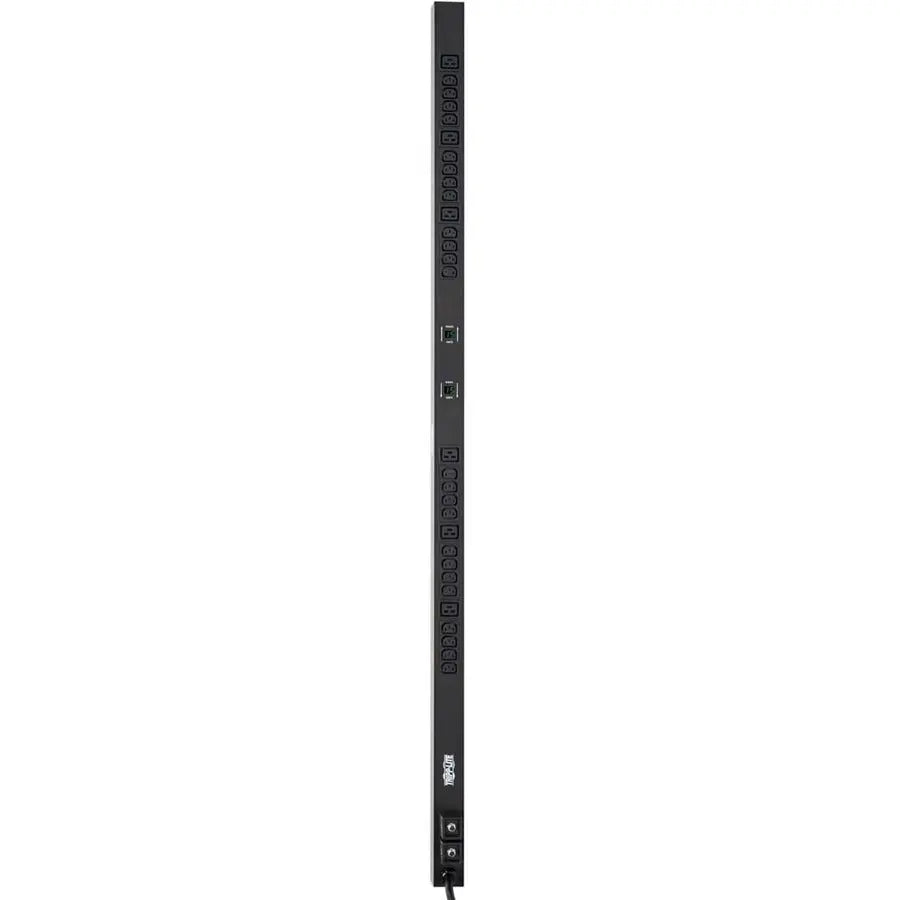

Eaton Corporation Tripp Lite PDUMV30HV Metered 30A 208/240V Vertical Rack PDU with 30 Outlets and Digital Load Monitoring

Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical

The Eaton Corporation Tripp Lite PDUMV30HV is a high-capacity, vertical 0U rack-mountable Power Distribution Unit designed to efficiently manage power for networking and IT equipment. Supporting a maximum capacity of 30 amps at 208/240 volts, this PDU features 30 outlets—comprising six C19 and twenty-four C13 connectors—organized into two independently breakered load banks. Each load bank is equipped with a dedicated 15A breaker and a built-in digital display for real-time monitoring of power consumption, providing crucial data for maintaining optimal load balance and system reliability. The included 10-foot power cord with a NEMA L6-30P plug ensures flexible installation options, whether mounted in standard 2- or 4-post racks, under counters, or on wall surfaces. The tool-less mounting brackets simplify installation, while the plug retention brackets prevent accidental disconnections, ensuring continuous power delivery to critical equipment. These features make the PDUMV30HV an ideal solution for data centers, server rooms, or any environment requiring reliable power distribution and monitoring in a compact form factor. With a two-year limited warranty, this durable PDU combines robust performance with straightforward installation and operation, providing peace of mind for your infrastructure needs.

Features:

• 30 outlets (6 C19, 24 C13) in two separately breakered load banks

• Attached 10ft / 3m cord with NEMA L6-30P input plug

• Pair of digital meters report output current in amps for each load bank

• Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
