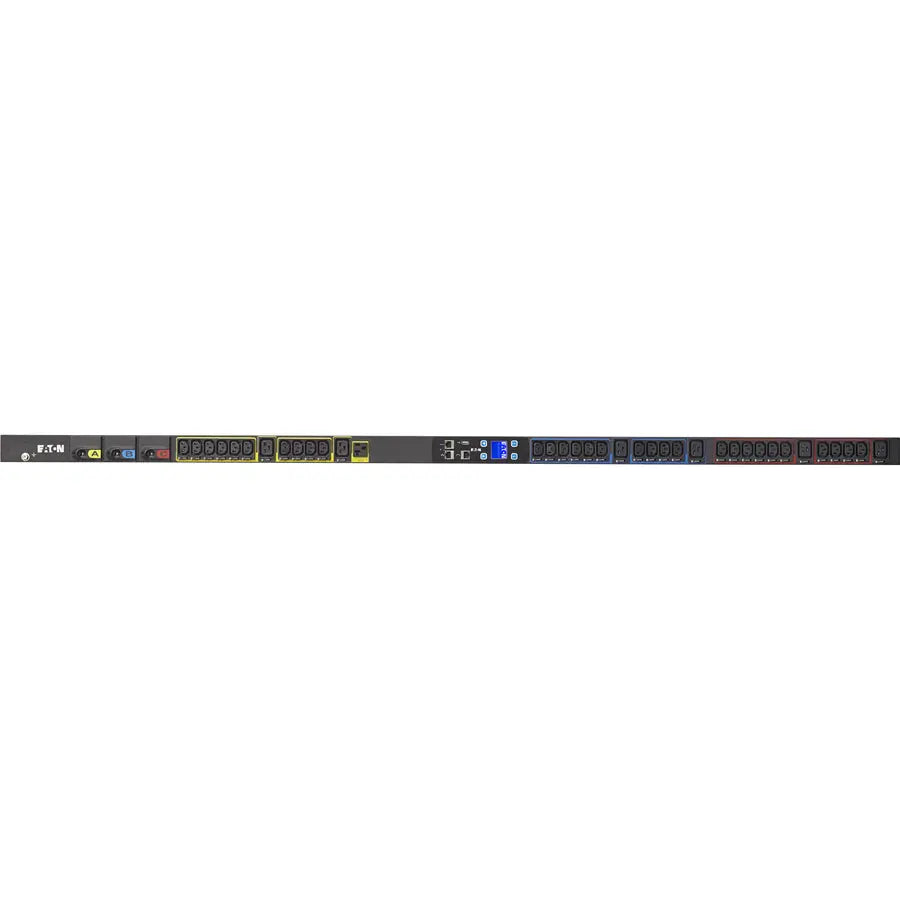

Eaton EMI310-10 ePDU 37-Outlets Rack Power Distribution Unit with Metered Input and 1% Billing Accuracy

Eaton Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU

The Eaton EMI310-10 ePDU is a high-performance rack-mountable power distribution unit designed for data centers and IT environments. Capable of supporting up to 25 servers in 1U or 2U configurations, this unit provides reliable power management with advanced metering features that enable detailed energy monitoring. Its robust design ensures operation in high-temperature environments up to 140°F (60°C), making it suitable for containment or hot network closets. The unit features a 10-foot power cord for flexible installation and a compact form factor that optimizes rack space utilization.

Equipped with UL Listed (UL489) branch circuit breakers that meet UL60950-1 standards, the EMI310-10 offers enhanced safety and compliance. The digital ammeter provides easy-to-read measurements of current, voltage, power, and energy, significantly reducing local monitoring time. An advanced LCD pixel display allows for local setup and parameter adjustments, including IP address configuration and display rotation. The hot-swappable meter facilitates maintenance without powering down the entire rack, minimizing downtime. The unit supports daisy chaining of up to four devices over a shared network connection, simplifying setup and network management.

Designed for high reliability and energy efficiency, the EMI310-10 features ±1% billing grade accuracy, enabling precise energy usage reporting crucial for capacity planning and cost management. Its clear circuit labeling streamlines load balancing tasks, reducing setup errors. The high-density configuration is ideal for data centers with limited space, supporting multiple servers or blade chassis within a 38U rack. The unit's 10-foot power cord offers flexible placement options, and its sturdy construction ensures durability in demanding environments. Backed by a three-year limited warranty, the Eaton EMI310-10 ePDU combines advanced features with proven quality to meet the needs of modern data infrastructure.

Features:

• UL Listed (UL489) branch circuit breakers meet UL60950-1 standards for safety and compliance

• Ethernet connectivity provides real-time energy readings and remote monitoring capabilities

• Clearly labeled circuits facilitate faster load balancing and troubleshooting

• Easy-to-read digital ammeter reduces time spent on local power monitoring

• Supports high-density configurations, accommodating up to 25 servers or three blade chassis

• ±1% billing grade accuracy ensures precise energy measurement for reporting and analysis

• Advanced LCD pixel display allows for local setup, parameter adjustment, and display rotation

• Hot-swap meter design enables maintenance without power interruption

• Daisy chain capability allows four units to share a single network IP address for simplified management

• Designed for high-temperature environments up to 140°F (60°C), ideal for containment or networking closets
