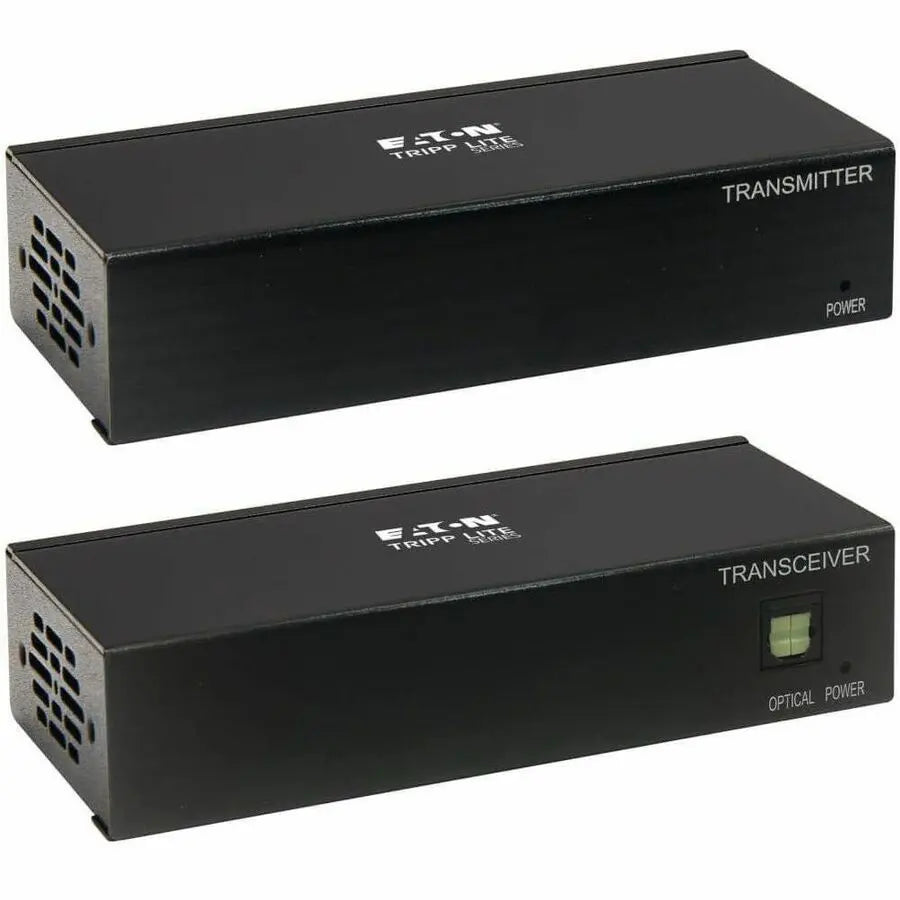

Eaton Tripp Lite B127A-111-BDTD DisplayPort Over Cat6 Extender Kit for 4K Video Transmission

Eaton Tripp Lite Series DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA

The Eaton Tripp Lite B127A-111-BDTD is a comprehensive DisplayPort extender kit designed for high-quality 4K video distribution over long distances. Ideal for digital signage, conference rooms, educational institutions, and retail settings, this system allows seamless transmission of Ultra HD signals up to 230 feet (70.1 meters) using standard Cat6 cabling. Its plug-and-play design ensures quick setup with no software requirements, making it suitable for a wide range of professional applications.

The extender supports resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz, delivering crisp, detailed images with 4:4:4 chroma subsampling for vivid colors and sharp visuals. It also supports 7.1-channel surround sound via the TOSLINK audio output, enabling immersive audio experiences for multimedia presentations. HDCP 2.2 compliance ensures compatibility with streaming services like Netflix and Amazon Prime, allowing secure 4K content delivery. Additionally, the built-in equalization feature allows users to fine-tune image quality at the remote display, ensuring optimal performance across different installation environments.

Power over Cable (PoC) technology enables the extender to be powered through the Cat6 cable, eliminating the need for bulky external power supplies. Power can be supplied from either the transmitter or receiver unit, with LEDs indicating power and signal status. The system supports daisy-chaining up to four transceivers, extending the total reach up to approximately 920 feet (280.4 meters). When combined with optional signal boosters, the setup can reach over 1,000 feet, providing flexible options for large-scale installations. The included mounting hardware facilitates easy installation on walls, poles, or 19-inch racks, ensuring the extender can be integrated seamlessly into various environments.

The B127A-111-BDTD is TAA-compliant, making it eligible for government procurement under GSA schedules. Its durable metal construction and environmentally friendly design meet strict environmental standards, including REACH compliance. The package includes all necessary components, such as the transmitter, transceiver, power supply, international plug adapters, mounting hardware, and an owner's manual. With a limited one-year warranty, this extender kit offers a reliable and efficient solution for extending high-resolution video signals over long distances with minimal setup time and maximum flexibility.

Features:

• Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video

• Power over Cable (PoC) technology provides power to either unit via Cat6 cable

• Can be daisy-chained up to 4 times (920 ft. total) via additional B127A-110-BD receivers

• Plug-and-play operation with no software required for easy, immediate installation

• Supports HDCP 2.2 for secure 4K streaming from services like Netflix and Amazon Prime

• Built-in equalization allows fine-tuning of image quality at the remote display
