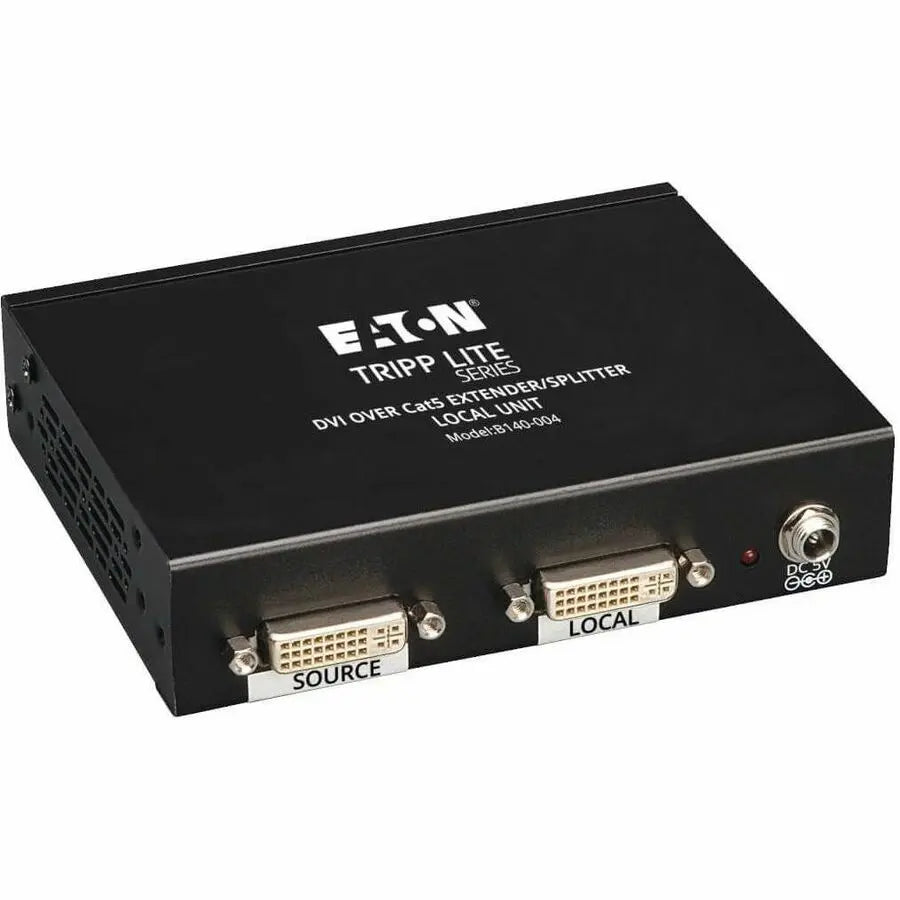

Eaton Tripp Lite B140-004 DVI over Cat5 Extender/Splitter - 4-Port Local Transmitter Unit

Eaton Tripp Lite Series 4-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

The Eaton Tripp Lite B140-004 is a versatile DVI over Cat5 extender and splitter designed for professional video distribution setups. This high-performance unit transmits a DVI-D Single-Link signal to up to four remote monitors over a single Cat5e or Cat6 cable, reaching distances of up to 200 feet for 1024 x 768 resolution or 150 feet for 1920 x 1080 @ 60Hz. The device includes an additional local DVI port, enabling direct connection to a local monitor and supporting daisy-chaining of additional units to expand the display array to a total of 13 monitors, including the local display. The unit’s mounting hardware allows flexible installation options, including rack, wall, or pole mounting, with the ability to install up to three units in just 1U of rack space using a compatible rackmount bracket. The B140-004 is compatible across all operating systems and offers a plug-and-play setup, requiring no drivers or software for operation, simplifying deployment in diverse environments. Connecting the transmitter involves attaching it to a DVI source with a Tripp Lite P561-Series cable, and remote monitors are connected via matching receiver units using the same DVI cables, with the remote units connected to the transmitter through standard RJ45 Ethernet cables. For extended distances beyond the standard limits, optional active receivers like the B140-1A0 or B140-1A0-WP can extend signals up to 150 feet at 1080p or 200 feet at lower resolutions, while passive receivers like the B140-1P0 or B140-1P0-WP are suitable for shorter runs. Additional expansion is possible with the B140-110 repeater units, allowing up to four remote monitors per channel, with extended reach capabilities. This robust solution is ideal for digital signage, conference rooms, or control centers needing high-resolution video over extended distances with flexible mounting options and easy setup. The package includes the B140-004 transmitter, a 1-foot daisy-chain DVI cable, mounting hardware, an external power supply, and an owner's manual. Built with environmental considerations, the device is TAA compliant and manufactured in Taiwan under Eaton Corporation's quality standards.

Features:

• Plug and play, no software or drivers required

• Compatible with all operating systems

• Supports expansion with B140-110 repeaters for additional monitors and extended range

• Uses 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, for maximum distance and resolution

• Short distance extension: Use passive receivers to extend 1920 x 1080 @ 60Hz signals up to 50 ft., or 1024 x 768 signals up to 100 ft.

• Longer distance extension: Use active receivers to extend 1920 x 1080 @ 60Hz signals up to 150 ft., or 1024 x 768 signals up to 200 ft.

• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
