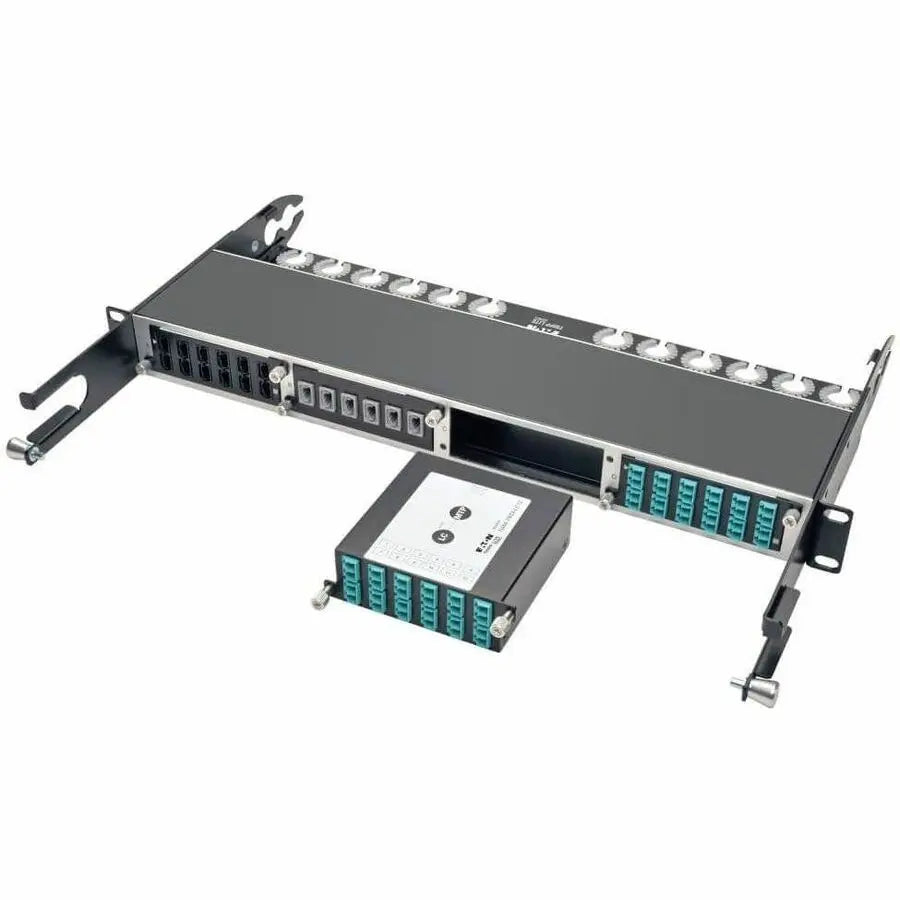

Eaton Tripp Lite Series 100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex

Eaton Breakout Cassette for High-Speed Fiber Optic Network Connectivity

Eaton Tripp Lite Series 100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
Tripp Lite's N484-1M24-LC12 is a High Density 100/120Gb to 10Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with Tripp Lite's N484-00U and N484-01U chassis, you can connect up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with a single 24-Fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821-, and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.

More from the Manufacturer

• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Internal OM4 wiring
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
• 100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber MTP/MPO connection
• High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'

Overview of Eaton Tripp Lite Breakout Cassette

The Eaton Tripp Lite Series 100Gb/120Gb to 10Gb breakout cassette is designed for advanced fiber optic network environments. Featuring a 24-fiber OM4 MTP/MPO male connector with pins and twelve LC duplex ports, this cassette enables high-density, scalable data center deployments and seamless breakout from 100Gb/120Gb links to multiple 10Gb channels. It provides reliable performance with minimal insertion loss and supports up to 150 meters over OM4 fiber, making it ideal for high-speed data transmissions and reducing network downtime risks.

Key Features and Technical Specifications

This Eaton breakout cassette supports up to 24 fibers and uses OM4 multimode fiber optic technology, providing enhanced bandwidth and extended reach. The MTP/MPO connector type ensures quick and secure installation with male pins for proper alignment. With twelve LC duplex outputs, it simplifies cable management and offers compatibility with a wide range of networking equipment. The compact design fits easily into fiber panels and enclosures, promoting organized and efficient cabling infrastructure in data centers and enterprise networks.

Benefits of Using Eaton Tripp Lite Breakout Cassette

Choosing the Eaton Tripp Lite breakout cassette ensures optimized network performance with reduced signal loss and improved data integrity. It streamlines the migration from 100Gb/120Gb to 10Gb speeds, allowing enterprises to efficiently manage bandwidth demands. Additionally, its high build quality and industry-standard compliance guarantee long-term reliability and durability. This cassette's modularity helps maintain future-ready infrastructure, providing cost-effective scalability and reducing the need for frequent hardware upgrades.
