Eaton Tripp Lite Series 28.8kW 220-240V 3-Phase Switched Power Distribution Unit with LX Interface and 30 Outlets

Eaton Tripp Lite Series 28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, Hardwire 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA

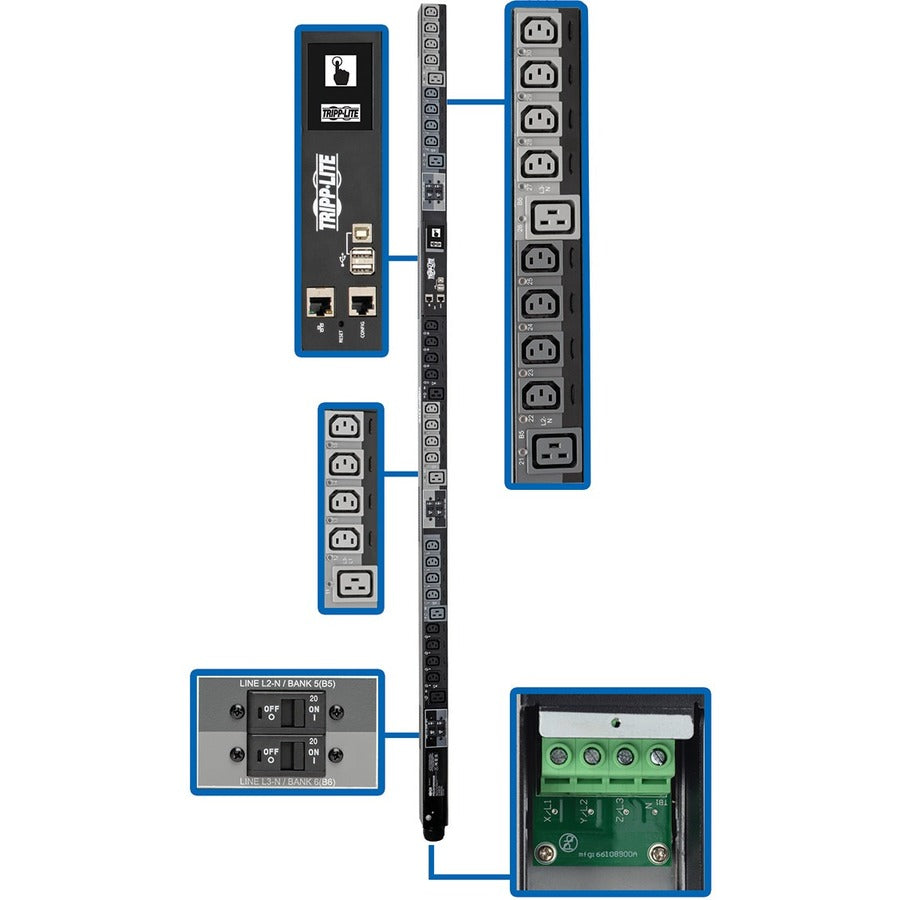

The Eaton Tripp Lite Series PDU3XEVSRHWB is a high-capacity, rack-mountable power distribution unit designed to provide advanced network control and reliable power management for data centers and enterprise environments. Featuring 30 individually controllable outlets, including 24 C13 and 6 C19 sockets, this 0U PDU supports up to 28.8kW of power at 220/230/240V three-phase input, making it suitable for demanding applications. Its hardwired input accepts 380/400/415V connections, allowing integration with various power sources such as generators or protected UPS systems. The included plug-lock insert sleeves help prevent accidental disconnections, ensuring continuous operation and safety. The built-in LX Platform interface operates without Java, offering a secure, HTML5-based web environment for real-time remote monitoring, configuration, and control.

A prominent feature of this PDU is the color touchscreen LCD, which provides intuitive access to vital metrics such as input current per phase, load bank output, environmental sensor data, and network status. Users can toggle between menus easily and generate a QR code for quick mobile device access, enhancing flexibility and convenience. The unit supports multiple protocols including SNMP, HTTP, HTTPS, SSH, and more, ensuring compatibility with various network management systems. Optional EnviroSense2 modules enable environmental monitoring, including temperature, humidity, and airflow, further safeguarding your equipment.

The PDU arrives with comprehensive accessories including mounting hardware, a configuration cable, plug-lock sleeves, and an owner's manual, making installation straightforward. With a 2-year limited warranty, TAA compliance, and environmental standards adherence such as RoHS, this power distribution unit exemplifies reliability, efficiency, and advanced remote management capabilities. Ideal for data centers, server rooms, or network closets, the Eaton PDU3XEVSRHWB ensures high performance and secure power distribution in demanding operational environments.

Features:

• Hardwire 380/400/415V input for versatile power connection

• Color touchscreen LCD with mobile access via QR code for easy monitoring

• Built-in LX Platform interface for 24/7 remote control and status updates

• 30 individually controllable outlets, including 24 C13 and 6 C19 sockets

• Supports up to 28.8kW power at 220/230/240V three-phase input
