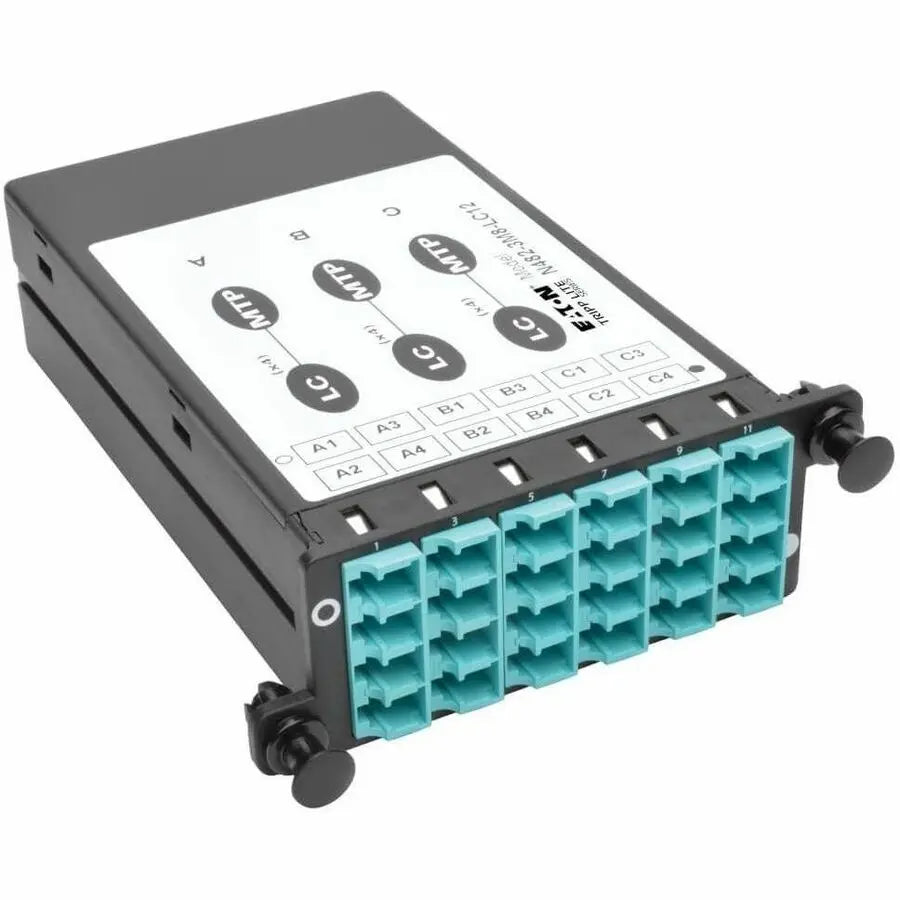

Eaton Tripp Lite Series 40/100Gb Breakout Cassette N482-3M8-LC12 for High-Density Fiber Networks

Eaton Tripp Lite Series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb (x3) 8-Fiber OM4 MTP/MPO (Male with Pins) to (x12) LC Duplex, Type-B Polarity

The Eaton Tripp Lite N482-3M8-LC12 breakout cassette is designed to facilitate high-density fiber optic connections in modern data centers and enterprise networks. Compatible with Tripp Lite's N482-01U and N482-02U chassis, this module supports up to 12 LC duplex fiber cables through three 8-fiber MTP/MPO connections, providing a streamlined solution for complex fiber deployments. Its modular design allows for quick, tool-free installation into compatible chassis enclosures, making it ideal for expanding or upgrading fiber infrastructure efficiently. Users can simply insert the cassette and secure it with retention clips, then connect fiber optic cables like Tripp Lite's N820-01M-T, which feature convenient push/pull tabs for easy handling. Dust caps protect unused ports, ensuring the integrity of the connections and maintaining optimal performance over time.

This breakout cassette is engineered to meet IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) standards, supporting 40 GbE internally using OM4 fiber optic cables. Its design enables support for four-lane parallel optics up to 40 GB, with all 12 LC duplex ports available for versatile configurations. The maximum insertion loss of 0.35 dB ensures minimal signal degradation, well within the IEEE 802.3ae maximum channel loss of 25 dB, providing reliable high-speed data transmission. The module’s compatibility with devices running at 10 GB and 40 GB speeds makes it a flexible choice for evolving network requirements. Constructed with high-quality materials and factory-terminated connectors, the N482-3M8-LC12 reduces installation time and labor while ensuring durable, high-performance connections.

Designed for scalability, the cassette allows for easy expansion and upgrades—up to 14 modules fit into a 2U chassis and five into a 1U chassis—making it suitable for growing data centers. Its environmentally friendly RoHS compliance aligns with modern sustainability standards, and the product is manufactured in China by Eaton Corporation, a trusted provider of network infrastructure solutions. Backed by a lifetime warranty, this breakout cassette offers a dependable, efficient, and future-proof solution for fiber optic network expansion and high-bandwidth applications.

Features:

• High-density fiber cassette for use with Tripp Lite N482-01U and N482-02U fiber enclosure panels

• Connects up to 12 LC duplex fiber cables via three 8-fiber MTP/MPO connections

• Supports 40 GbE internally using OM4 fiber optic cable

• Enables support for four-lane parallel optics up to 40 GB

• Factory-terminated connectors for quick installation and reduced labor

• Dust caps protect unused ports from damage

• Supports devices with 10 GB and 40 GB network speeds

• Easy tool-free installation into compatible chassis

• Expandable design: up to 14 modules in 2U chassis and 5 modules in 1U chassis

• Meets IEEE 802.3ae and ANSI T11.2 standards for reliable high-speed data transmission
