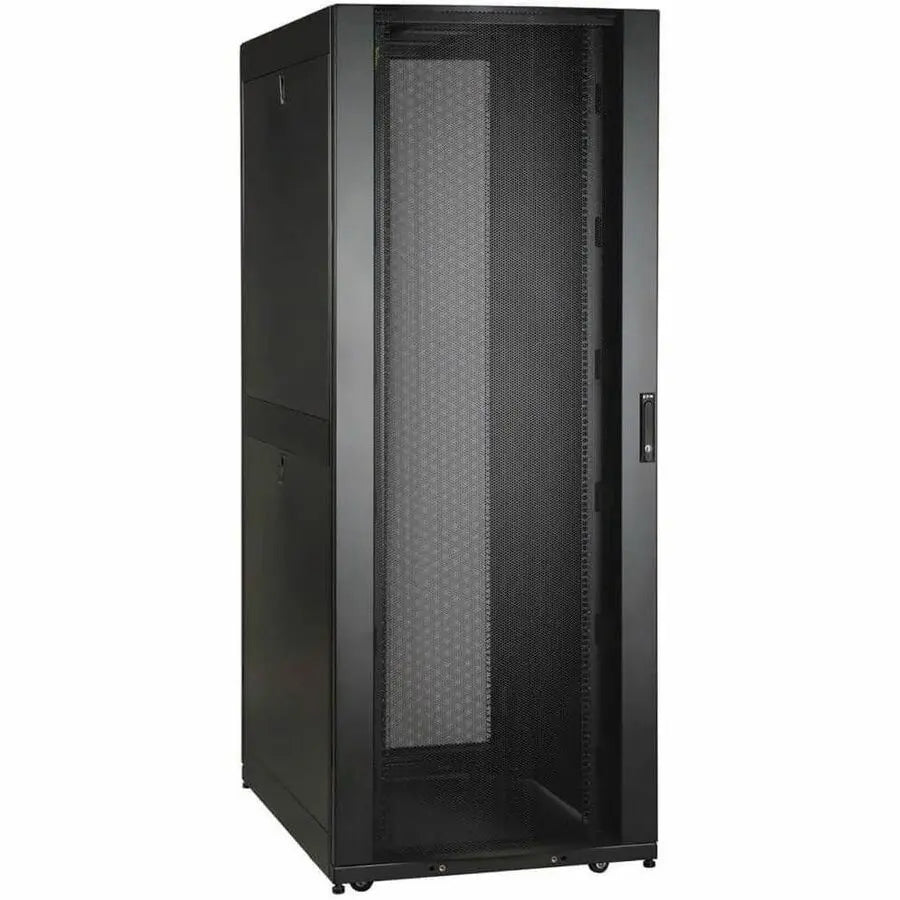

Eaton Tripp Lite Series 48U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with Doors and Shock Pallet Packaging

Eaton Tripp Lite Series 48U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging

The Eaton Tripp Lite SR48UBWDSP1 is a versatile 48U rack cabinet designed to accommodate high-density server and networking equipment in a secure and organized manner. Its width of 30 inches allows for ample space to manage cabling and install power distribution units (PDUs) and other essential components off to the sides, promoting optimal airflow and cooling efficiency. The enclosure is shipped mounted on a reinforced shock-absorbing pallet with loading ramps, ensuring safe transportation and handling, especially during re-shipment or relocation. This robust packaging also supports the flexible configuration of hardware in centralized locations before deployment at remote sites, reducing service costs and installation time.

The SR48UBWDSP1 features a durable black finish and a sturdy construction capable of supporting up to 3,000 pounds of stationary equipment or 2,250 pounds when rolling. The enclosure’s front and rear doors, along with side panels, are lockable and removable, providing easy access while maintaining security. The doors are reversible, and all components are grounded to the frame, with quick-release ground wires for safety and compliance. The vertical mounting rails are adjustable in quarter-inch increments from 4 to 37 inches, with an easy-view depth index for quick, precise positioning. Each rack space is numbered for straightforward referencing during installation or maintenance.

The top vented panel facilitates efficient airflow by removing warm air and encouraging natural convection, while cable routing ports enable neat and organized wiring. The top panel can be removed without tools, and the open-bottom design allows for convenient cable entry and management. The enclosure’s construction adheres to PCI DSS standards, making it suitable for environments with strict security and compliance requirements. Included with the rack are accessories such as mounting rails, cage nuts, screws, stabilizing brackets, side panels with locks, keys, washers, and an owner’s manual, providing everything needed for seamless setup and operation. With a five-year limited warranty, the SmartRack SR48UBWDSP1 offers a reliable solution for data centers, network closets, and enterprise rack deployments.

Features:

• Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

• Locking, removable side panels keyed alike with doors

• Locking, removable, reversible front and rear doors

• Supports up to 3,000 lb of stationary equipment and 2,250 lb when rolling

• Large front-to-rear ventilation capacity for optimal airflow

• Four interior vertical posts with unthreaded square hole openings for versatile mounting

• Ships fully assembled on shock pallet with loading ramps for easy handling

• Wide 30-inch (750mm) and deep 42-inch (1050mm) design with 48U capacity
