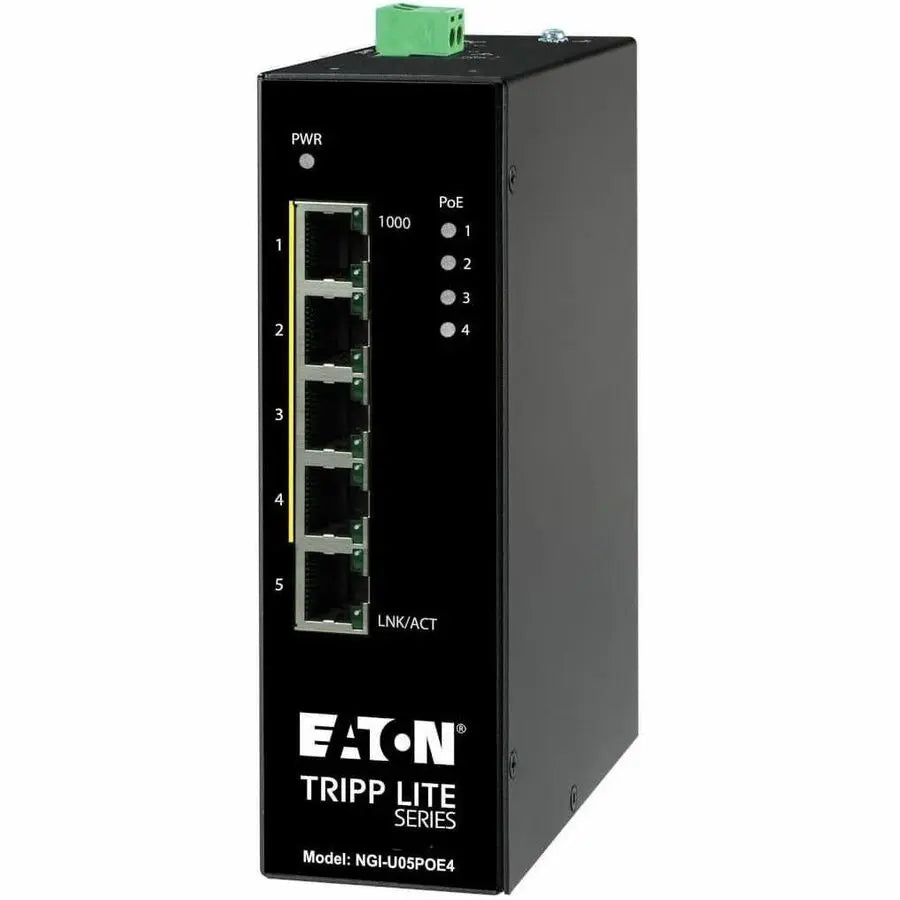

Eaton Tripp Lite Series 5-Port Unmanaged Gigabit Ethernet Switch with PoE+ - DIN Rail Mountable, Model NGI-U05POE4

Eaton Tripp Lite Series 5-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, PoE+ 30W, -10° to 60°C, DIN Mount, TAA

The Eaton Tripp Lite Series NGI-U05POE4 is a robust, compact unmanaged Ethernet switch designed to enhance network performance in industrial and commercial environments. Featuring five gigabit ports, it provides high-speed data transfer capabilities up to 10 times faster than standard Ethernet, making it ideal for applications requiring reliable and fast connectivity. Its plug-and-play setup ensures quick installation with minimal configuration, supported by LED indicators that display power and port activity for easy monitoring. The switch supports MAC address auto-learning and auto-aging, optimizing network efficiency and security while supporting IEEE 802.3x flow control for smooth large file transmissions. Its metal construction ensures durability and resistance to vibration, shock, and falls, withstanding extreme temperatures from 14°F to 140°F, making it suitable for factories, warehouses, and other demanding environments.

Designed with PoE+ ports, the NGI-U05POE4 delivers up to 30W of power per port, eliminating the need for separate power supplies for compatible devices such as security cameras, sensors, wireless access points, and digital signage. Its 120W total power budget simplifies deployment by reducing cable clutter and installation costs. The switch's DIN rail mountable form factor allows for seamless integration into existing industrial setups, with a pre-installed DIN rail clip for easy installation. The device includes a 2-pin 24-57VDC terminal block for power input, ensuring reliable operation during power dips or outages, provided the power supply is from a Safety Extra-Low Voltage (SELV) circuit.

Manufactured in Taiwan and compliant with the Restriction of Hazardous Substances (RoHS) directive, the NGI-U05POE4 aligns with environmentally conscious standards. It is TAA-compliant, making it eligible for GSA Schedule and federal procurement contracts. The switch comes with a three-year limited warranty and includes a DIN rail mounting clip, owner's manual, and the device itself. Its high-performance uplinks and support for cost-efficient twisted pair cables up to 100 meters make it a versatile and reliable choice for expanding wired network capacity in small business, industrial, or home settings.

Features:

• Effectively increases available bandwidth on your network

• Quickly and easily set up a wired network with 5 networking ports

• With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience

• DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency

• The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed

• Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks

• Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
