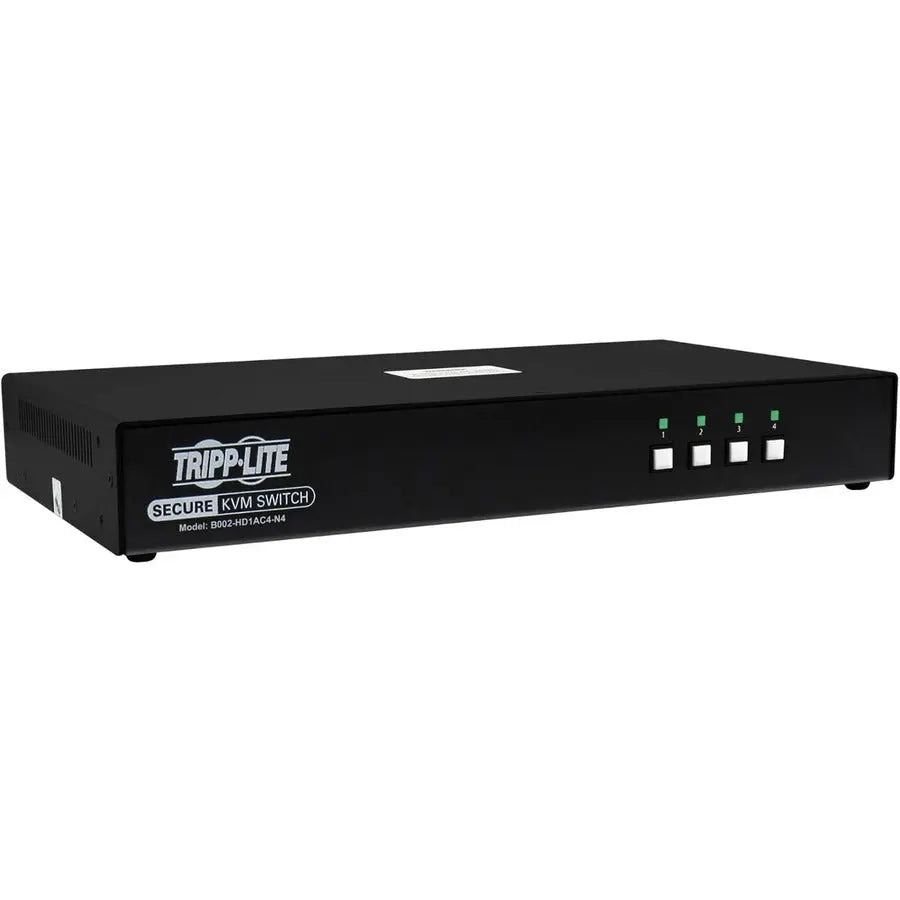

Eaton Tripp Lite Series B002-HD1AC4-N4 4-Port NIAP Certified Secure KVM Switch with DisplayPort and HDMI Support

Tripp Lite by Eaton Secure KVM Switch, 4-Port, Single Head, DP to HDMI (x4), 4K, NIAP PP4.0, Audio, CAC, TAA

The Eaton Tripp Lite Series B002-HD1AC4-N4 is a highly secure 4-port KVM switch designed for environments where data protection and integrity are paramount. It features four electrically isolated channels, preventing data transfer between connected computers at different security levels, making it ideal for government, military, financial, healthcare, and educational institutions. This switch supports crystal-clear Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, ensuring high-quality display performance for demanding applications.
Certified by NIAP to the latest Common Criteria Protection Profile for Peripheral Sharing Switches v4.0, this device guarantees rigorous security standards are met. Discrete processing paths to each system prevent data leakage, transfer, and crosstalk, while peripheral isolation ensures data flows only from device to host. Security features include firmware reprogramming protection, automatic keyboard buffer clearing, and exclusive control via physical buttons—eliminating risks associated with on-screen display (OSD) and hotkey commands.
The equipped Common Access Card (CAC) port supports biometric and smart card readers, including fingerprint scanners, for enhanced user authentication. Anti-tampering measures activate if the housing is opened, disabling the unit and providing visual tampering evidence through seals and LED alerts. Support for full USB device filtering maintains secure keyboard and mouse emulation during switching, with additional support for secure video emulation and EDID learning to prevent data leaks through DDC lines.
This TAA-compliant switch is suitable for federal procurement and GSA Schedule purchases, backed by a three-year limited warranty. It includes an external power supply with interchangeable heads for US, UK, EU, and Australian outlets, making it versatile for global deployment. Compatible with standard HDMI monitors, wired USB keyboards and mice, and computers with DisplayPort and USB ports, this device offers a comprehensive solution for secure, high-resolution computer sharing in sensitive environments.

Features:

• Safely and securely switches between 4 isolated computers with different security levels

• Certified to NIAP/Common Criteria Protection Profile for Peripheral Sharing Switches v4.0

• Common Access Card (CAC) port supports biometric and other smart card readers

• Supports UHD resolutions up to 4K at 60 Hz for crystal-clear video

• Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

• Includes external power supply with interchangeable heads for global use

• Anti-tampering protection disables the unit upon housing breach

• Supports secure video emulation and EDID learning for protected data transmission

• Supports wired USB mouse and keyboard only, with full emulation during switching

• 3-year limited warranty for peace of mind
