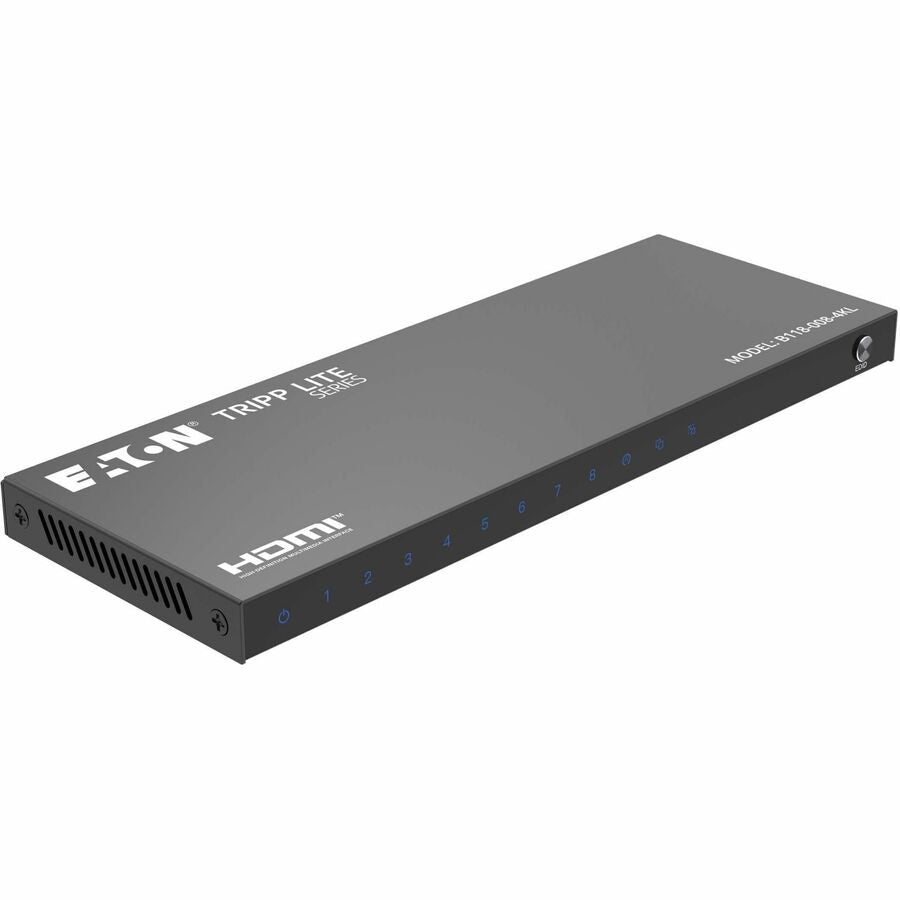

Eaton Tripp Lite Series B118-008-4KL 8-Port 4K HDMI Splitter with HDR and Dolby Vision

Eaton Tripp Lite series 8-Port HDMI Splitter - 4K 60 Hz HDR10 Multi-Resolution Output Push-Button EDID Control

Distribute 4K HDMI Video and Audio to Eight Displays

The Eaton Tripp Lite Series B118-008-4KL 8-Port HDMI Splitter sends one HDMI source signal to eight HDMI monitors, projectors, or televisions at the same time. Designed for classrooms, retail environments, digital signage, event setups, and other professional AV applications, this UHD distribution amplifier maintains signal integrity while allowing multiple displays to present the same content. Multi-resolution output supports installations that combine 4K and 1080p displays, helping each screen receive a compatible signal without complicated configuration.

4K HDR Performance with Flexible EDID Management

The B118-008-4KL supports 4K resolution up to 3840 x 2160 at 60 Hz, 36-bit Deep Color, 18 Gbps bandwidth, uncompressed 4:4:4 chroma subsampling, and LPCM 7.1-channel surround sound. HDR10 and Dolby Vision HDR provide richer contrast, brighter whites, deeper blacks, and vibrant color reproduction, while HDCP 2.2 support helps preserve 4K content resolution. Three front-panel EDID modes simplify setup: Auto Mode selects the best common video and audio settings, Copy Mode uses the configuration from Output 1, and Downscale Mode sends 1080p to compatible displays while maintaining 4K output for 4K displays. Built-in downscaling helps resolve display differences without requiring a laptop or additional software.

Compact Metal Design for Easy Installation

With a compact black metal enclosure, the Tripp Lite B118-008-4KL fits behind displays, inside AV cabinets, or in portable event kits. Plug-and-play operation enables quick installation with no software to download. For optimal 4K performance, use HDMI 2.0 cables up to 16 feet for the input and output connections. The included external power supply accepts 100-240V AC and comes with adapter plugs for North America, Europe, the United Kingdom, and Australia, making the splitter practical for international installations and mobile AV applications. The unit includes a three-year limited warranty.

Features:

• Supports 4K at 60 Hz with YUV 4:4:4 color, HDR10, and Dolby Vision
• Distributes one HDMI source to eight HDMI displays simultaneously
• Built-in downscaling supports mixed 4K and 1080p display installations
• Front-panel EDID control resolves resolution and audio compatibility conflicts
• 18 Gbps bandwidth supports uncompressed 4:4:4 chroma subsampling
• Supports HDCP 2.2, 36-bit Deep Color, and LPCM 7.1-channel audio
• Compact metal enclosure fits behind displays and in portable AV kits
• Plug-and-play operation requires no software installation
• External power supply includes international adapter plugs
• Designed for digital signage, classrooms, retail, events, and professional AV systems
