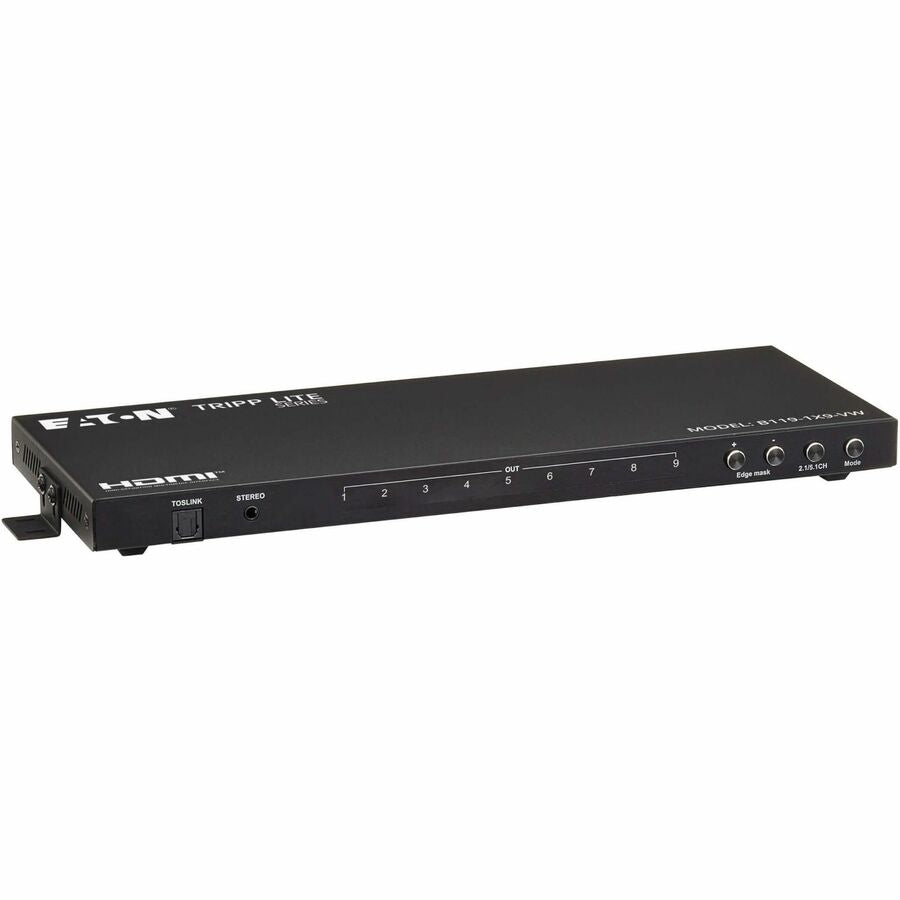

Eaton Tripp Lite Series B119-1X9-VW 4K HDMI Video Wall Controller and Splitter

Build a Flexible 4K-to-1080p Video Wall

The Eaton Tripp Lite Series B119-1X9-VW HDMI video wall controller captures, converts, routes and distributes video from one 4K HDMI source to as many as nine HDMI monitors or HDTVs. It creates one large, visually unified 1080p image for retail displays, concert venues, restaurants, bars, hotels, offices, houses of worship and other commercial or presentation environments. By working with existing 1080p displays, the B119-1X9-VW can help extend the life of installed equipment without requiring an immediate display upgrade.

Support for 13 Video Wall Configurations

The B119-1X9-VW features one HDMI input supporting UHD video up to 4K at 30 Hz and nine HDMI outputs supporting 1080p at 60 Hz. Choose from 13 horizontal or vertical layouts, including 3x3, 2x4, 2x3, 4x2, 3x2, 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1 and 1x1. Configuration is available through front-panel buttons, the included IR remote or RS-232 commands. On-screen display readouts help identify the active mode and port information for connected displays.

High-Quality Video and Custom Image Control

This Tripp Lite series controller supports 1080p video at 60 Hz with LPCM, Dolby AC3 and DTS audio. HDCP 1.3/1.4 compatibility helps maintain protected 4K content, while uncompressed 4:4:4 chroma subsampling supports detailed PC graphics, gaming and HDTV-as-monitor applications. Edge masking lets you adjust picture borders by adding or removing pixels, and compatible video wall modes can be rotated in 180-degree increments for installation flexibility.

Simple Installation and Reliable Operation

The B119-1X9-VW provides plug-and-play operation without software. Connect a compatible 4K source and up to nine 1080p displays using user-supplied HDMI cables, then select the desired layout. Wall-mounting hardware, an IR remote, a USB-A to Micro-B data cable, an external power supply with four international plug adapters, rubber feet and installation instructions are included. Intelligent memory retains the previous configuration after power is removed. The black polycarbonate unit carries a three-year limited warranty.

Features:

• Captures, converts, routes and distributes 4K audio/video to a 1080p video wall
• Supports one HDMI input with UHD resolutions up to 4K at 30 Hz and 4:4:4 chroma subsampling
• Provides nine HDMI outputs for creating video walls with up to 13 layout configurations
• Supports 1080p at 60 Hz with LPCM, Dolby AC3 and DTS audio
• Edge masking allows picture border adjustments by adding or removing pixels
• Compatible video wall modes support 180-degree image rotation
• Allows control through front-panel buttons, an IR remote or RS-232 commands
• Plug-and-play operation requires no software for quick installation
• Includes wall-mounting hardware and an external power supply with four international plug adapters
• Intelligent memory retains configuration settings when powered off
