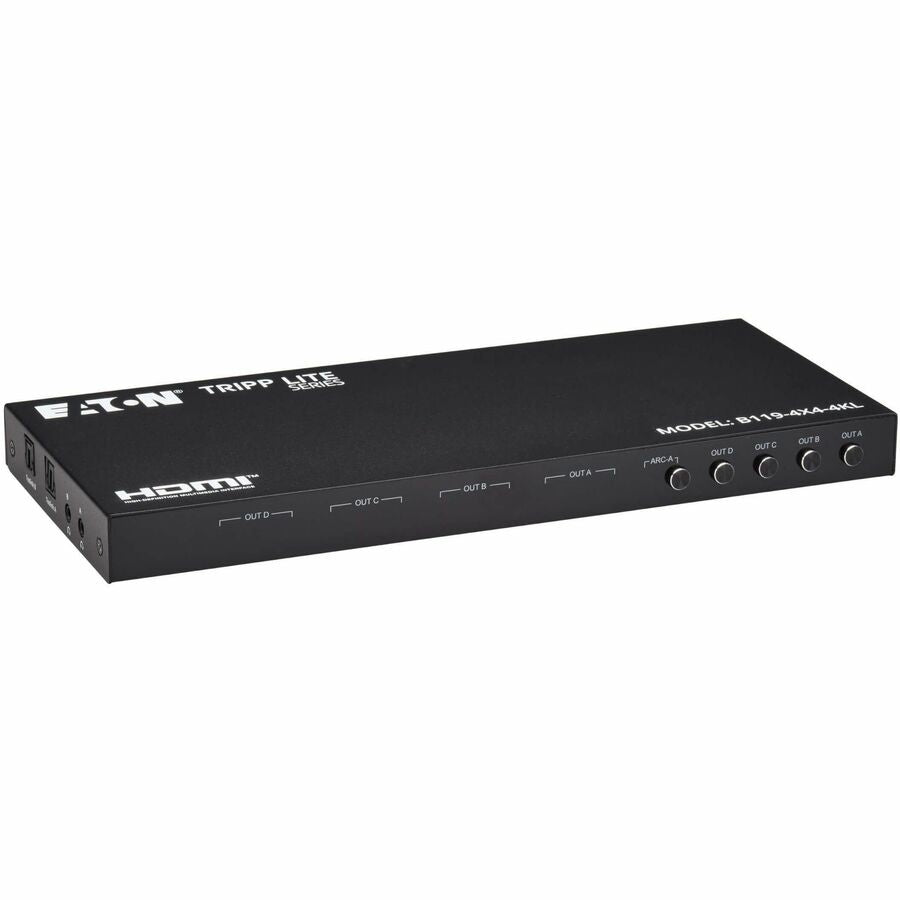

Eaton Tripp Lite Series B119-4X4-4KL 4K 4x4 HDMI Matrix Switcher with HDR and Scaling

Tripp Lite series B119-4X4-4KL Audio/Video Switchbox

4K HDMI Matrix Switcher for Multi-Display Applications

The Eaton Tripp Lite Series B119-4X4-4KL 4x4 HDMI matrix switcher routes up to four HDMI video sources to four HDMI displays, making it well suited for classrooms, retail signage, hotel lobbies, restaurants, event venues, houses of worship, home theaters and other multi-display environments. Connect laptops, media servers, cable or satellite receivers and gaming consoles, then send the same source to every display or assign different sources to individual displays.

Flexible 4K Video and Audio Distribution

The B119-4X4-4KL supports Ultra HD resolutions up to 4096 x 2160 at 60 Hz with 4:4:4 chroma subsampling for clear video, PC applications and gaming. HDR delivers richer contrast and an expanded color range, while HDCP 2.2 support helps preserve 4K content quality. Integrated scaling allows 4K sources to display at their native resolution on compatible monitors while downscaling for older 1080p displays, allowing mixed-resolution systems to operate together.

Convenient Control and Quick Installation

Choose sources and outputs using the front-panel push buttons, included IR remote control or RS-232 serial commands. EDID DIP switch controls simplify configuration and help optimize display compatibility. Audio can be extracted and switched through the 3.5 mm stereo and TOSLINK outputs, supporting LPCM along with compressed formats including DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD. HDMI cables up to 16 feet can support 4K at 60 Hz, while cables up to 32 feet support 4K at 30 Hz and 1080p. The included power supply and international plug adapters support installation in multiple regions. The B119-4X4-4KL includes a three-year limited warranty.

Features:

• Supports UHD video up to 4K at 60 Hz with 4:4:4 chroma subsampling
• Delivers HDR for enhanced contrast and expanded color accuracy
• Routes up to four HDMI sources to four HDMI displays
• Provides multi-resolution scaling for mixed 4K and legacy displays
• Supports source selection through front-panel buttons, IR remote control and RS-232 commands
• Extracts and switches audio through 3.5 mm stereo and TOSLINK outputs
• Supports LPCM, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD audio
• Includes EDID DIP switch controls for simplified setup and display management
• Includes IR remote control, external power supply, international plug adapters and mounting feet
• Complies with Restriction of Hazardous Substances (RoHS) requirements
