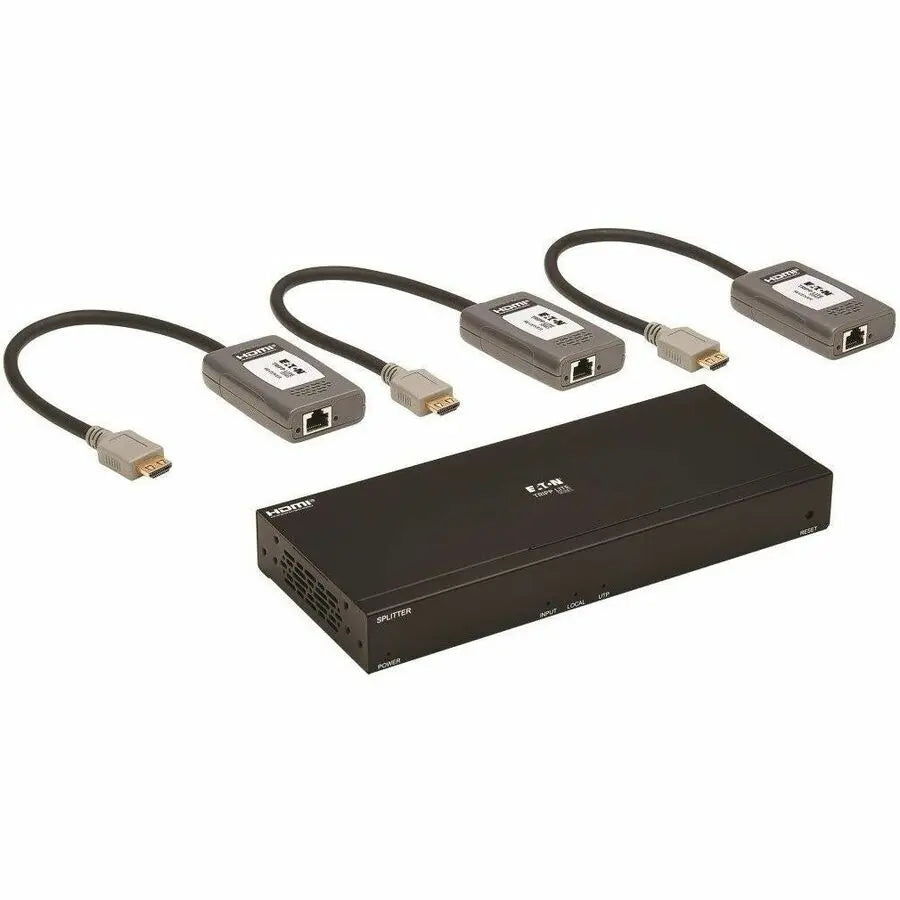

Eaton Tripp Lite Series B127A-004-BHPH3 HDMI Over Cat6 Extender Kit for 4K Video and Audio Transmission

Eaton Tripp Lite Series 4-Port HDMI over Cat6 Extender Kit, Splitter/3x Pigtail Receivers - 4K 60 Hz, HDR, 4:4:4, PoC, 230 ft. (70.1 m), TAA

The Eaton Tripp Lite Series B127A-004-BHPH3 HDMI Over Cat6 Extender Kit is engineered to deliver high-quality 4K video and multi-channel audio over long distances, making it ideal for digital signage, conference rooms, and other professional AV applications. This rack-mountable kit includes a 4-port HDMI splitter and three receivers, allowing simultaneous connection to four displays up to 230 feet away using user-supplied Cat6 cables. By integrating optional B127A-010-H repeaters, the system can extend signals up to 400 feet, providing flexibility for large venues and complex setups. This capability ensures reliable, crystal-clear 4K resolution at 60 Hz with support for 4:4:4 chroma subsampling, HDR, and Dolby TrueHD audio, enhancing visual fidelity for immersive experiences. The system's compliance with HDMI 2.0 and HDCP 2.2 standards guarantees seamless streaming of high-definition content from sources like streaming services and Blu-ray players. The local HDMI port on the transmitter allows monitoring of the extended signal on a 4K display, provided it supports 4K at 60 Hz. Additionally, Power over Cable (PoC) technology supplies power to the receivers via Cat6 cables, eliminating the need for bulky external power adapters and enabling flexible placement of receivers without proximity to power outlets. The kit’s plug-and-play design simplifies setup, with mounting hardware included for wall, pole, or rack installation. Its TAA compliance makes it suitable for GSA Schedule purchases, ensuring suitability for federal procurement. Overall, this extender kit offers a professional solution for high-resolution AV distribution in environments requiring extended reach and reliable, high-quality signals.

Features:

• Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0

• Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy

• Combines with optional B127A-010-H repeaters to extend signal to 400 ft.

• Power over Cable (PoC) technology provides power to receivers via Cat6 cable

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

• 1-year limited warranty
