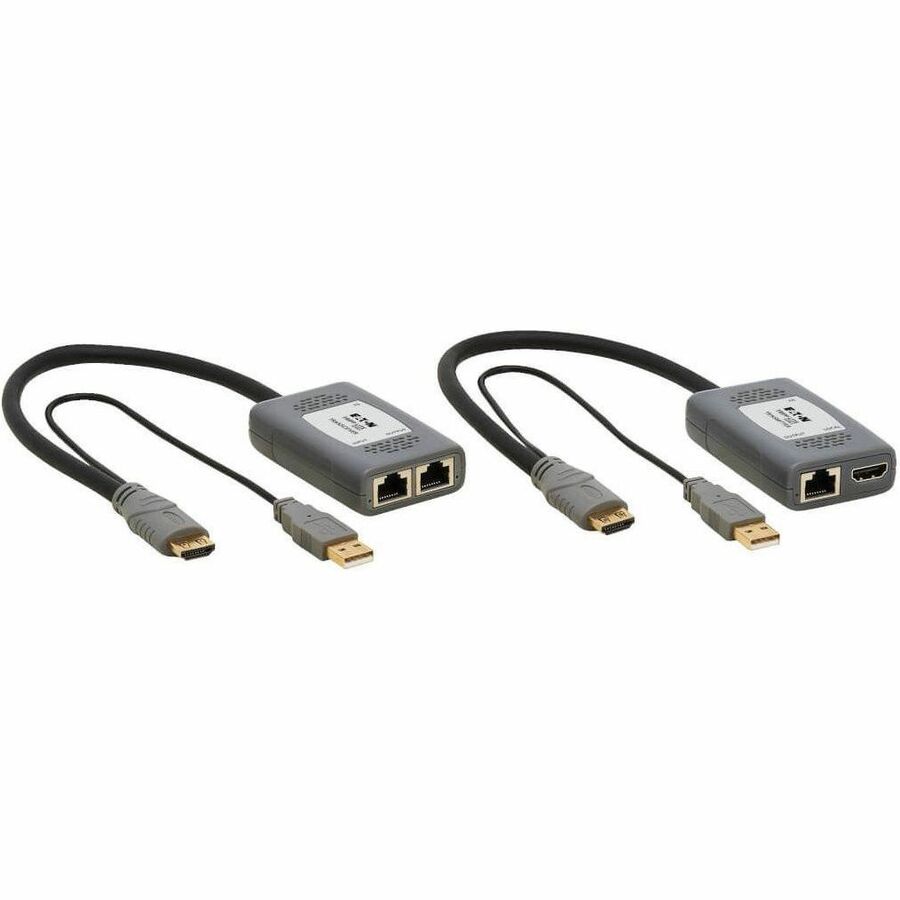

Eaton Tripp Lite Series B127U-111-PHPH 4K HDMI Over Cat6 Extender Kit with Pigtail Transmitter and Receiver

Eaton Tripp Lite Series 1-Port HDMI over Cat6 Extender Kit, Pigtail Transmitter/Receiver, 4K 60 Hz, HDR, 4:4:4, 230 ft. (70.1 m), TAA

The Eaton Tripp Lite Series B127U-111-PHPH is a high-performance HDMI over Cat6 extender kit designed for digital signage, conference rooms, classrooms, and various professional AV applications. This complete transmitter and receiver system enables seamless extension of 4K video signals up to 230 feet (70.1 meters) using standard Cat6 cabling, making it ideal for situations where source and display are separated beyond the reach of conventional HDMI cables. The compact design features one-foot pigtails on both units, facilitating straightforward installation even in tight spaces, perfect for retail environments, houses of worship, hotels, and trade show displays.

Supporting ultra high-definition resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, the B127U-111-PHPH ensures crystal-clear image quality with vibrant color reproduction. It transmits uncompressed DTS-HD, Dolby TrueHD, and 7.1-channel digital audio, providing an immersive experience for multimedia and presentation content. Additionally, the kit supports High Dynamic Range (HDR) for richer contrast and more vivid colors, making visuals stand out with enhanced brightness and blacks. Compliance with HDCP 2.2 ensures compatibility with protected 4K content, while support for 4:4:4 chroma subsampling guarantees optimal color fidelity, especially for PC gaming or professional graphics work.

The extender kit offers flexibility with multi-resolution support, allowing simultaneous connection of different display types at their maximum resolutions—such as a new 4K/60 Hz TV, an older 1080p monitor, or a 4K/30 Hz display—without resolution conflicts. The local HDMI port on the transmitter supports 4K @ 60 Hz for direct monitoring, provided the local display also supports this resolution. Setup is straightforward with plug-and-play operation; the units are powered via USB-A connections—either through a power adapter or a display’s USB port—and connected with user-supplied Cat6 cables. The system is TAA-compliant, making it eligible for government procurement under GSA schedules, and is supported by a one-year limited warranty from Eaton Corporation.

Designed for versatile, professional AV setups, this extender kit can be integrated into daisy-chain configurations with additional HDMI or DisplayPort receivers, extending video signals up to a total of 920 feet (280 meters). Its multi-resolution support and easy installation make it suitable for digital signage, multimedia presentations, and advanced home or business AV networks, providing reliable, high-quality signal transmission over considerable distances without loss of fidelity.

Features:

• Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) for crystal-clear video quality

• Compact transmitter and receiver units are USB-powered through display or power adapters for easy installation

• Supports multi-resolution output, enabling mixing of different display resolutions within a single setup

• Plug-and-play operation requires no software, allowing for quick and straightforward installation

• TAA-compliant, suitable for GSA Schedule and federal procurement

• Compatible with source devices featuring DisplayPort output, such as Blu-ray players, PCs, and media servers

• Supports display devices with DisplayPort input, including HDTVs, projectors, and monitors
