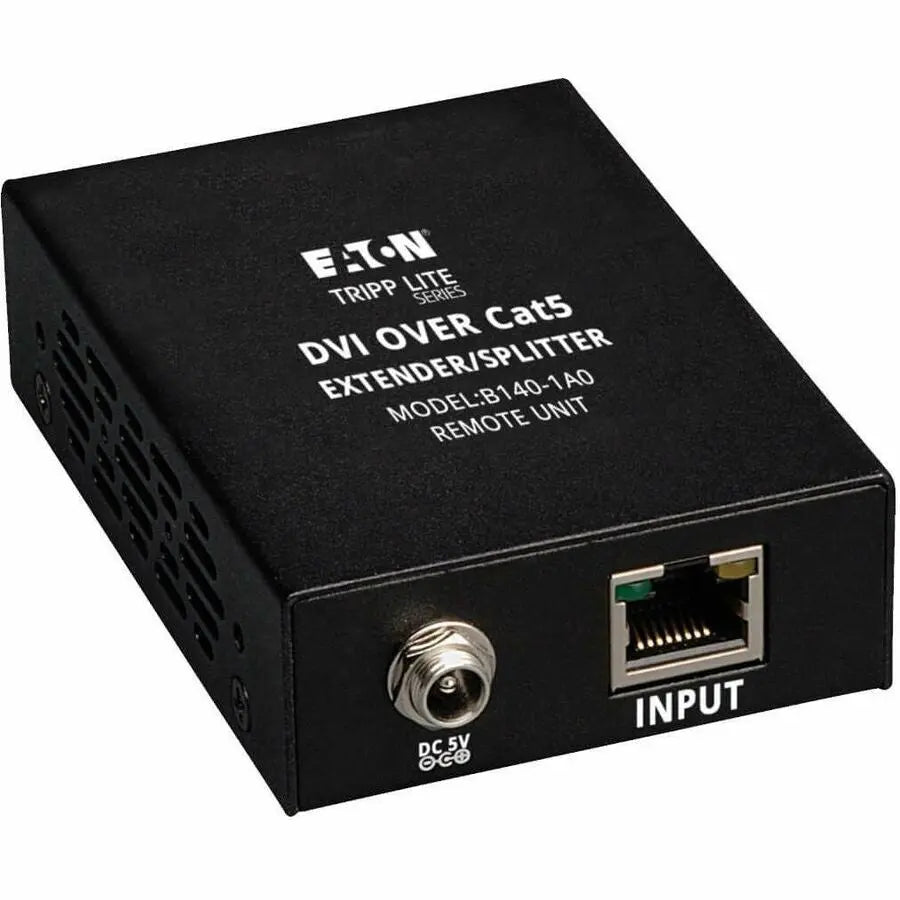

Eaton Tripp Lite Series B140-1A0 DVI over Cat5 Active Extender Remote Unit for Video Transmission up to 200 ft

Eaton Tripp Lite Series DVI over Cat5/6 Active Extender, Box-Style Remote Receiver for Video, DVI-I Single Link, Up to 200 ft. (60 m), TAA

The Eaton Corporation B140-1A0 is a high-performance DVI over Cat5 active extender remote unit designed to extend DVI-D Single-Link signals up to 200 feet using a single Cat5e/6 patch cable. Compatible with all operating systems and requiring no additional software or drivers, this plug-and-play device simplifies installation and delivers reliable video transmission for professional and commercial applications. It features a built-in equalization control that allows users to fine-tune the video image for optimal clarity, making it suitable for various display environments. The B140-1A0 is an essential component for extending high-definition video signals over longer distances without compromising resolution or image quality. It is recommended to use 24AWG solid wire Cat5e/6 cables, such as Tripp Lite's N202-Series, to achieve the maximum distance and resolution. Supporting resolutions up to 1920 x 1080 @ 60Hz, it ensures crisp, clear images even at extended lengths. The device is compliant with the Federal Trade Agreements Act (TAA), making it suitable for GSA Schedule purchases and government projects. The B140-1A0 can be further expanded by connecting optional B140-110 repeaters, allowing users to add up to four monitors per channel—three repeaters and one active receiver. This modular approach enables flexible configurations, supporting 1920 x 1080 @ 60Hz signals up to 125 feet between repeaters or 1024 x 768 @ 60Hz up to 175 feet. Its compact design measures approximately 1 inch high, 2.5 inches wide, and 3.6 inches deep, making it easy to install in various settings. The package includes the remote receiver, mounting hardware, an equalization adjustment screwdriver, an external power supply, and an owner's manual. Whether used in conference rooms, digital signage, or broadcast environments, the Eaton Tripp Lite B140-1A0 provides a reliable solution for extending high-definition video signals over long distances with ease and precision.

Features:

• Plug and play, no software or drivers required

• s a built-in Equalization control for adjustment of the video image

• Compatible with all operating systems

• Can further expand the range and number of monitors by adding B140-110 repeaters

• Use 24AWG, solid wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution

• Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.

• Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz

• For use with B140-002 or B140-004 extender/splitter transmitter units
